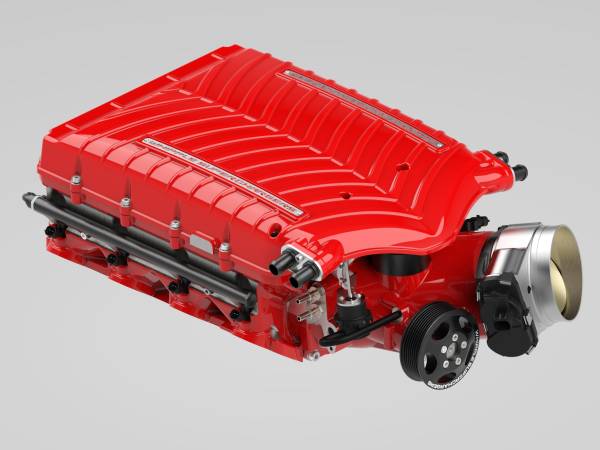

Chevy / GM LT1 and LT4 Whipple Gen 6 3.0L Hot Rod Supercharger Kit

CHEVY / GM LT1 AND LT4 WHIPPLE GEN 6 3.0L
HOT ROD SUPERCHARGER KIT

Unleash the full potential of your Chevy LT1 or LT4 engine with Whipple's Gen 6 3.0L Inverted Hot Rod Supercharger Kit - engineered for LT-based crate engine builds, swaps, custom hot rods, and high-performance race applications.

The Gen 6 3.0L combines Whipple's latest twin-screw rotor technology with a compact inverted layout tailored specifically for LT platforms. With a 112 mm front-feed inlet, advanced dual-pass, dual-intercooler architecture, optional port injection, and multiple lid configurations, this system delivers exceptional airflow, cooling capacity, and power potential.

KEY FEATURES

• Gen 6 3.0L Twin-Screw Supercharger: High-efficiency rotor profile engineered for maximum horsepower.
• 112 mm Front-Feed Inlet: Supports high-RPM, high-boost, and large-displacement builds.
• Patented Dual-Pass Intercooling: Air and water pass through twice for rock-solid thermal control.
• Optional Port Injection: Pre-drilled provisions available for high-demand fueling systems.
• Inverted LT Architecture: Swap-friendly fitment ideal for hot rod projects and tight engine bays.
• -12 AN Billet Coolant Fittings: Included for inverted-system coolant routing.

WHAT'S INCLUDED

• 3.0L Whipple Gen 6 twin-screw supercharger (inverted)
• Patented dual air-to-water intercoolers (dual pass air & water)
• Billet -8AN fuel rails (optional on select models)
• -12 AN billet coolant fittings
• All required mounting hardware

FITMENT & REQUIREMENTS

• Designed for LT1 and LT4 crate engines
• Compatible with 2016-2024 Camaro LT1 or 2017-2024 ZL1 belt systems
• No pulley included (sold separately)
• Inlet orientation referenced from driver's seat position

THIS PRODUCT MAY BE USED SOLELY ON VEHICLES USED IN SANCTIONED COMPETITION WHICH MAY NEVER BE USED UPON A PUBLIC ROAD OR HIGHWAY.

LEGAL IN CALIFORNIA ONLY FOR RACING VEHICLES WHICH MAY NEVER BE USED, OR REGISTERED OR LICENSED, FOR USE UPON A HIGHWAY.

IT IS THE RESPONSIBILITY OF THE INSTALLER AND/OR USER OF THIS PRODUCT TO ENSURE THAT IT IS USED IN COMPLIANCE WITH ALL APPLICABLE LAWS AND REGULATIONS.

THIS POLICY ONLY APPLIES TO INSTALLERS AND/OR USERS WHO ARE LOCATED IN THE UNITED STATES. CUSTOMERS IN OTHER COUNTRIES SHOULD FOLLOW THEIR LOCAL LAWS AND REGULATIONS.
