Whipple Bypass Assembly - 180 Degree Right - 1.30 Inch Dual Port - BA-1010

Whipple Bypass Assembly
180 Degree Right - 1.30 Inch Dual Port - BA-1010

This Whipple 180 degree right bypass assembly is designed for compatible supercharger systems where the correct bypass valve configuration is required for proper airflow control, drivability, and supercharger efficiency. Since 1987, Whipple Superchargers has focused on twin-screw supercharger technology for high-performance applications, with products proudly designed, manufactured, and assembled at the Whipple Superchargers facility in Fresno, California, USA.

In a forced-induction system, the bypass valve plays an important role in reducing parasitic loss during low-load and high-vacuum conditions. When vacuum is high, the vacuum-operated actuator opens the bypass valve to help equalize pressure through the system. When boost is required, vacuum decreases and the bypass valve closes, allowing pressure to build and move toward the cylinders.

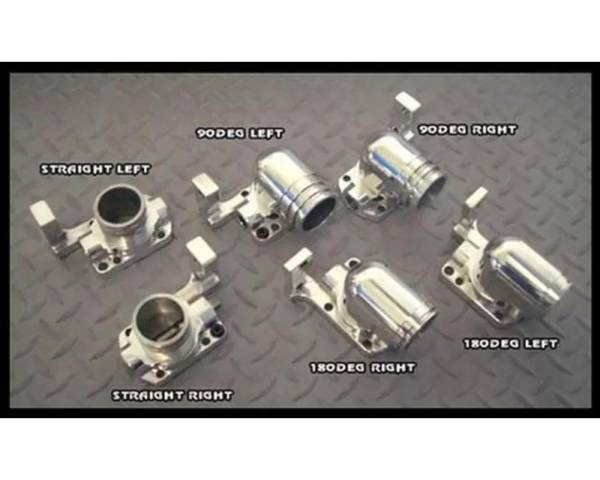

Whipple bypass assemblies are used for remote bypass applications where space limitations, plenum shape, manifold layout, or packaging requirements call for a remote-mounted bypass valve. This configuration uses a four-bolt flange and should be matched to the correct bypass size, port style, side, angle, and application before installation.

• Whipple bypass assembly
• Configuration: 180 degree right
• Bypass size: 1.30"
• Port configuration: Dual port
• Vacuum-operated bypass valve design
• Helps reduce parasitic loss during high-vacuum operating conditions
• Supports efficient supercharger operation and improved drivability when properly installed
• Designed for compatible remote bypass supercharger applications
• Part Number: BA-1010
