VTT-FAB S58 Factory Control EWG Top Mount Single Turbo kit

VTT-FAB Performance Turbo Kit (Top Mount)

For BMW G8X / F9X S58 Platforms

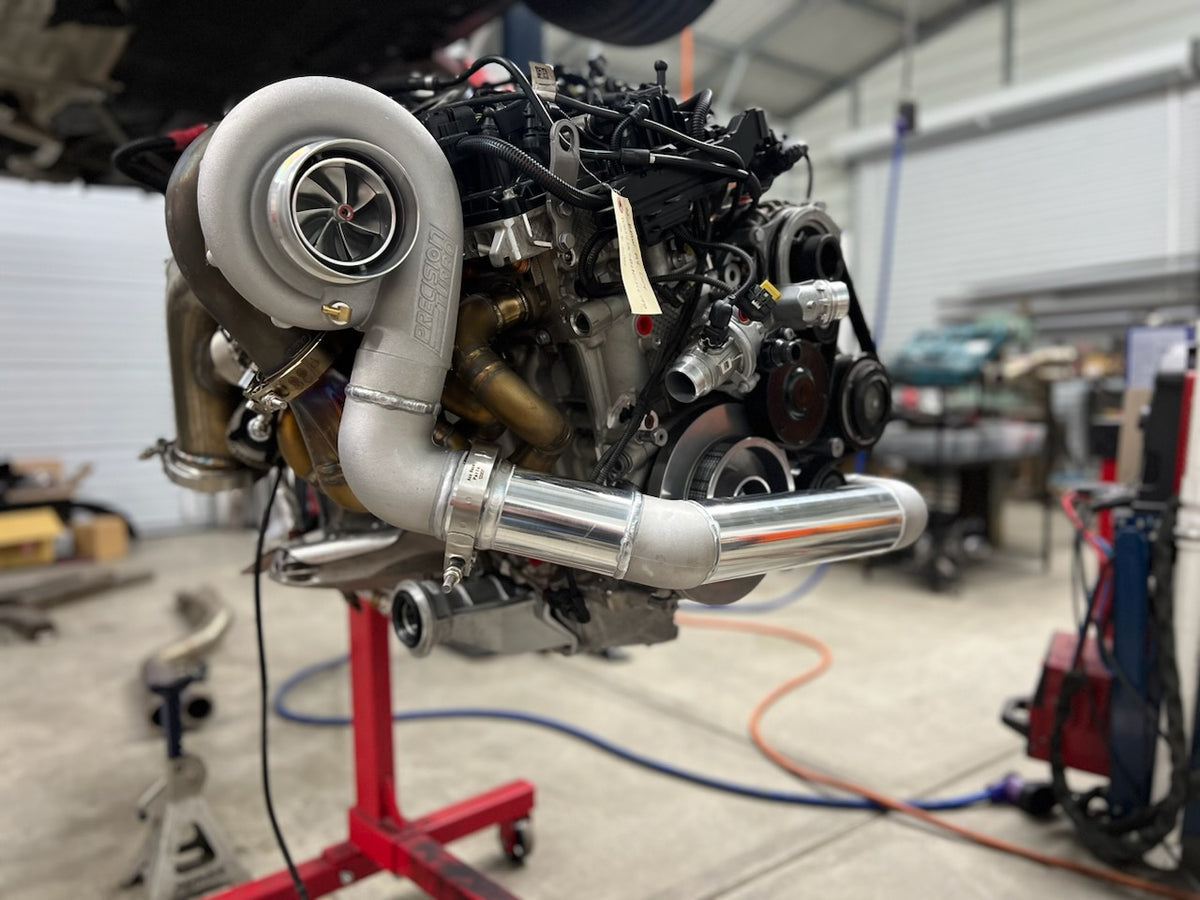

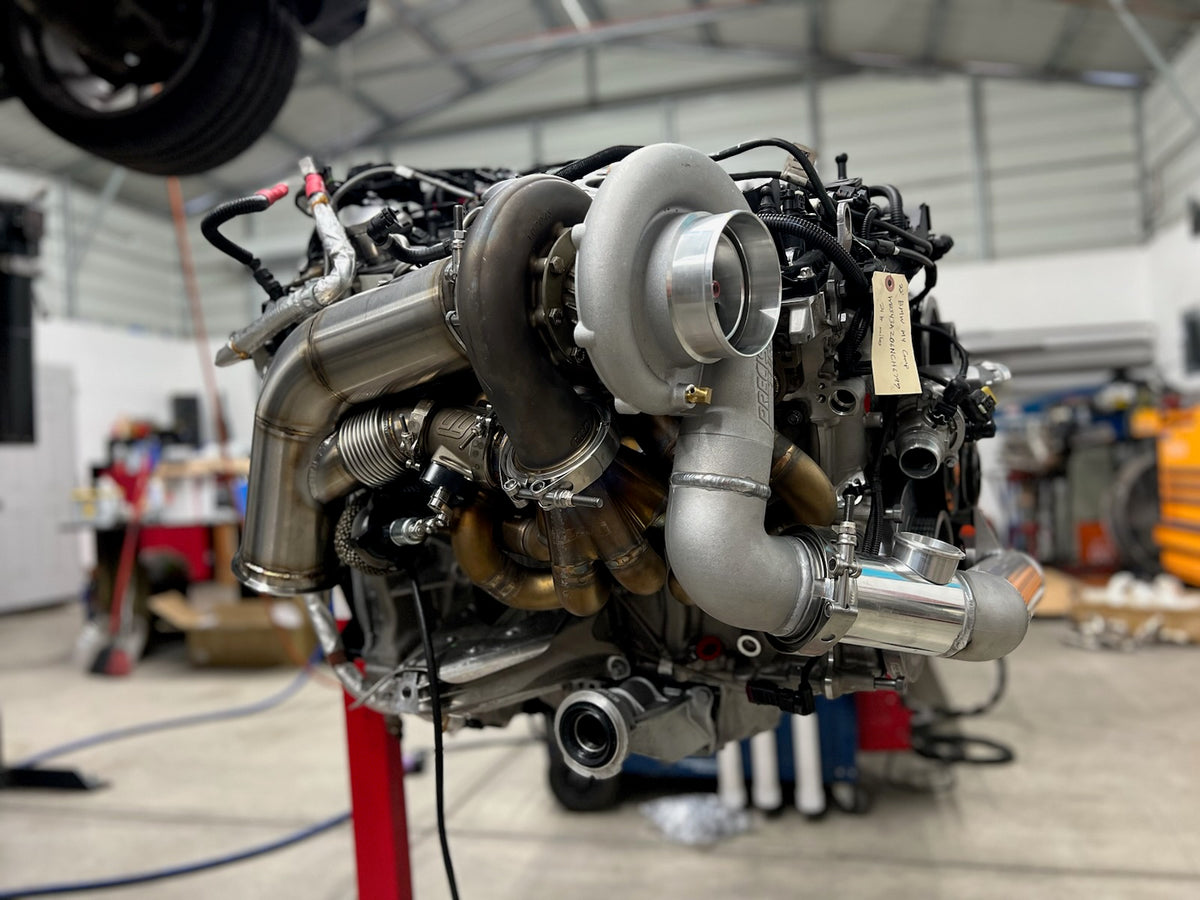

VTT-FAB is proud to introduce the premiere top-mount single turbo system for the BMW G8X and F9X S58 platforms. Built 100% in-house at our Hayward, CA facility with only the finest components, this kit is engineered to deliver unmatched performance, durability, and simplicity.

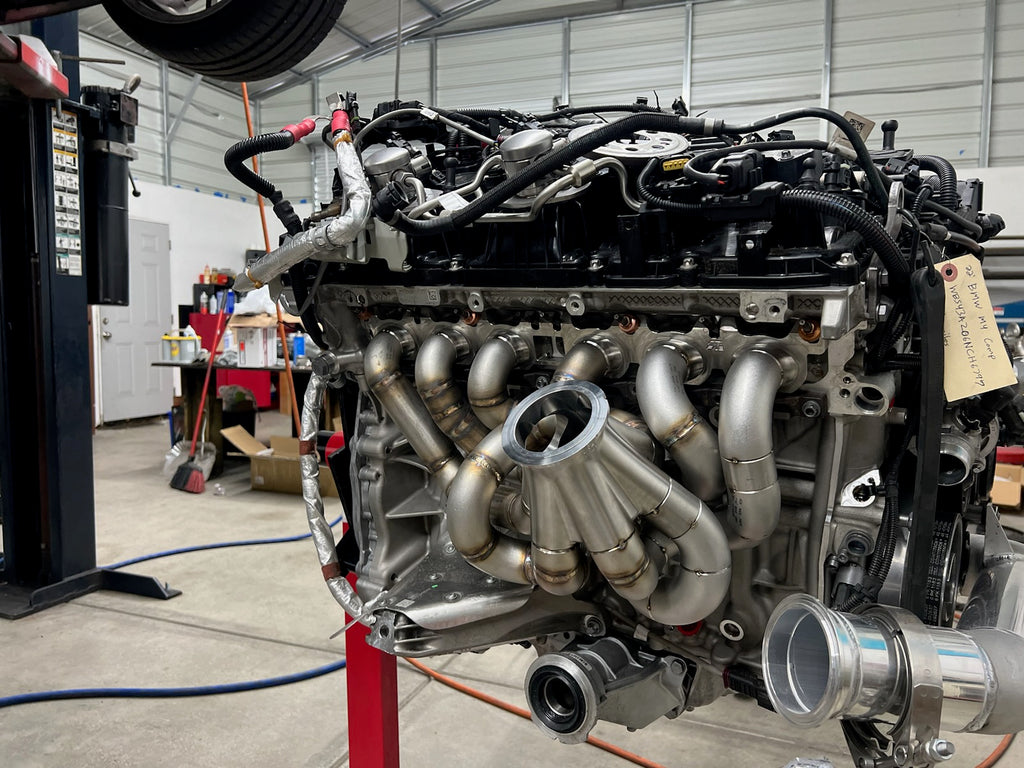

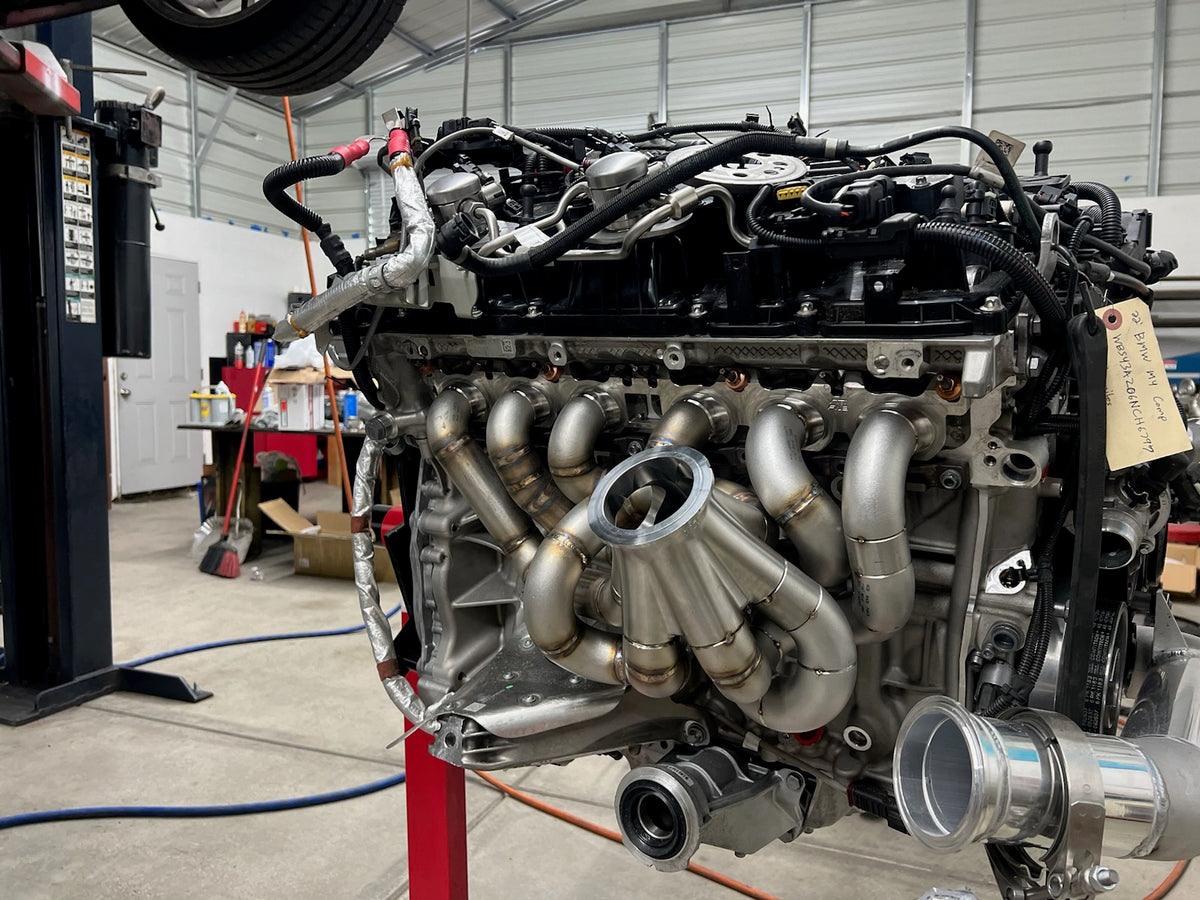

At the heart of the system is a hand-fabricated 321 stainless manifold with billet flanges, designed for maximum flow and long-term reliability. Combined with our revolutionary factory-controlled external wastegate system (Turbosmart 60mm Straight Gate), you gain complete boost control directly through your OEM ECU tune — no external boxes, no MAC solenoids, and no extra vacuum/boost lines. Simply reuse your factory actuator with our adapter, and you’re ready for seamless plug-and-play operation with a true boost range from 0 PSI up to the limits of your turbo.

⚠️ Important Notes:

• If your kit shows out of stock, email for current build times.

• Every VTT-FAB kit is built to order. Once fabrication begins, orders cannot be canceled — please order carefully.

Features

• Fully fabricated in-house (Hayward, CA) with U.S.-sourced parts

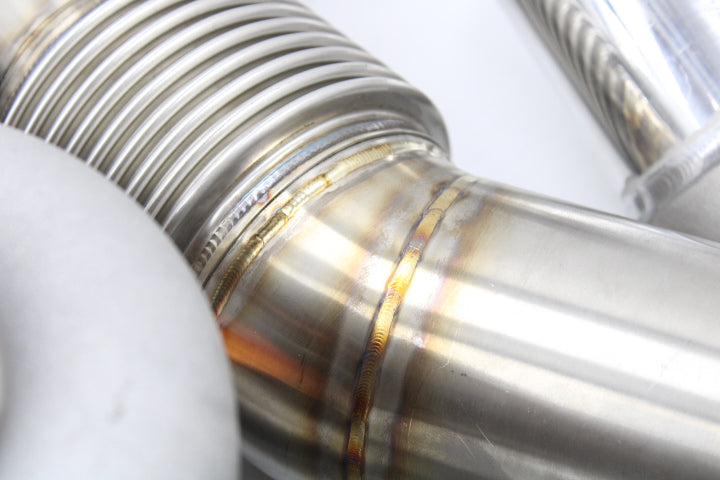

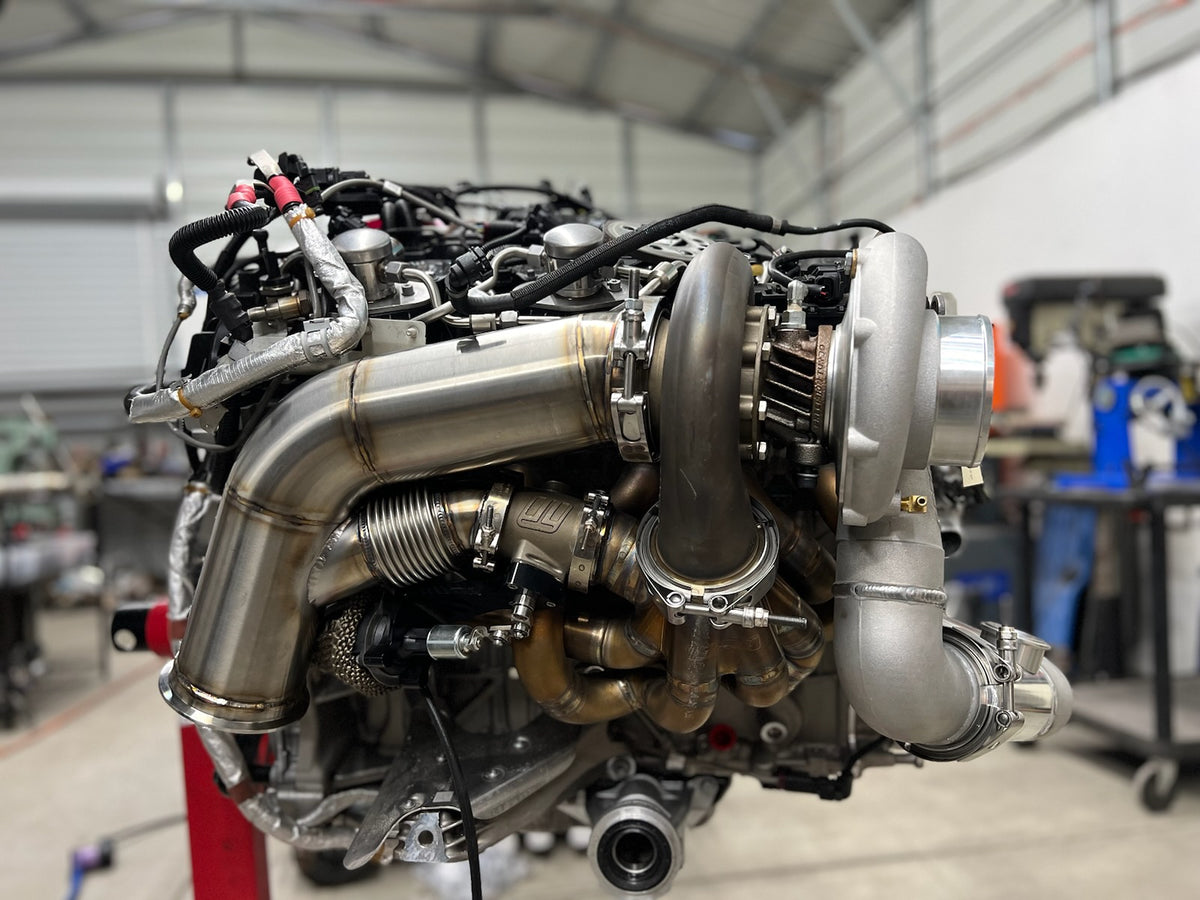

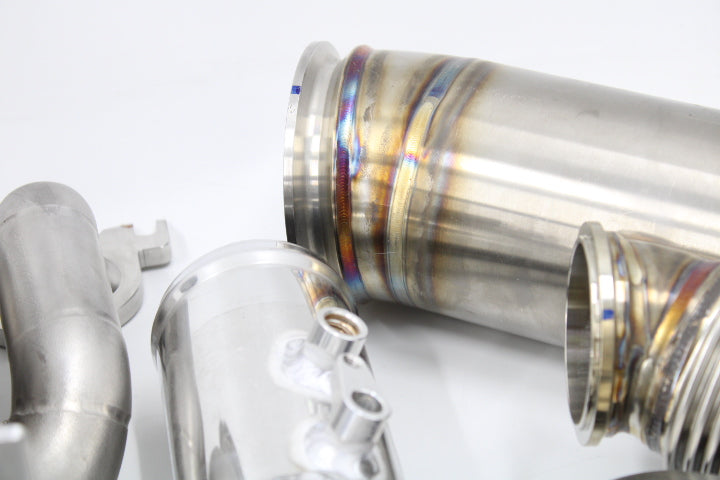

• Full 4″ TIG-welded downpipe (factory-style termination or race with optional turn-down)

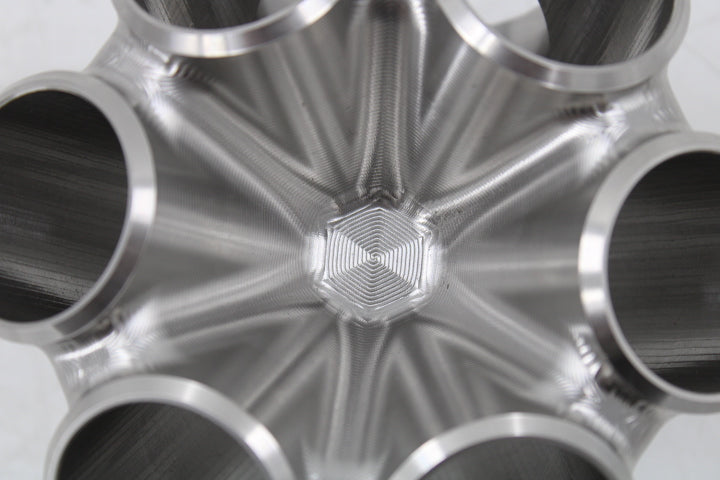

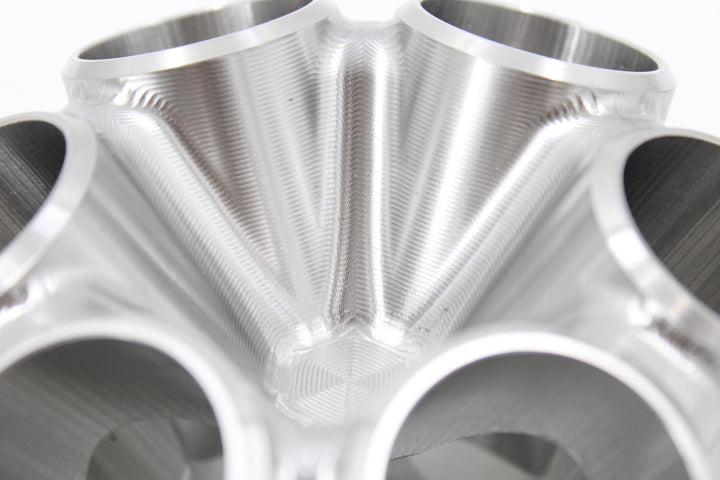

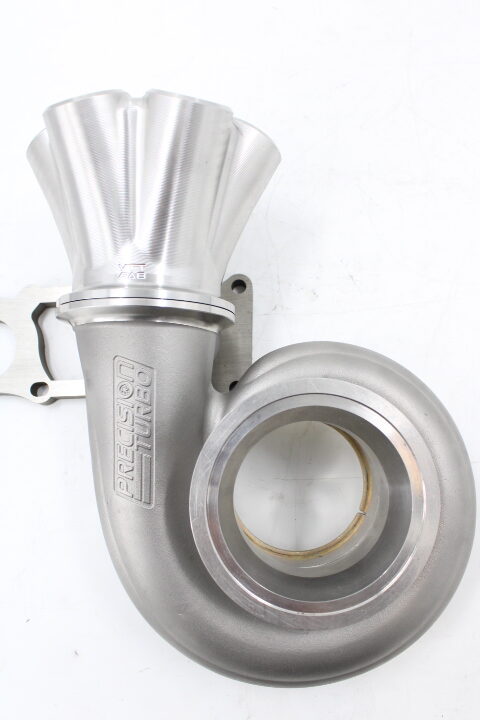

• VTT-FAB billet 6-into-1 collector

• Factory-controlled Turbosmart straight gate system for true plug-and-play tuning

• 321 stainless weld Els for maximum heat resistance & durability

• 1.25″ primaries for lightning-fast spool and high exhaust velocity

• Zero external boost control needed

• Iconic 6-into-1 turbo sound — unlike divided housings

• Charge pipe flanged for Turbosmart or Tial BOV (block-off optional)

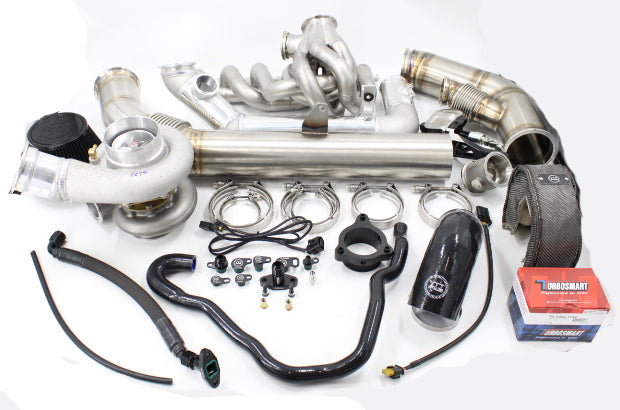

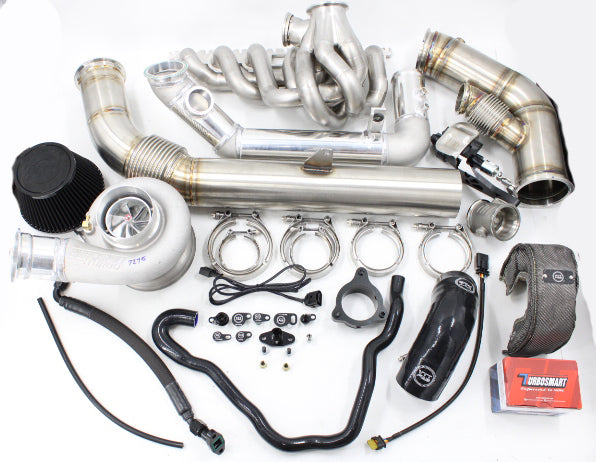

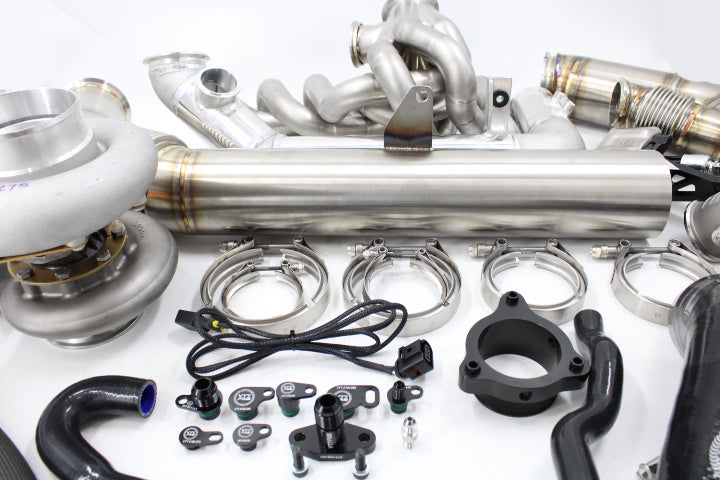

Kit Contents

• Manifold (x1)

• Downpipe with clamps (x1)

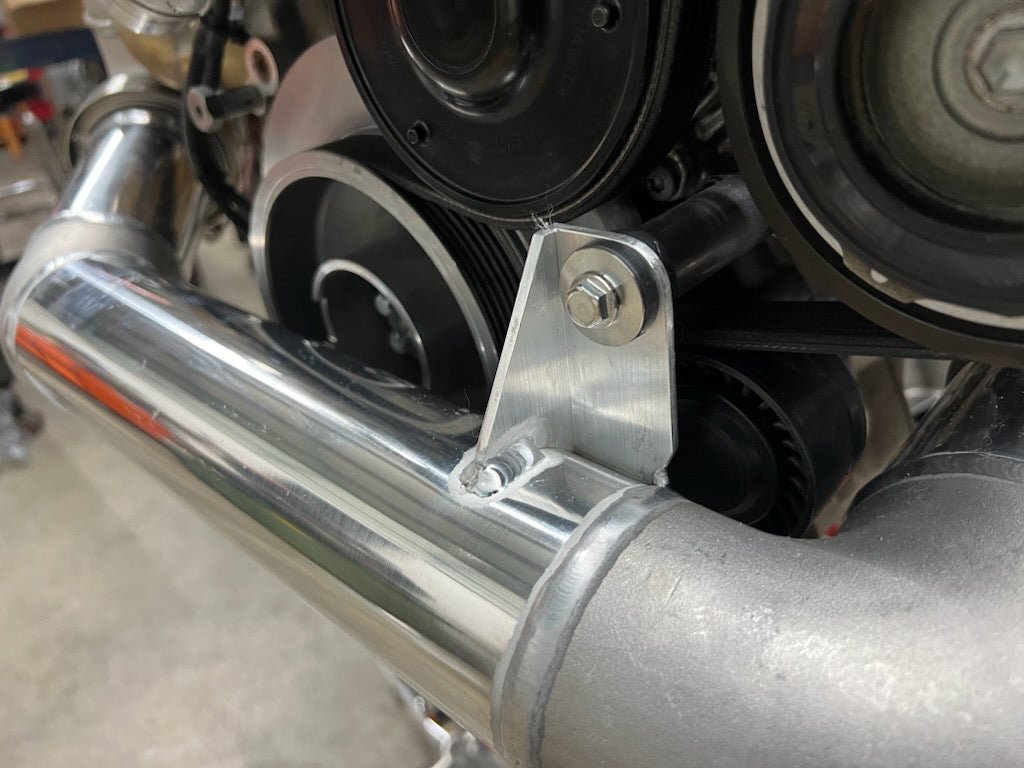

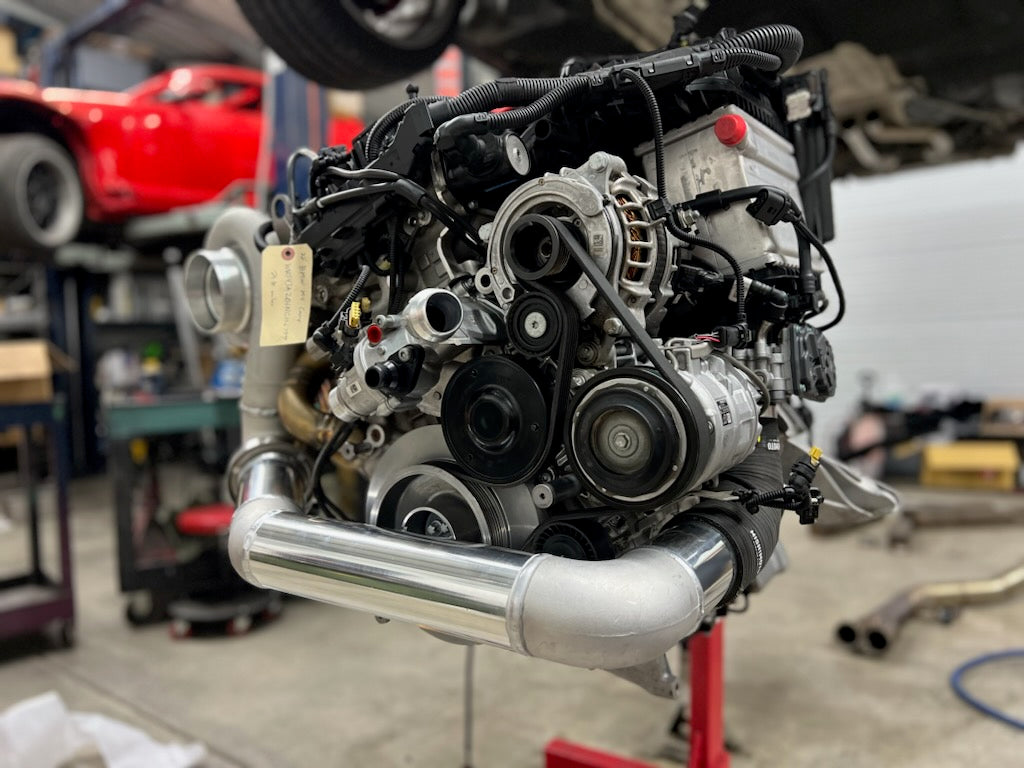

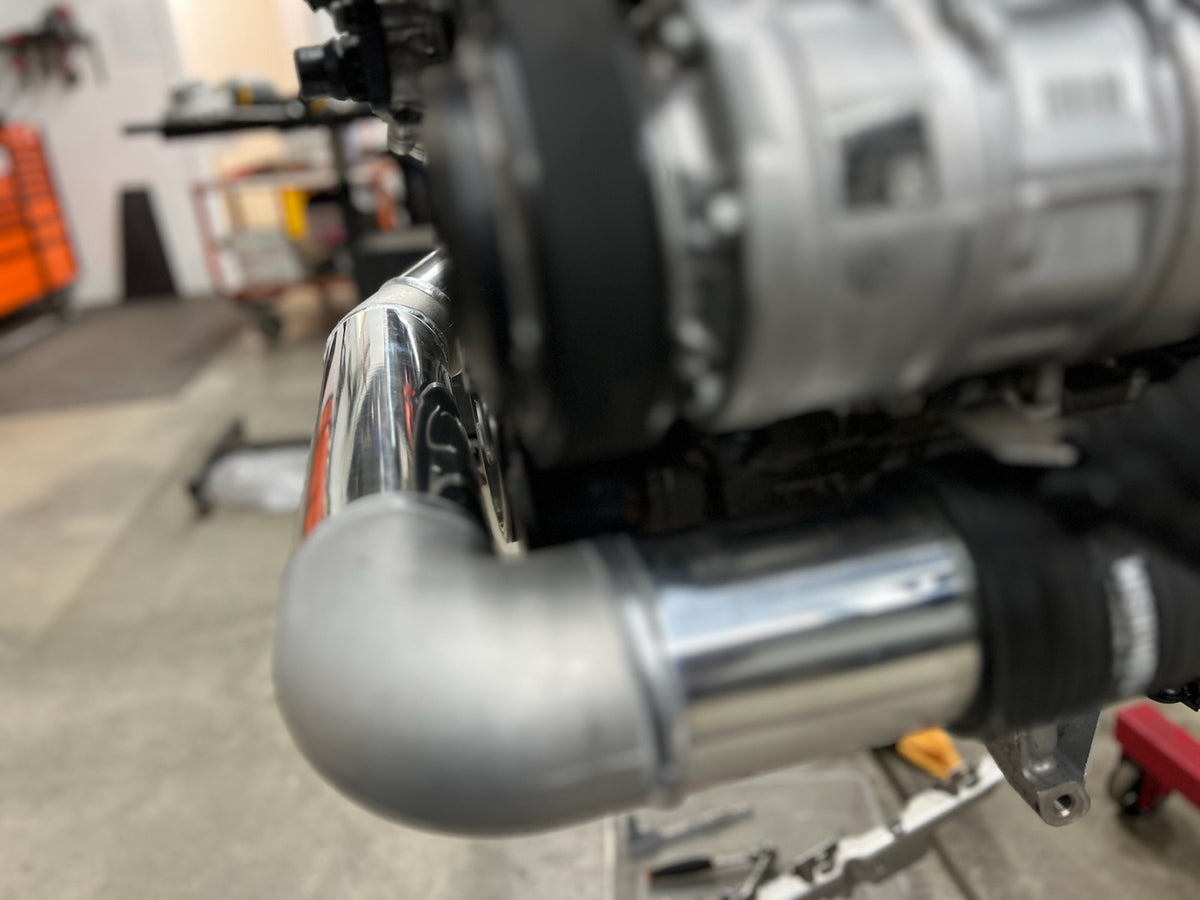

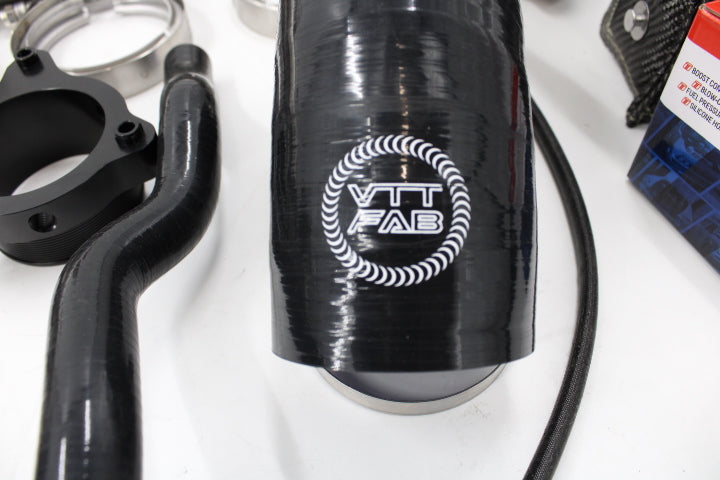

• Charge pipe (x1)

• Charge pipe hose (x1)

• Charge pipe worm clamps (x2)

• Oil feed line (x1)

• Oil drain line (x1)

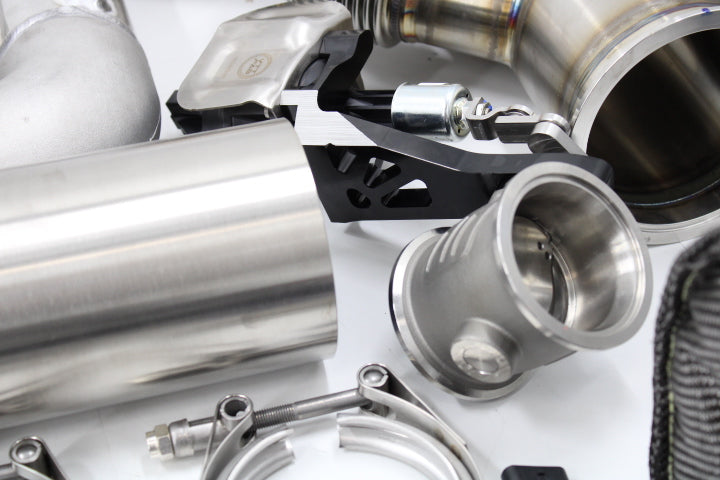

• Wastegate setup with 2x V-band clamps

• Wastegate wiring harness extension (x1)

• Wastegate arms & clips

• Turbosmart 60mm Straight Gate (x1)

• TurboSmart Gen V Raceport BOV (Optional)

• Factory actuator heat sleeve (x1)

• 1/8” NPT straight fitting for PTE turbos (not needed for Turbosmart)

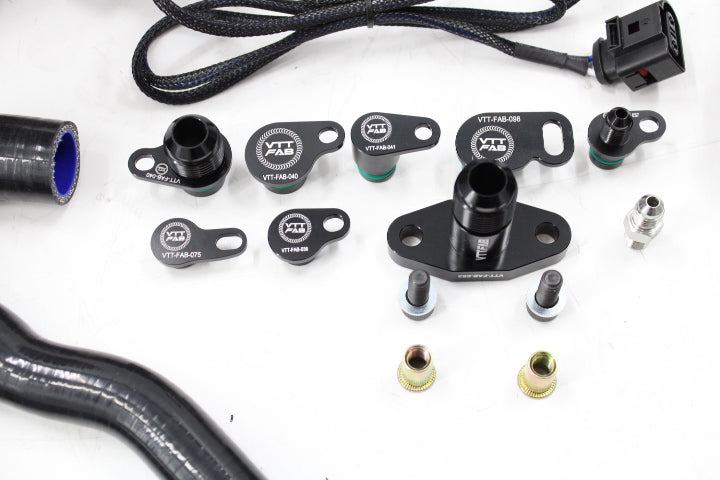

• VTT-FAB-062 drain adapter for PTE (x1)

• 040 10AN drain adapter (x1)

• 040 block-off adapters (x2)

• 038 feed block adapter (x1)

• 037 feed adapter (x1)

• 041 block-off adapter (x1)

• 075 block-off adapter (x1)

• Coolant extension harness (x1)

• M8 riv nuts (x2)

• Coolant bottle rods (x2)

• Coolant hose replacement (x1)

• Manifold nuts (x10)

• Manifold-to-head gaskets (x2)

• M6x12mm bolt for 075 block-off (x1)

• M8 drain bolts (x2)

• Head-to-manifold gaskets (x2)

• Downpipe donut gaskets (x2)

• Air filter or velocity stack (x1)

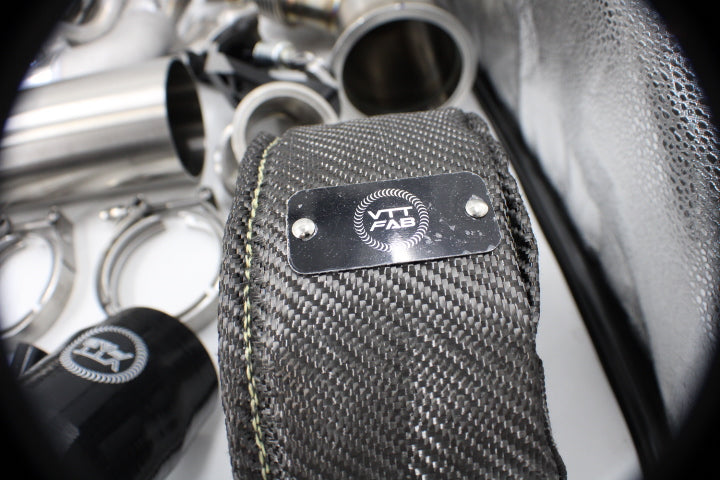

• VTT-FAB Titanium Turbo Blanket (Optional)

✅ Made in the USA
✅ No external boost control required
✅ OEM ECU integration with Turbosmart gate

The VTT-FAB S58 Top-Mount Single Turbo Kit is the ultimate upgrade for G8X/F9X owners who demand big power, precision control, and uncompromising build quality.
