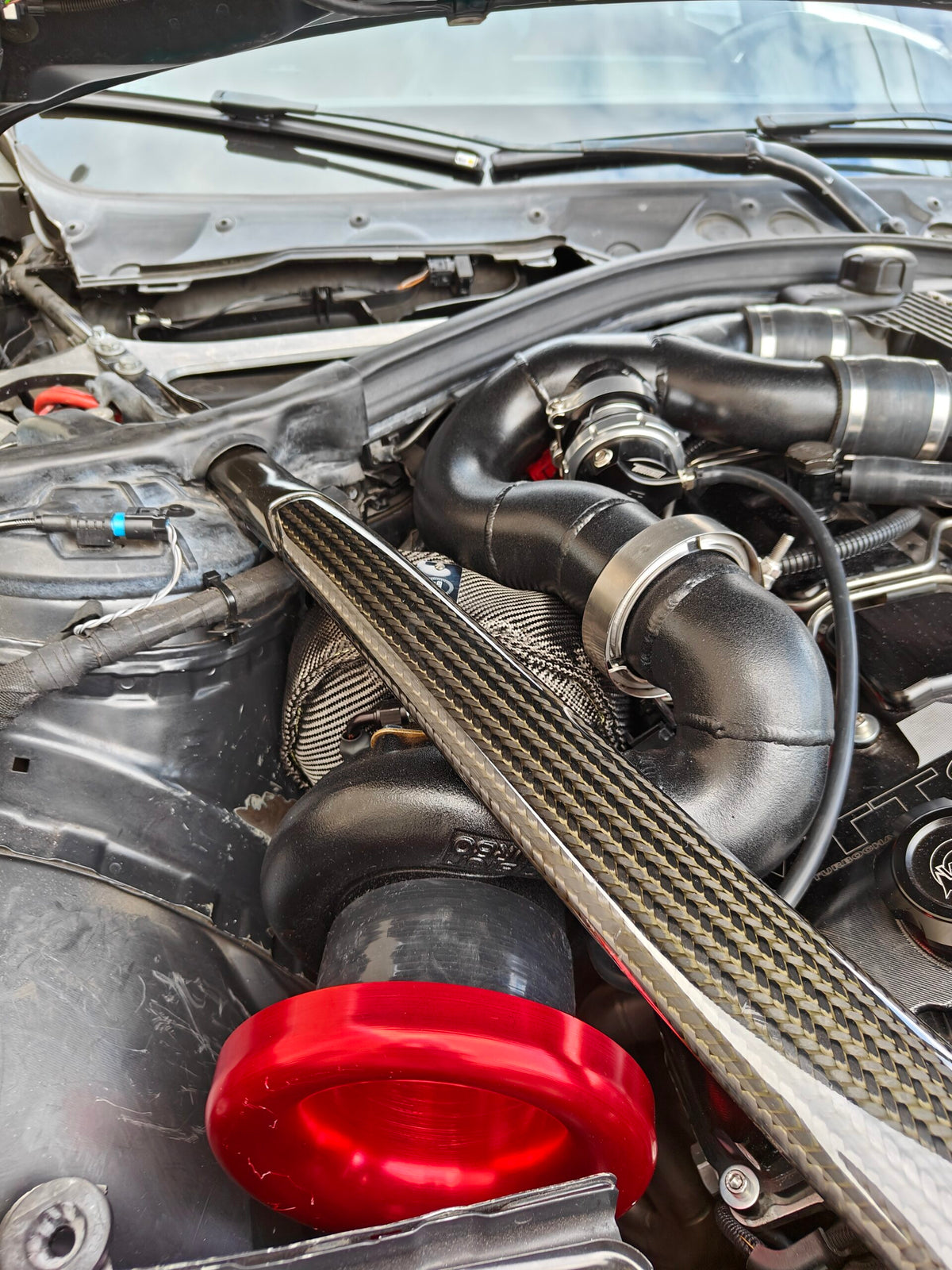

VTT-FAB Top-Mount Single Turbo Kit

For BMW F8X S55 Platform

VTT-FAB is proud to offer the premiere top-mount single turbo kit for the BMW F8X S55 platform. This system is 100% made in the USA at our Hayward, CA facility using only premium materials and components.

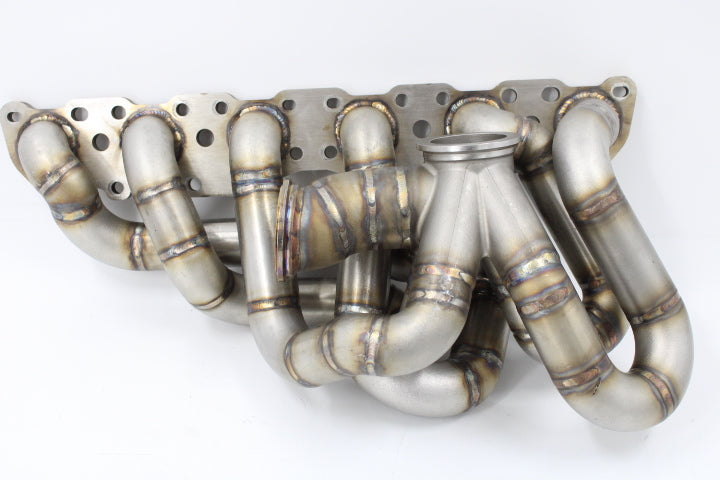

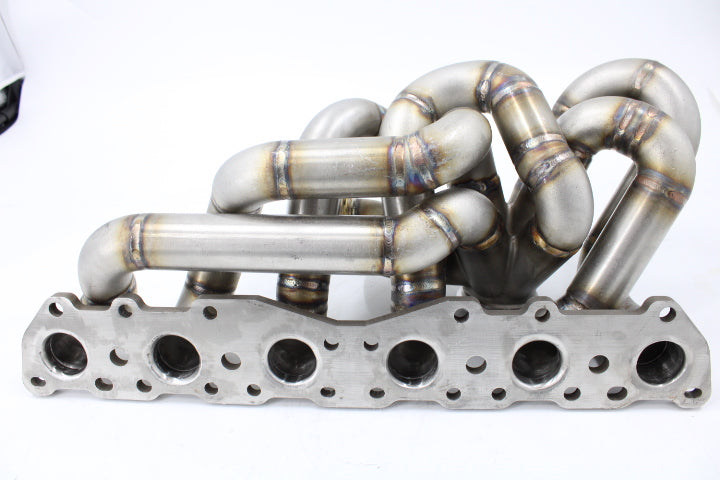

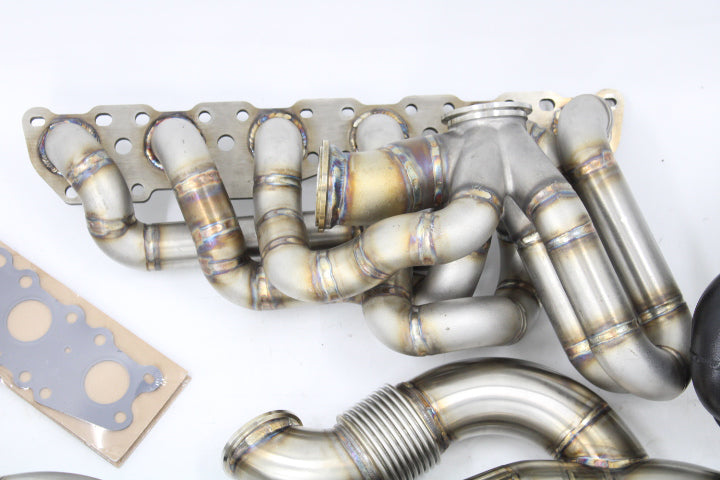

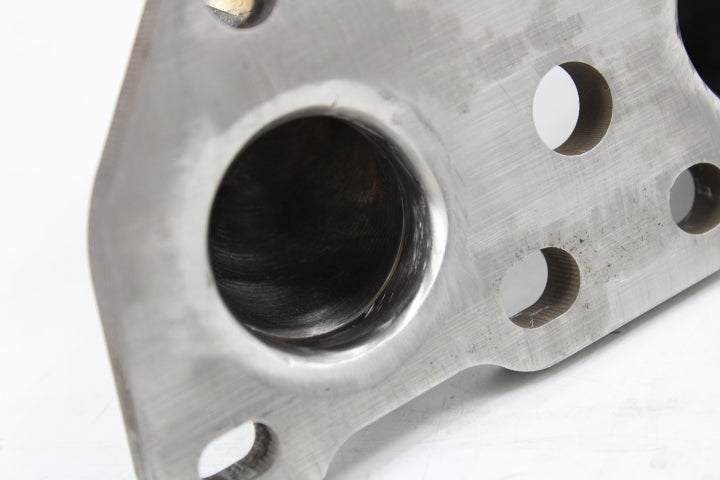

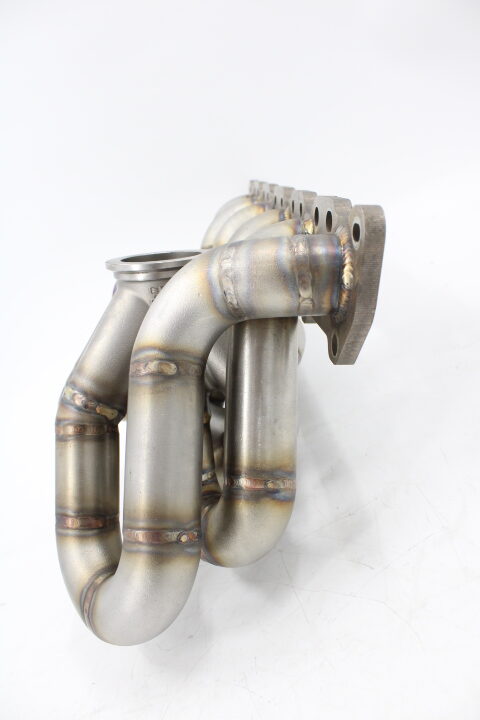

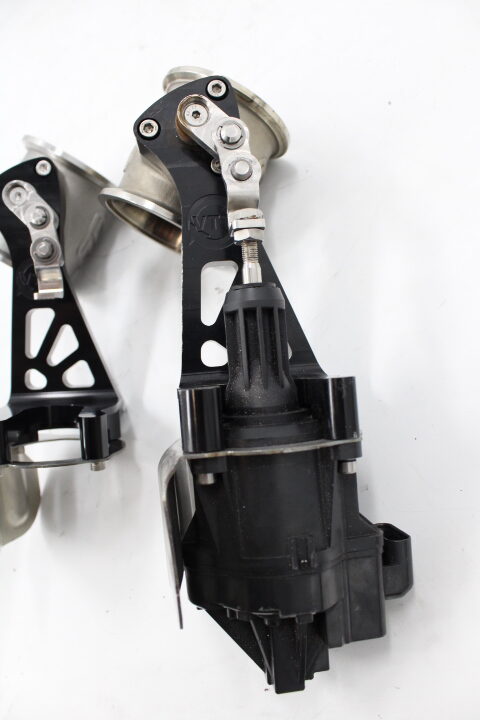

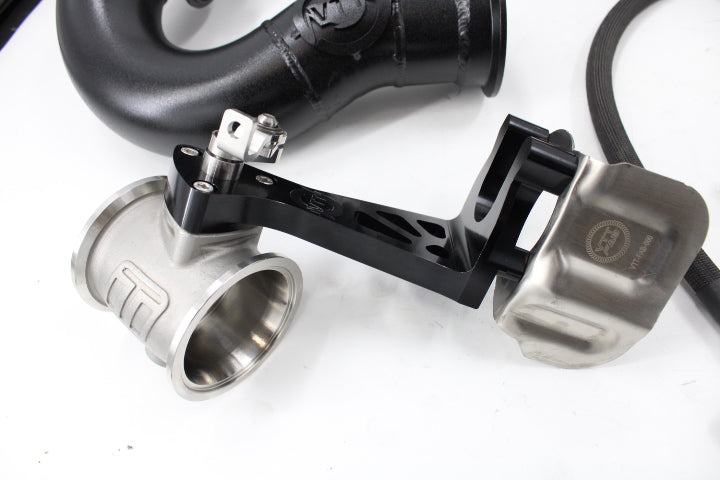

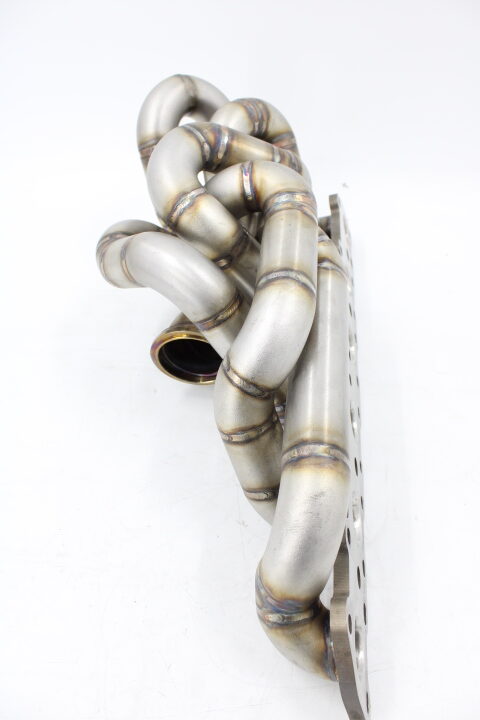

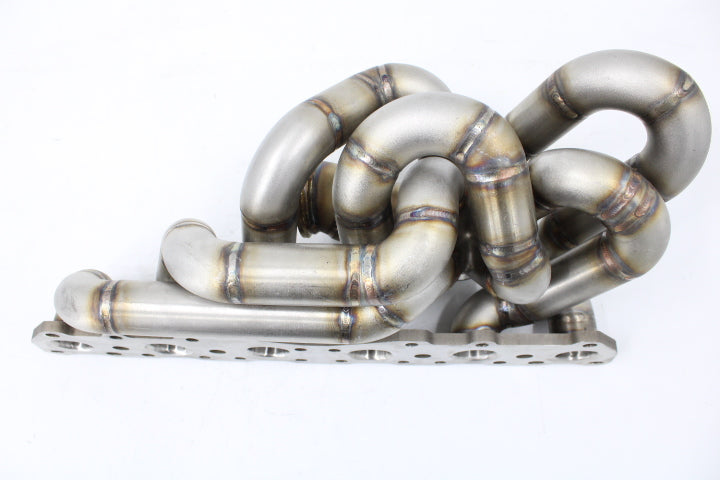

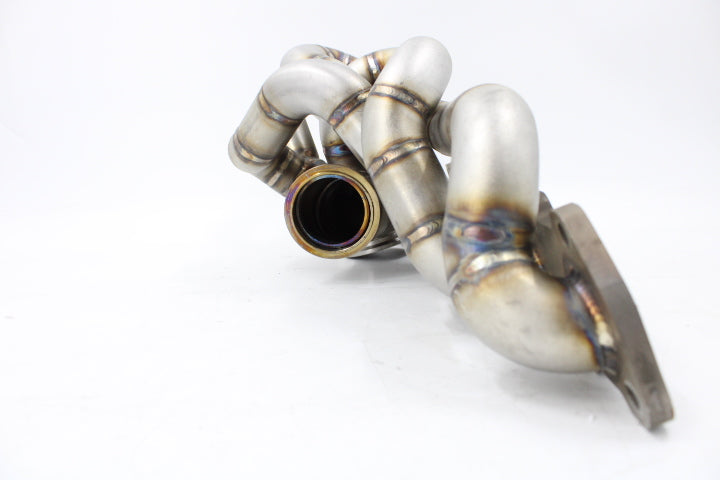

The heart of the kit is a hand-fabricated 321 stainless manifold with billet flanges for maximum flow and long-term durability. It’s paired with our factory-controlled external wastegate system featuring a Turbosmart 60mm Straight Gate. This design gives you complete wastegate control directly through your factory ECU tune — no external boxes, MAC solenoids, or vacuum lines required. Simply reuse your factory actuator with our adapter, and you have a true boost range from 0 PSI to the limits of your turbocharger.

⚠️ Important Notes

• Please email to confirm current build times.

• Every kit is built to order and cannot be canceled once fabrication begins.

Features

• Fully fabricated in-house (Hayward, CA) with U.S.-sourced parts

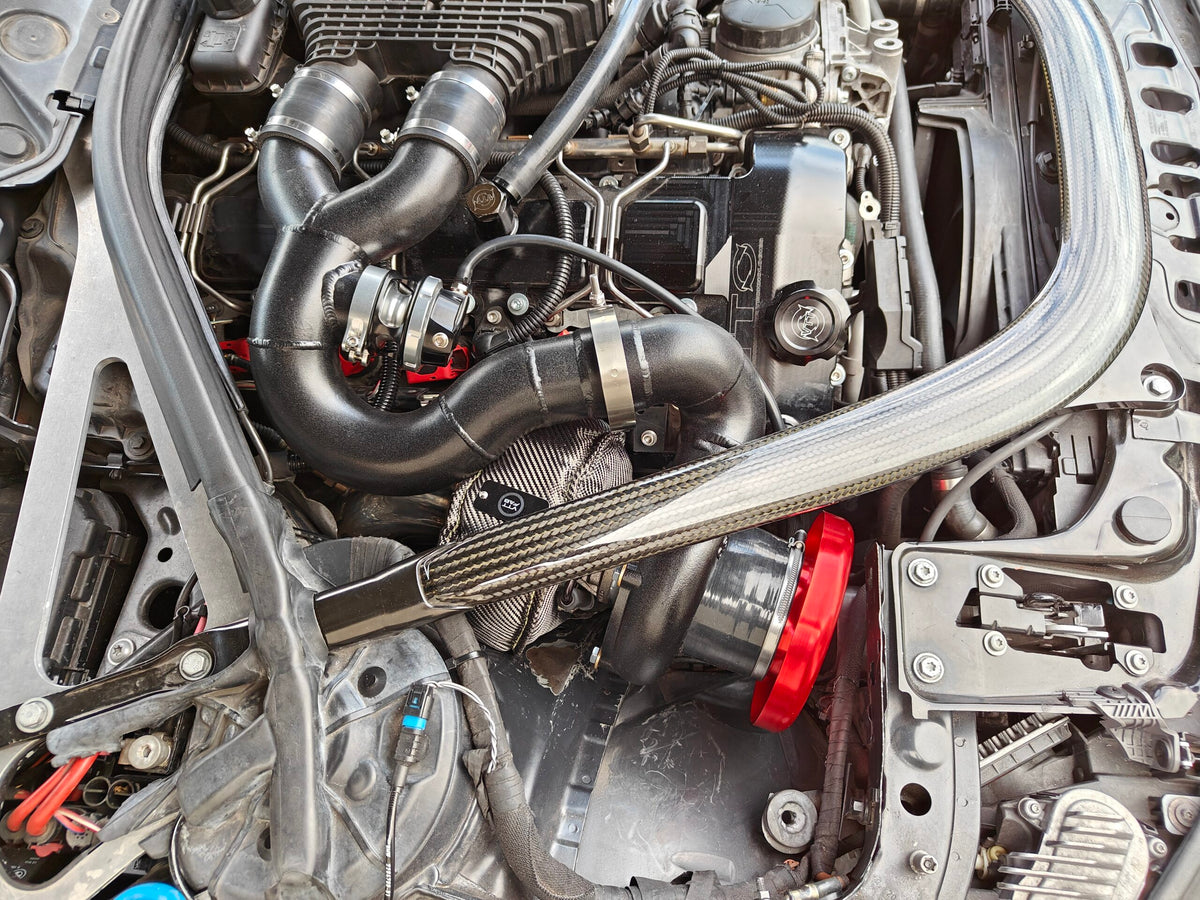

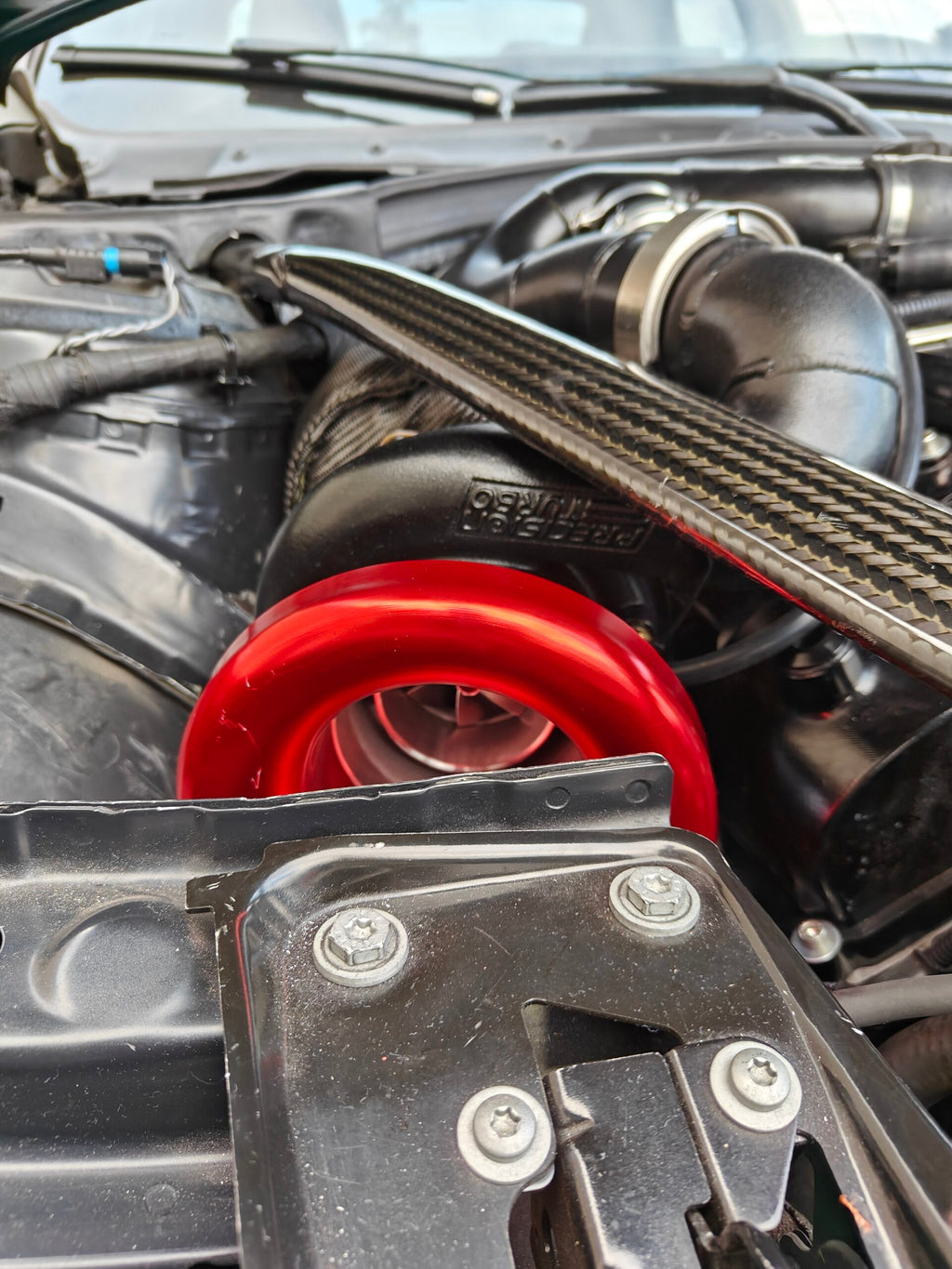

• The only top-mount S55 kit that clears the factory strut bar

• All TIG welded construction

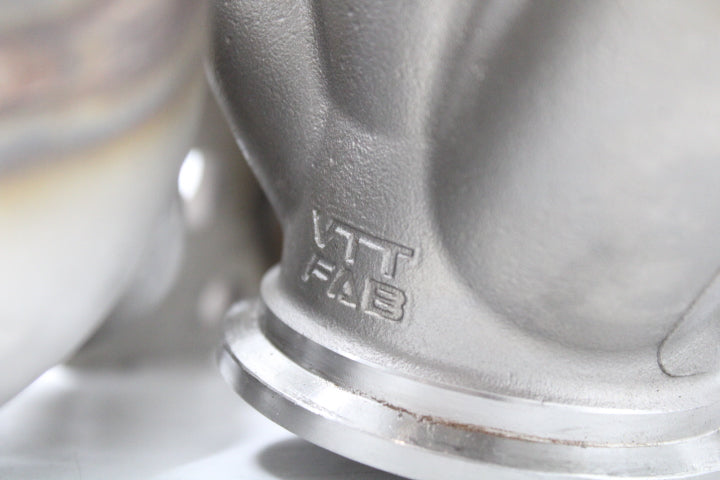

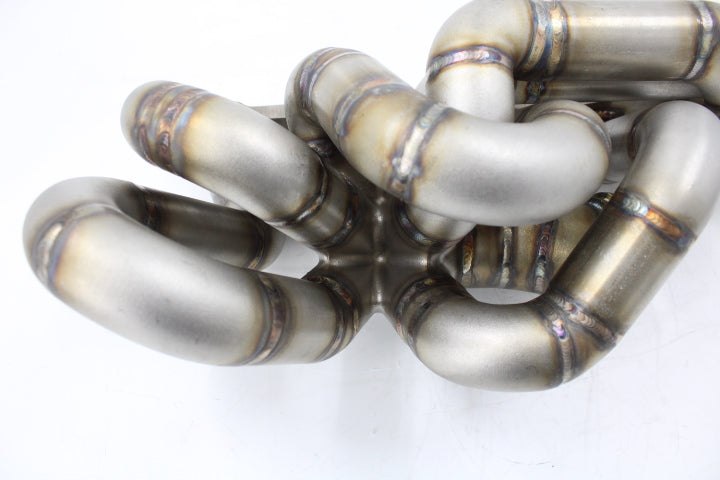

• VTT-FAB 6-into-1 cast collector

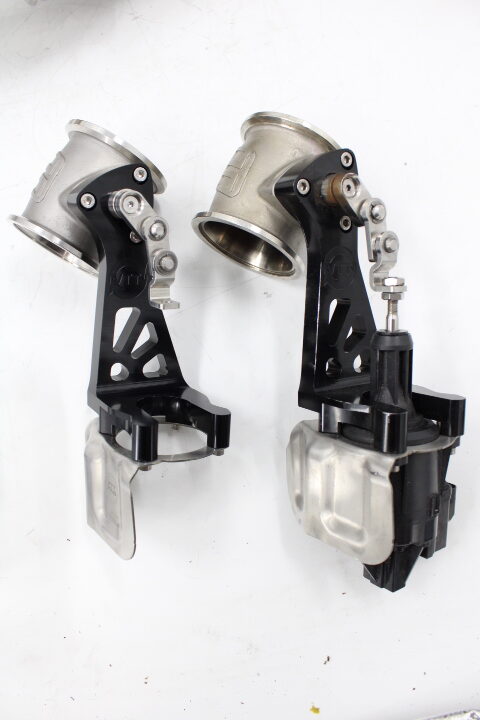

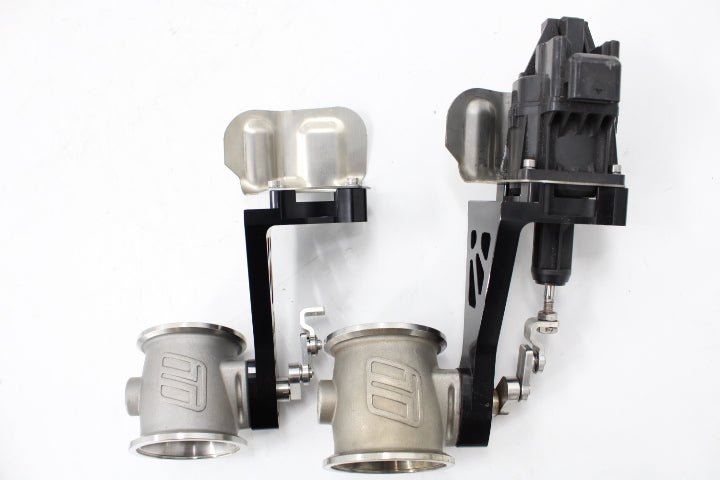

• Plug-and-play factory-controlled Turbosmart straight gate system

• 321 stainless weld Els for maximum heat resistance & durability

• 1.25″ primaries for lightning spool & high exhaust velocity

• Zero external boost control required

• Signature 6-into-1 turbo sound no divided housing can match

• Charge pipe flanged for Turbosmart or Tial BOV (optional block-off)

• Optional single charge pipe setup for Wagner single-inlet charge cooler

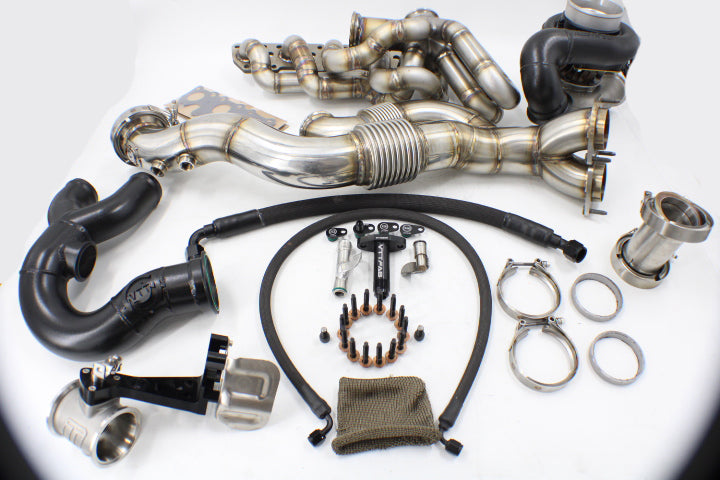

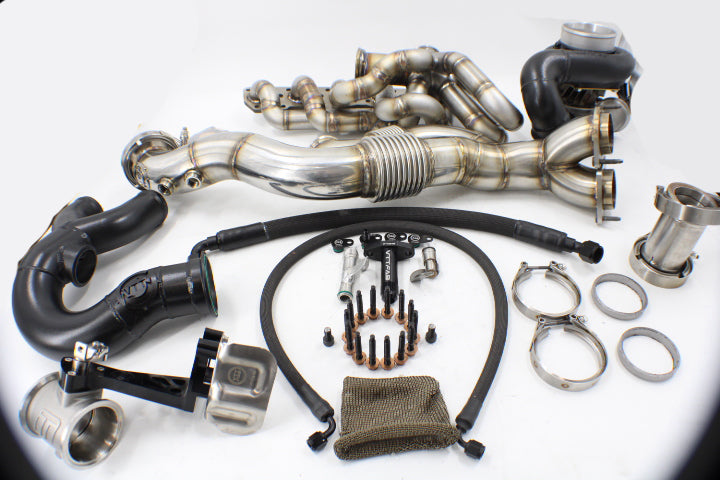

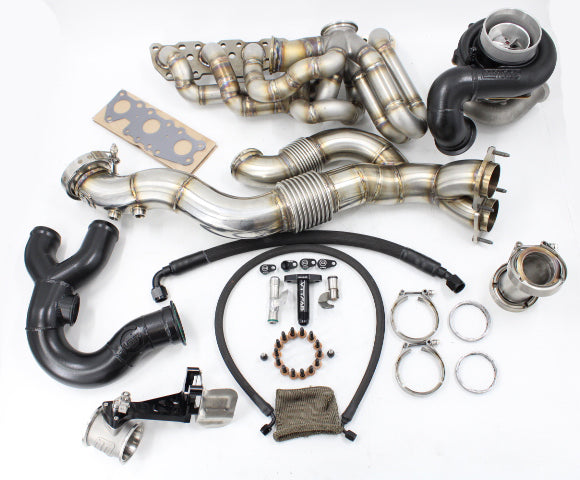

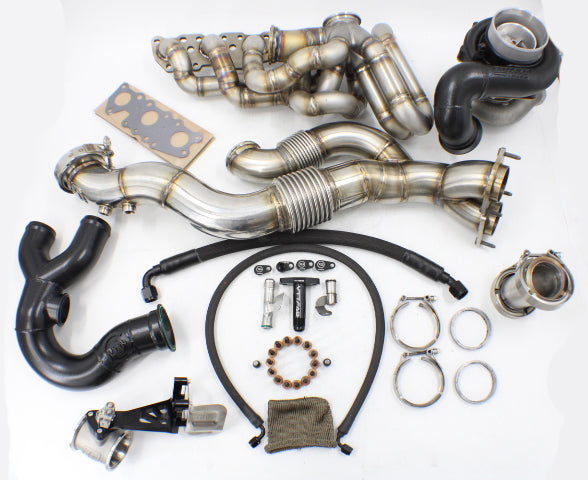

Kit Contents

• Manifold (x1)

• Downpipe with clamps (x1)

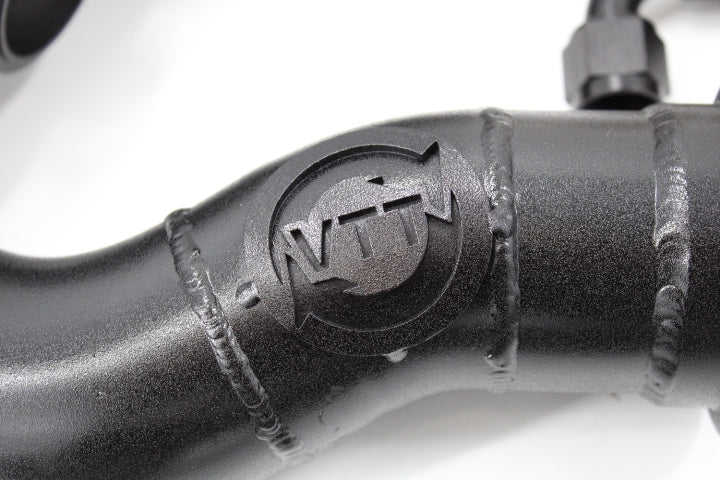

• Charge pipe (x1)

• Charge pipe hoses (x2)

• Charge pipe clamps (V-band + worm)

• Oil feed line (x1)

• Oil drain line (x1)

• Wastegate setup with 2x V-band clamps

• Wastegate heat sleeve

• Wastegate wiring harness extension

• Wastegate arms & clips

• Turbosmart 60mm Straight Gate (x1)

• TurboSmart Gen V Raceport BOV (Optional)

• Factory actuator heat sleeve

• -4AN 90° steel feed fitting (x1)

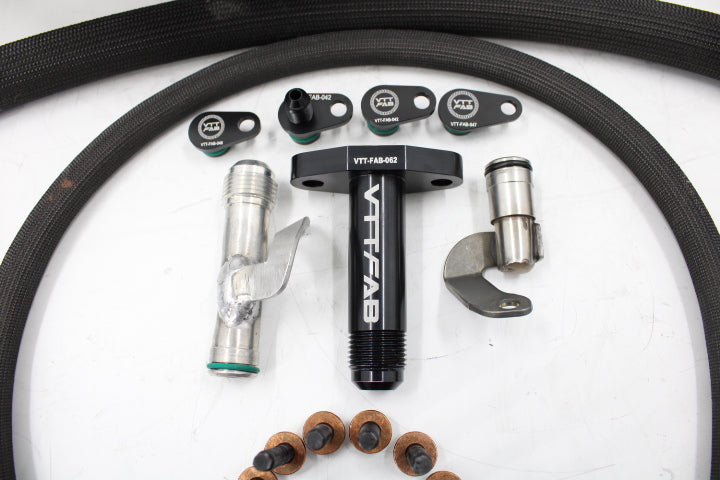

• VTT-FAB-042 front & rear oil feed adapters + block-off (x1 each)

• VTT-FAB-046 coolant pump block-off (x1)

• VTT-FAB-047 upper coolant line block (x1)

• VTT-FAB-044 front drain adapter (-10AN or block-off) (x1)

• VTT-FAB-045 rear drain adapter (-10AN or block-off) (x1)

• VTT-FAB-062 drain adapter (x1)

• M8 drain bolts (x2)

• Head studs (x15)

• Exhaust nuts (x15)

• Head-to-manifold gaskets (x2)

• Downpipe donut gaskets (x2)

• Air filter or velocity stack (x1)

• VTT-FAB Titanium Turbo Blanket (Optional)

✅ Made in the USA
✅ Factory strut bar clearance
✅ Plug-and-play OEM ECU boost control
✅ Unmatched 6-into-1 turbo sound

The VTT-FAB S55 Top-Mount Single Turbo Kit is the ultimate solution for F8X owners who demand world-class power, factory-like integration, and a design that doesn’t compromise fitment.
