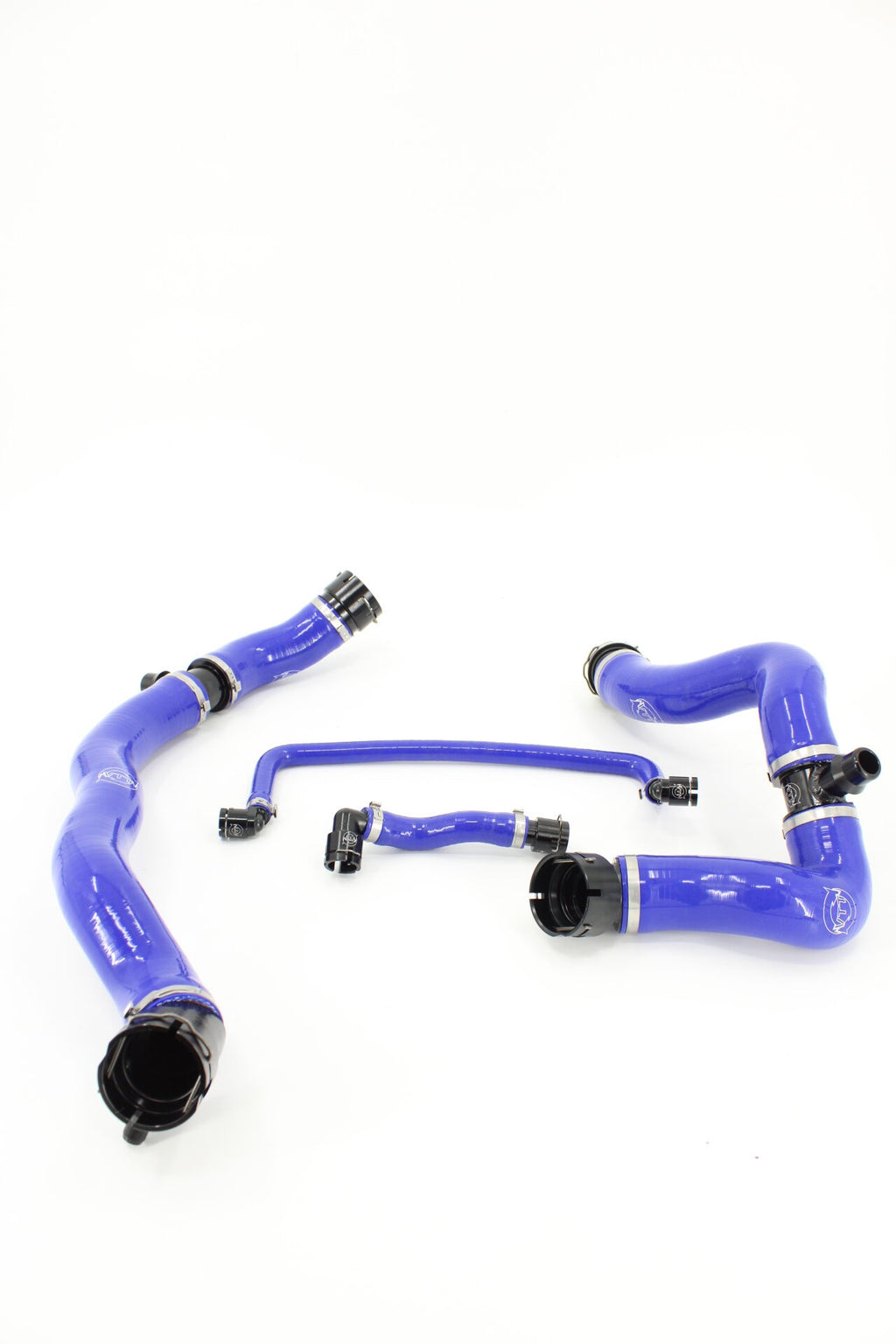

VTT Billet/Silicone B58 F2X/F3X Coolant Hoses

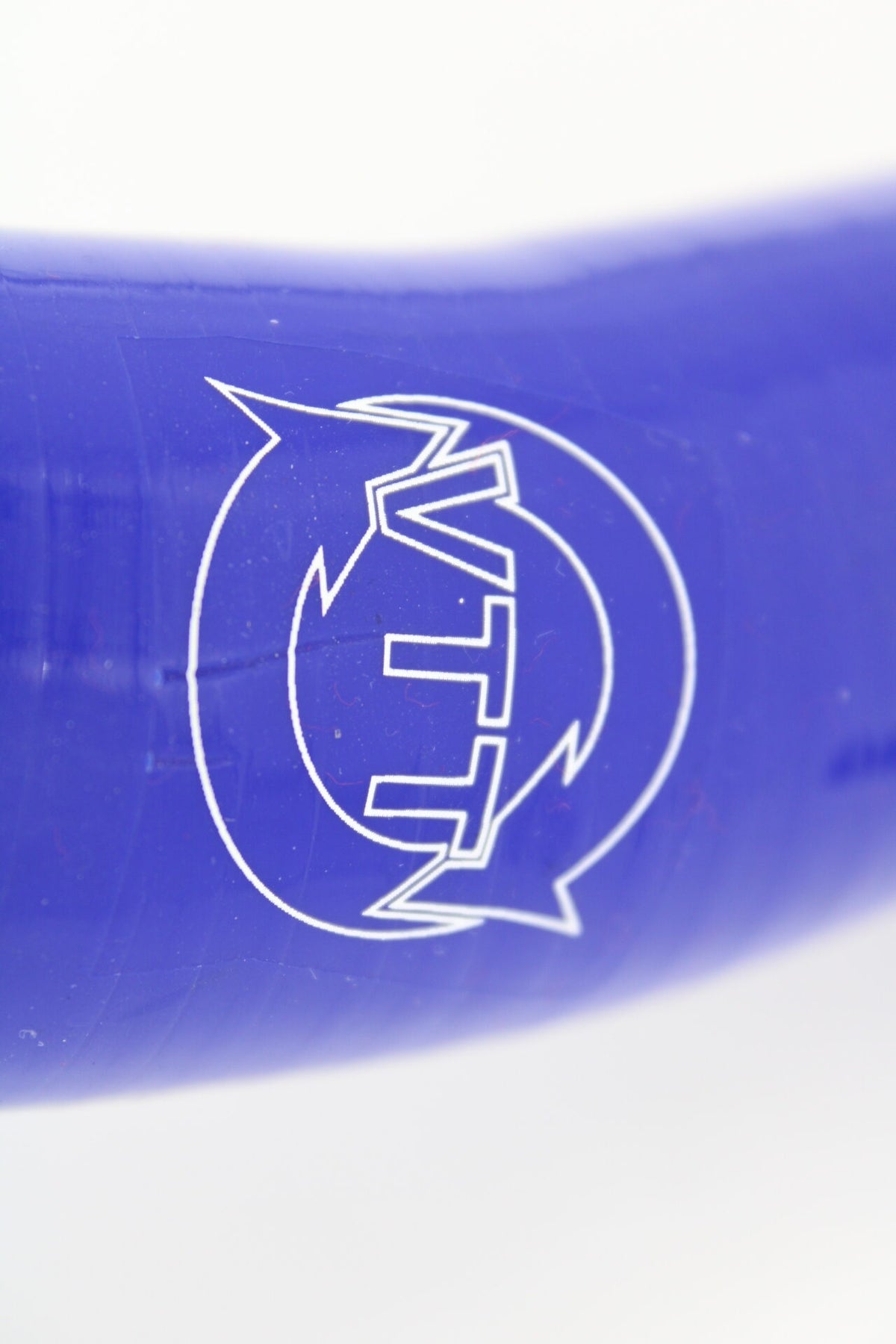

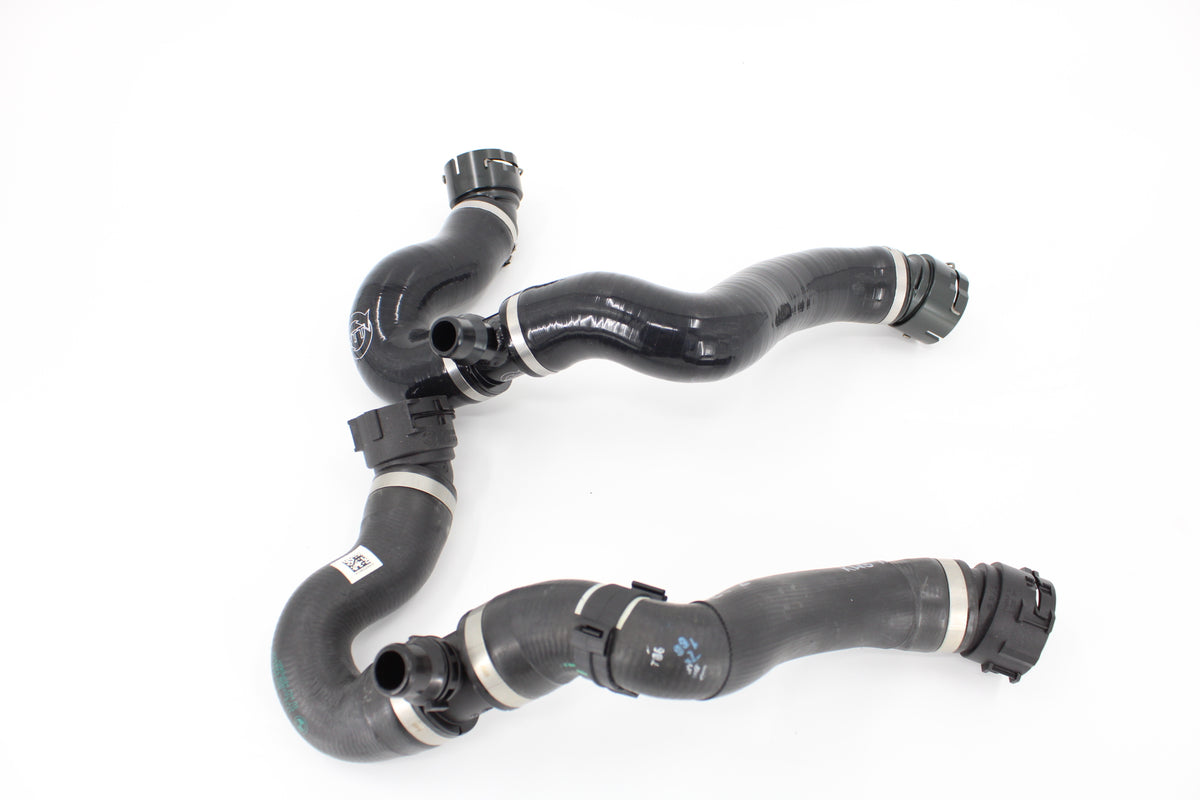

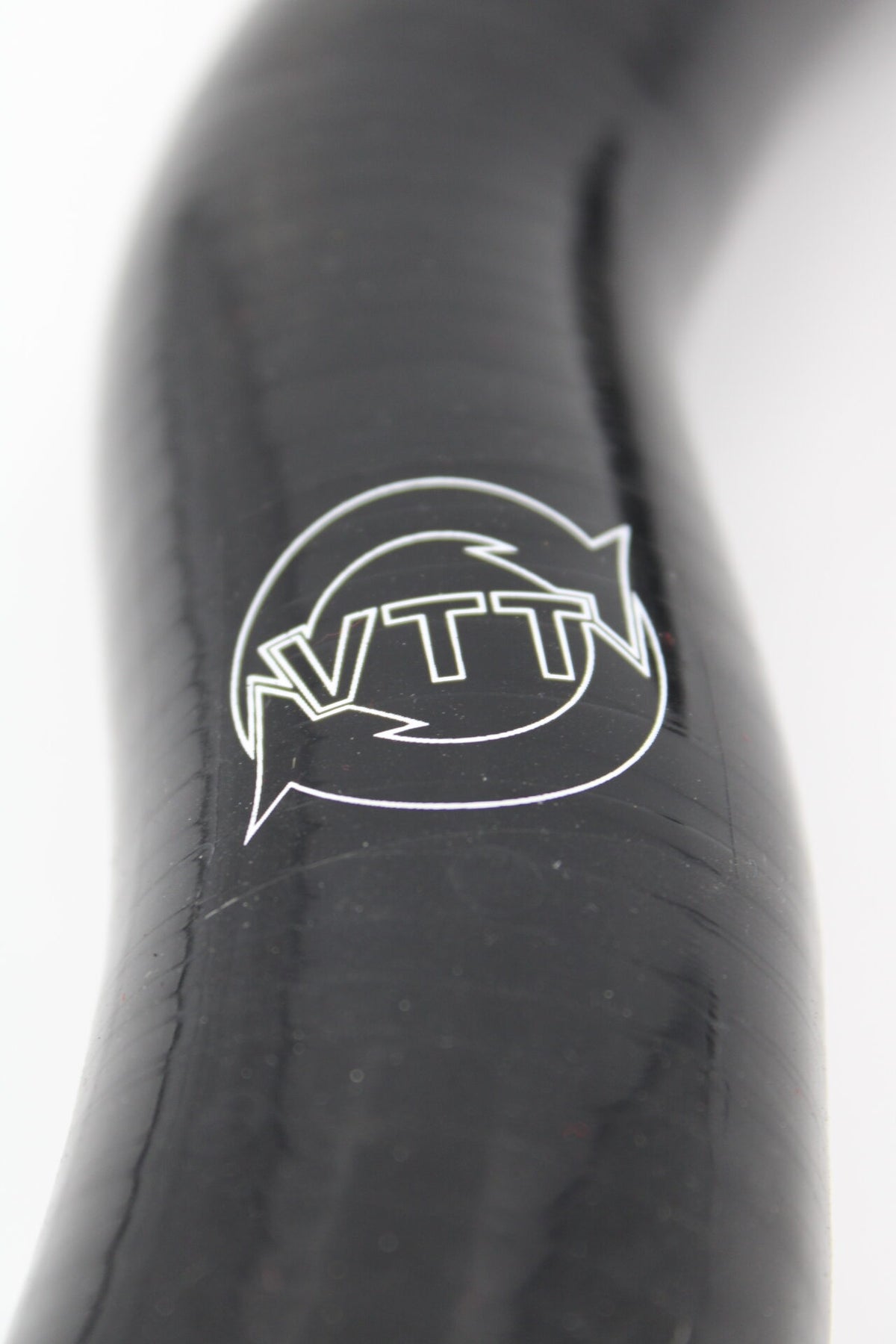

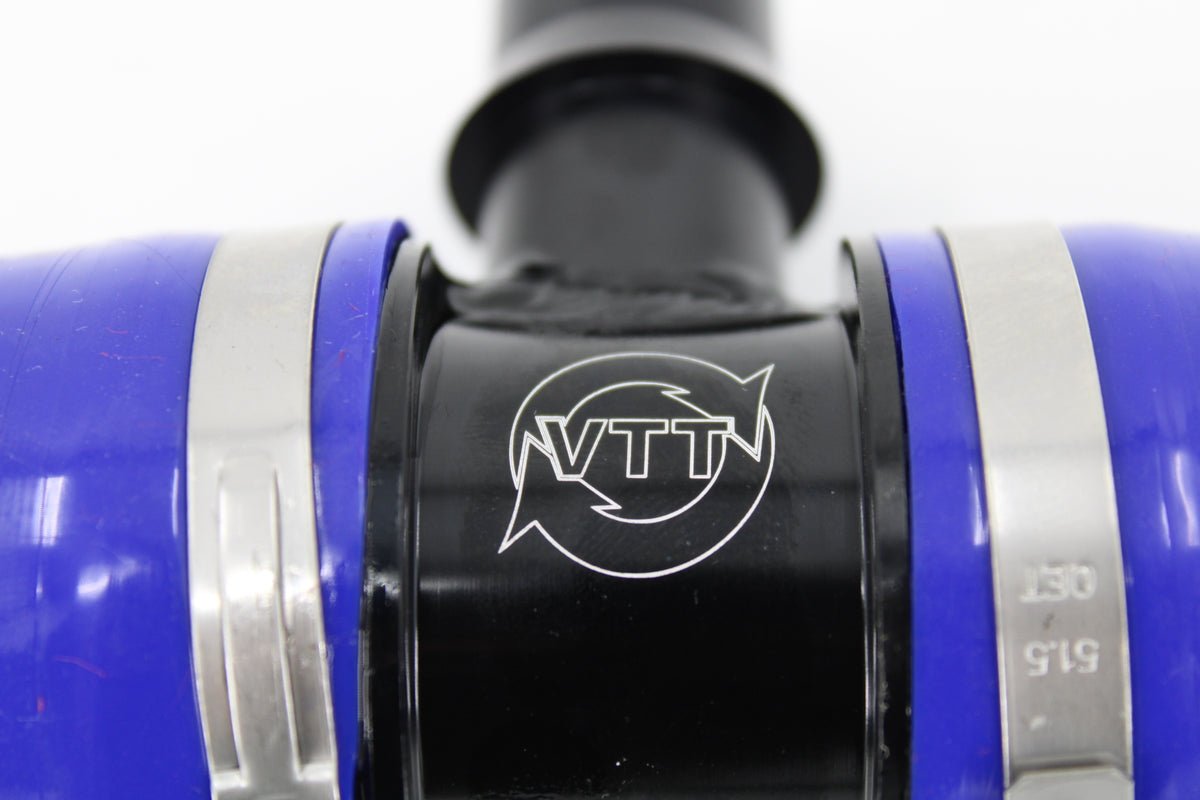

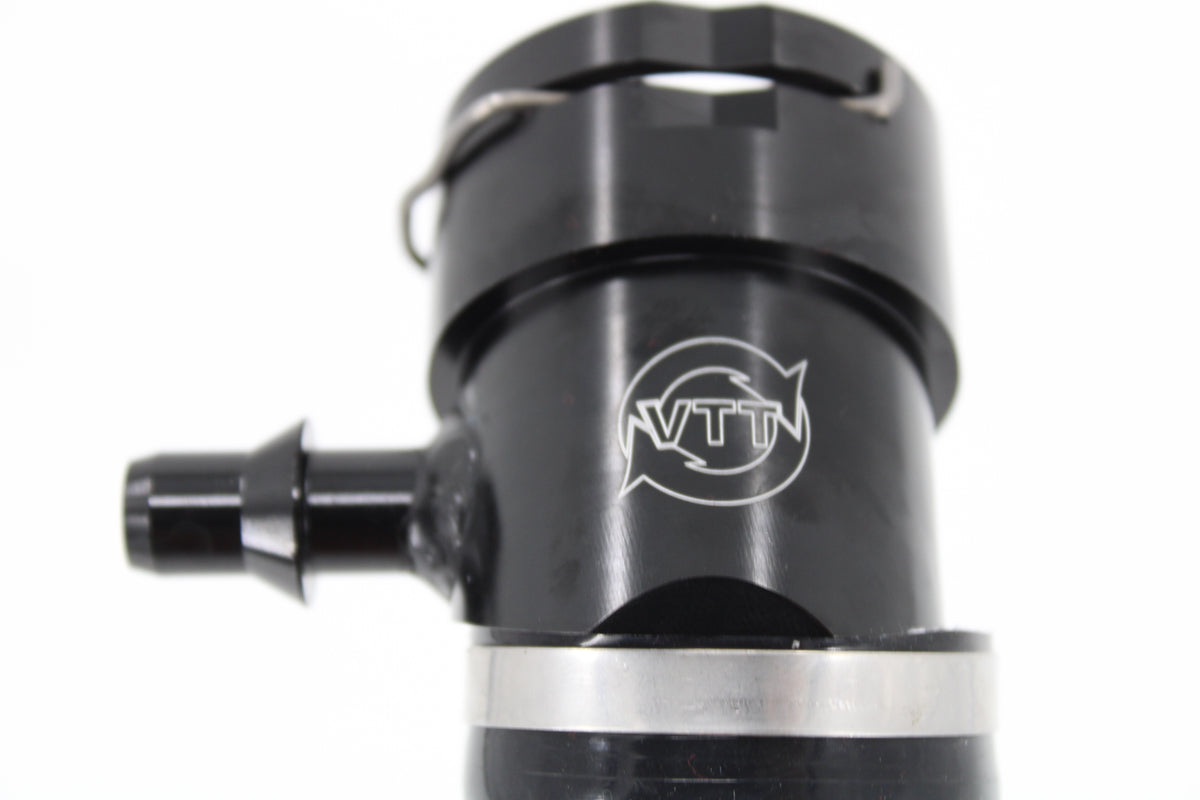

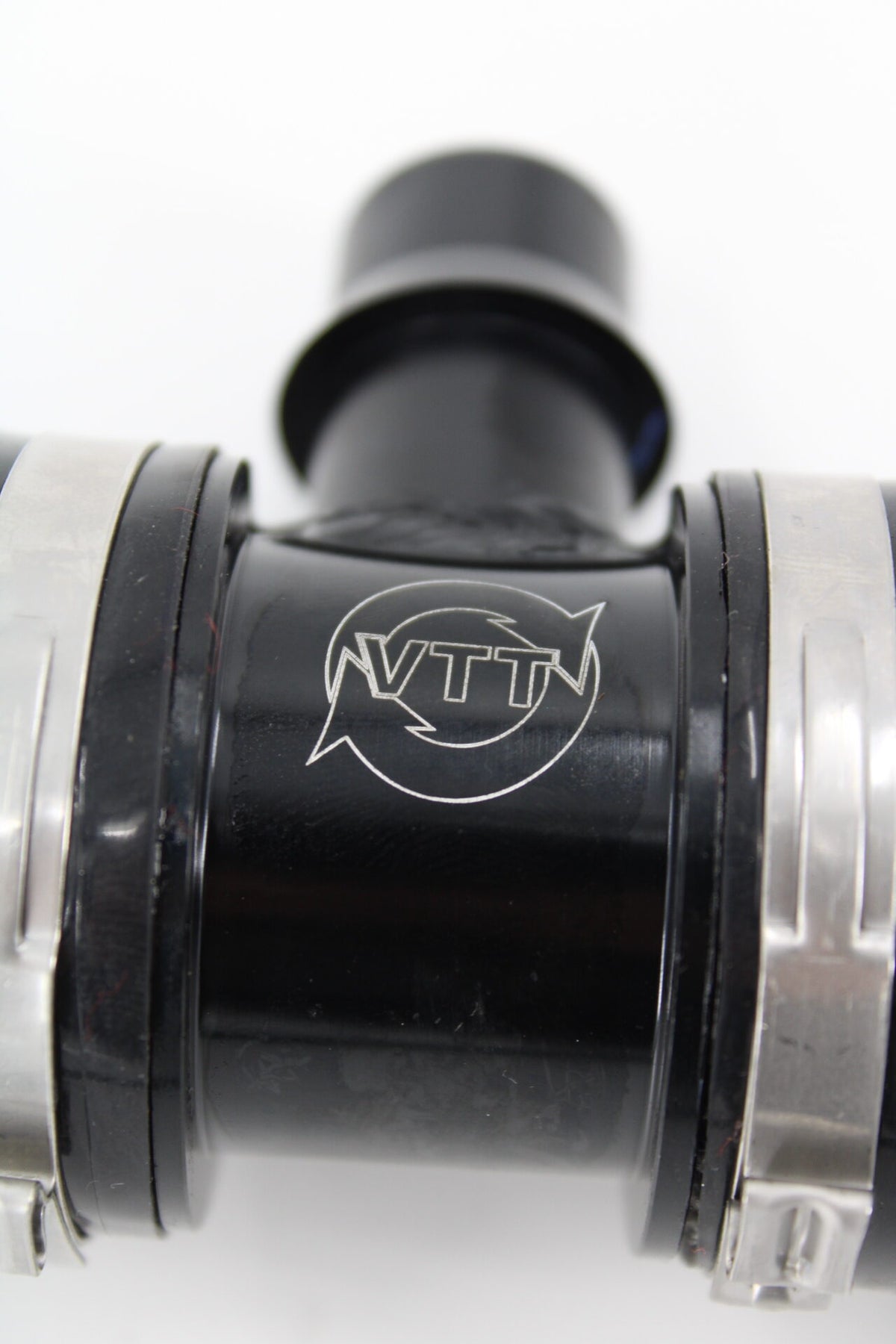

VTT is proud to announce our B58 Gen 1 Billet/Silicone coolant hose upgrade kit! The factory plastic coolant connectors are prone to breaking over time, and the hoses are just your standard run-of-the-mill coolant hose. We wanted to provide an upgrade to both areas. What we came up with is Billet 6061-T6 connectors anodized black for corrosion resistance, and 6-ply silicone molded silicone hoses in the factory shapes.

Currently, these fit most Gen 1 B58 applications F2X/F3X. They may not fit some models, we have not test fit on all models.

We will be offering them in a variety of ways.

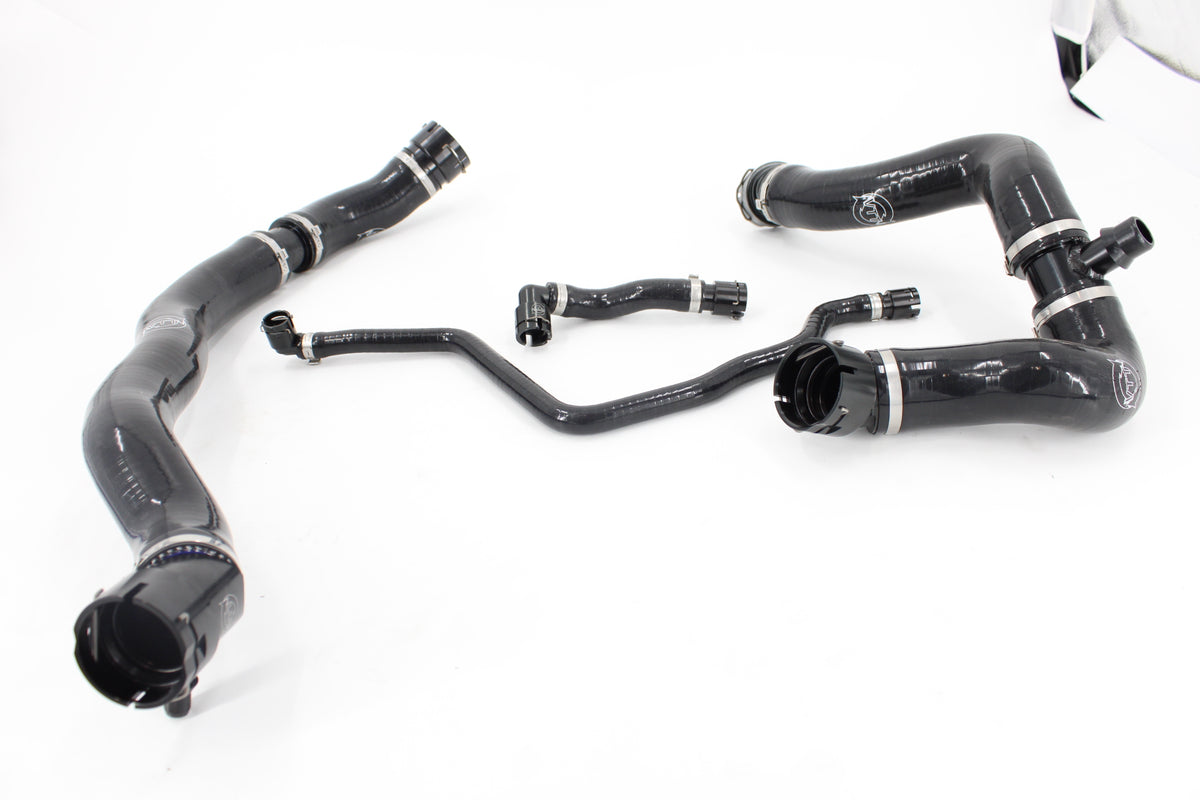

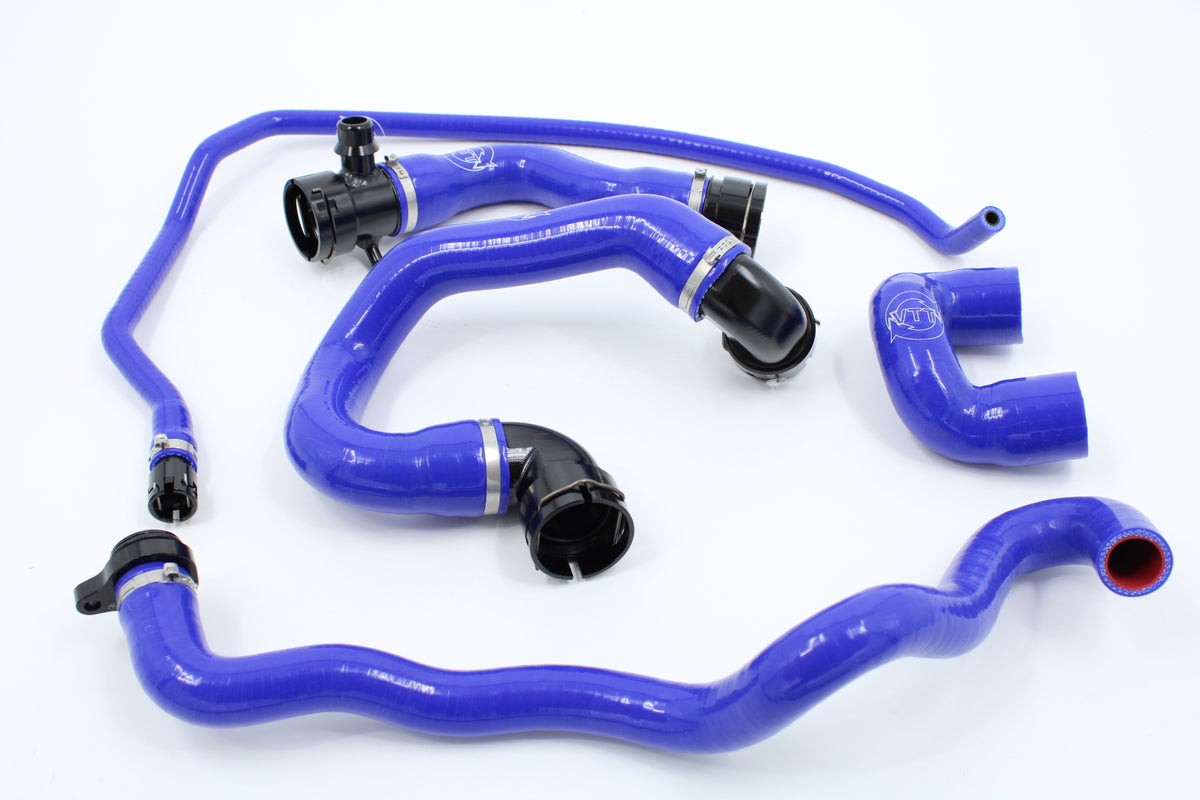

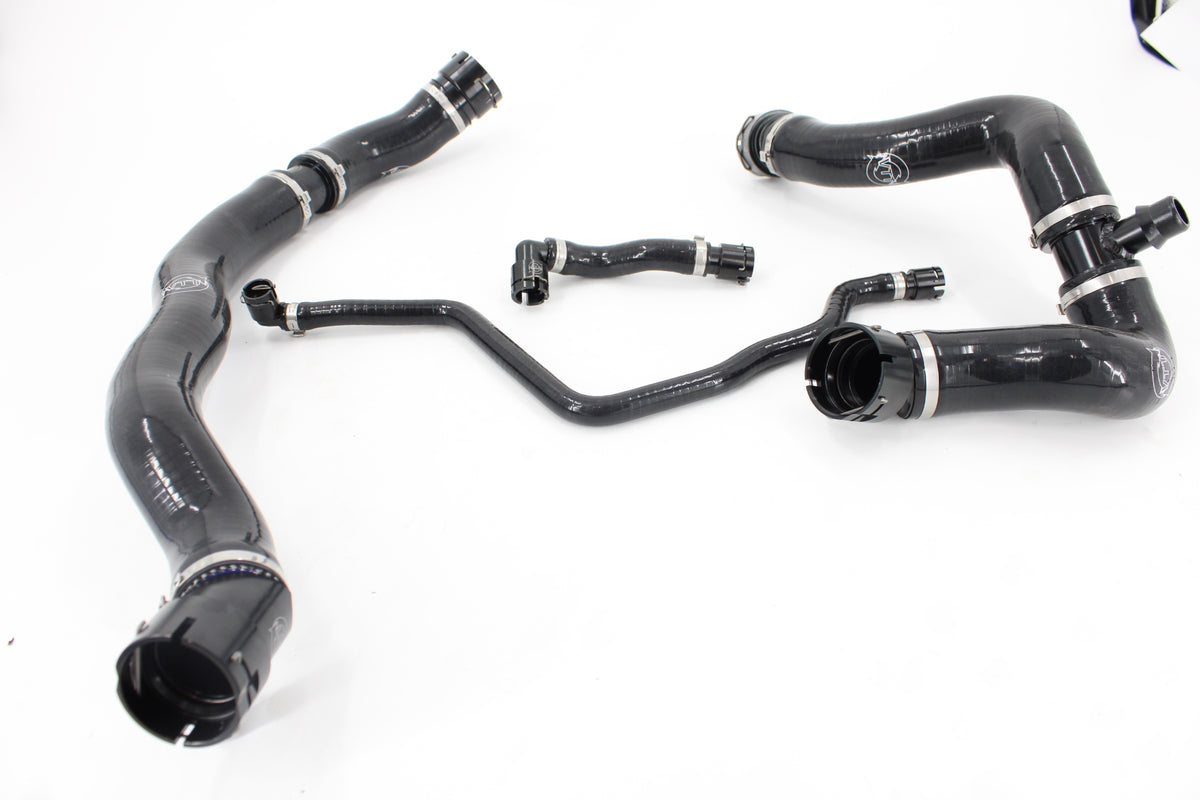

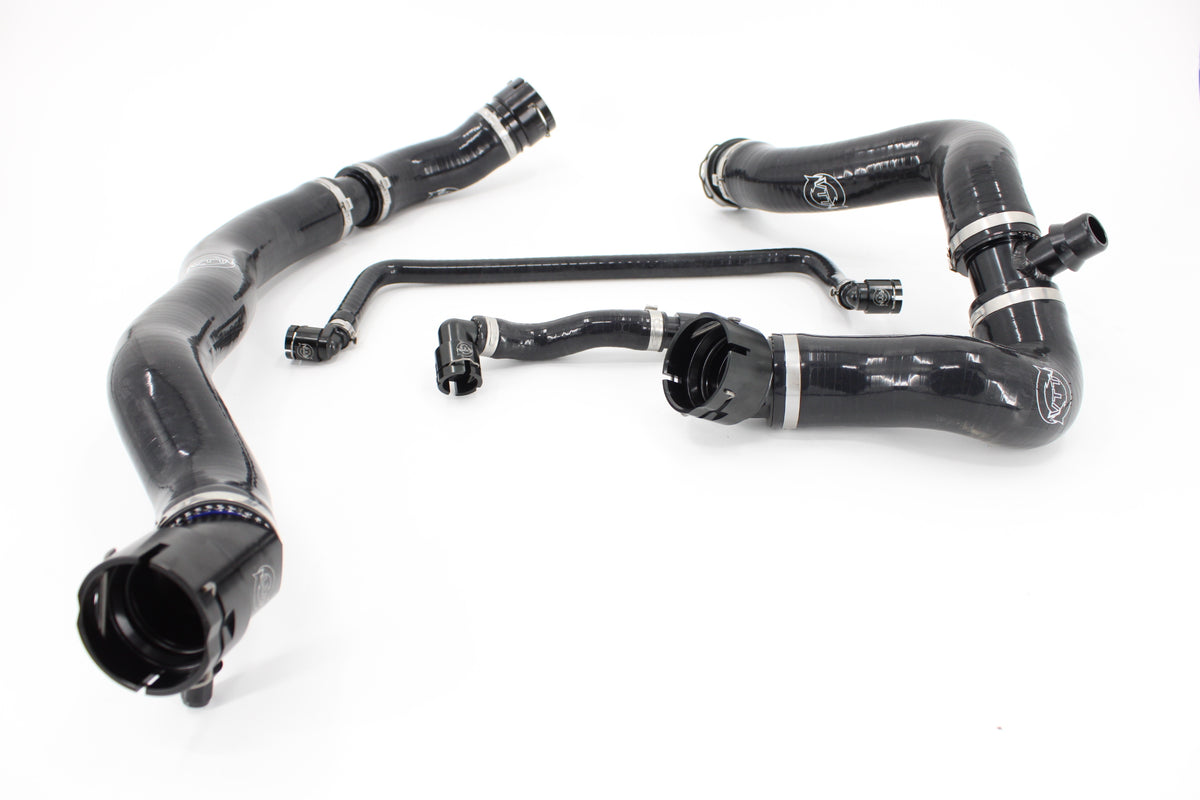

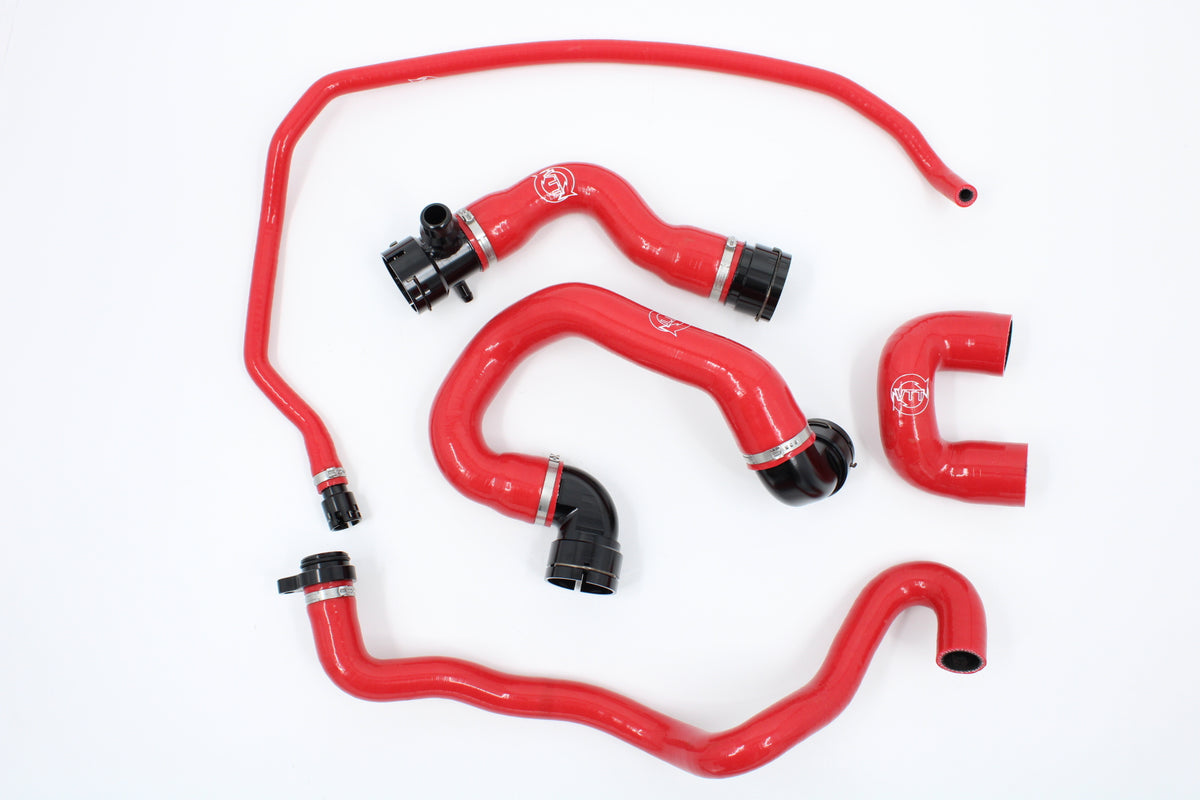

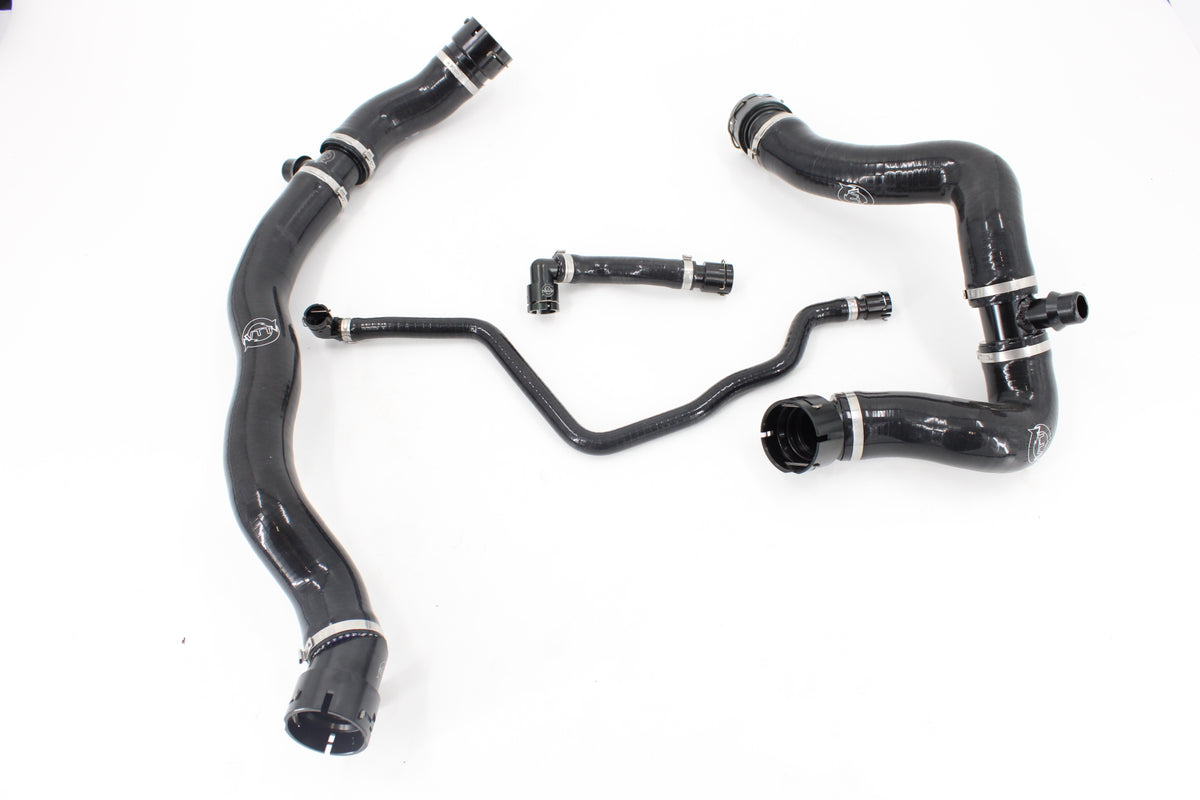

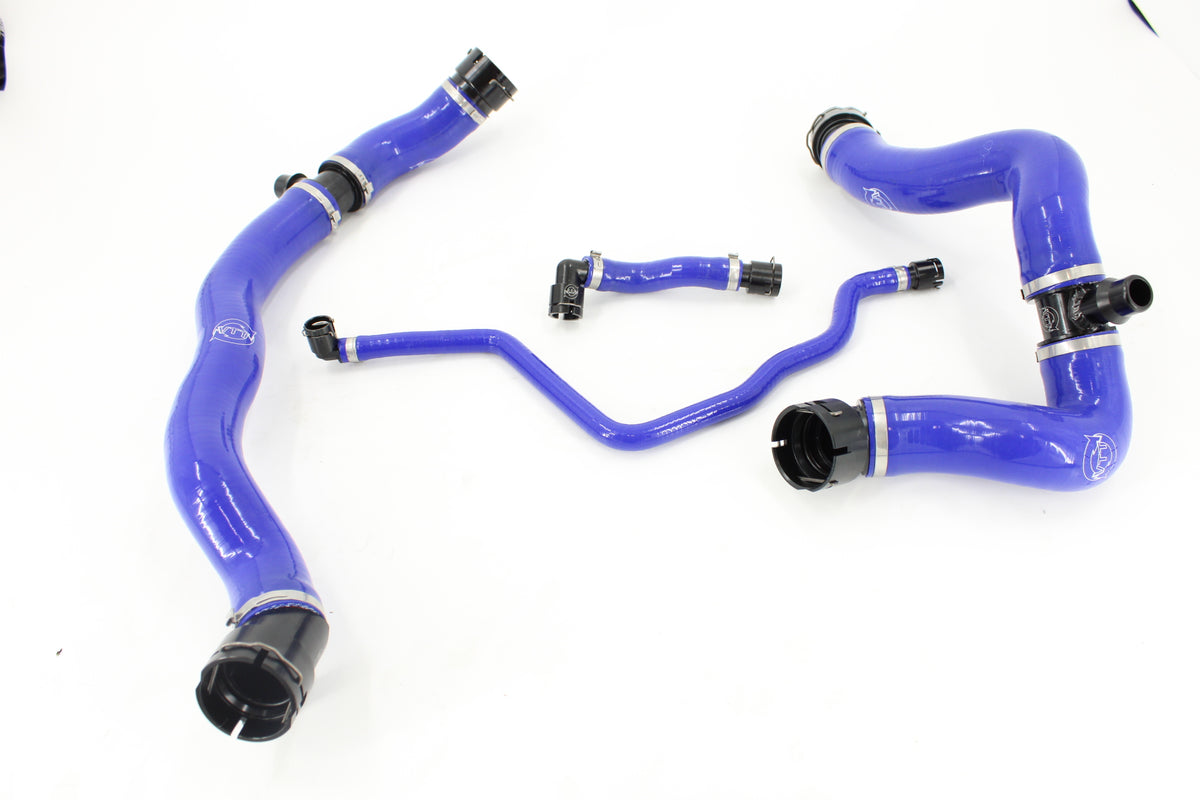

Full hose kit:

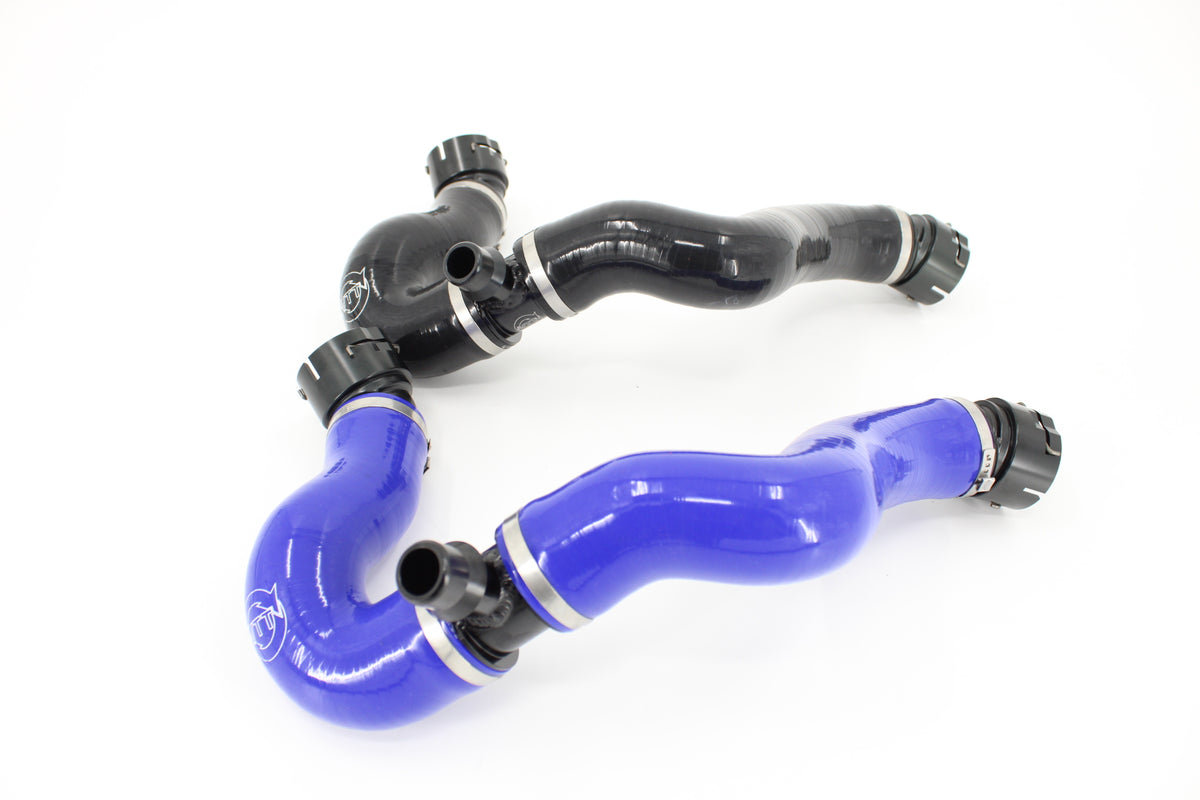

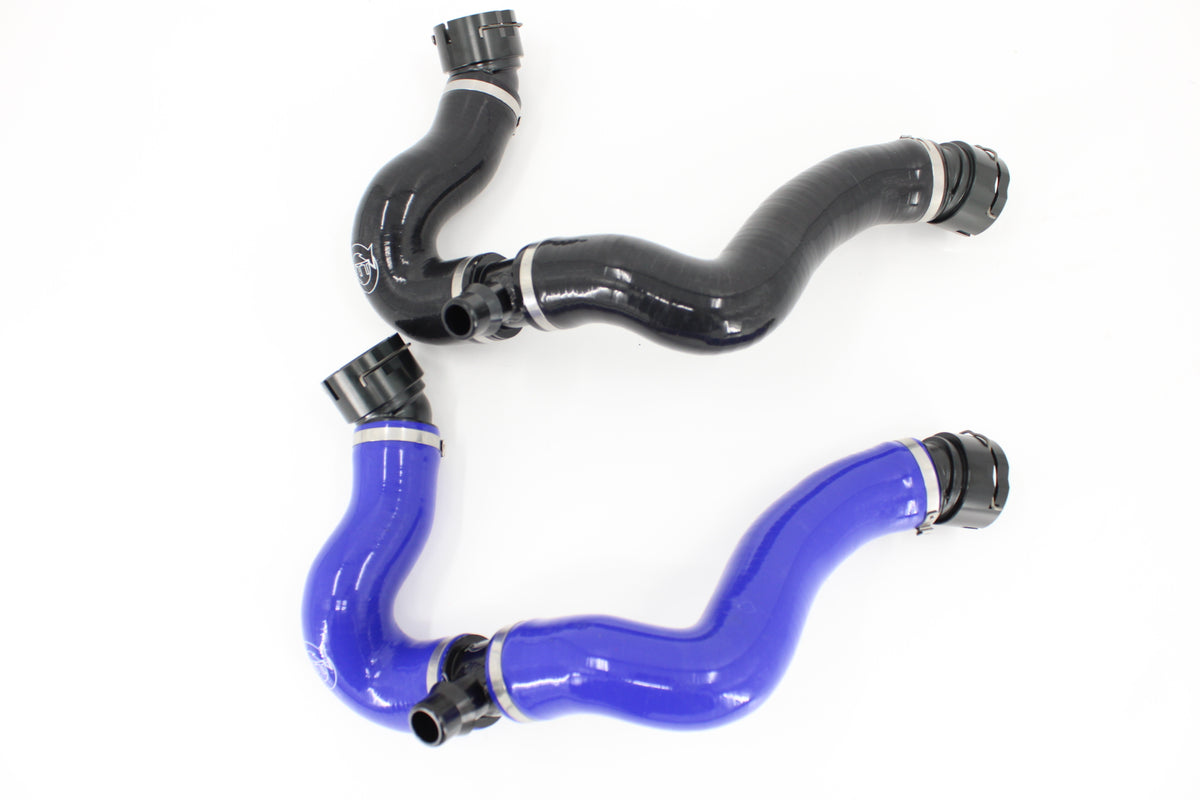

• Upper Radiator hose – OEM Part 17 12 8 616 548
• Lower Radiator hose – OEM Part 17 12 8 633 482
• Expansion Tank hose OEM Part 17 12 8 620 944
• Upper vent hose – OEM Part 17 12 8 616 555

Radiator Hose Kit:

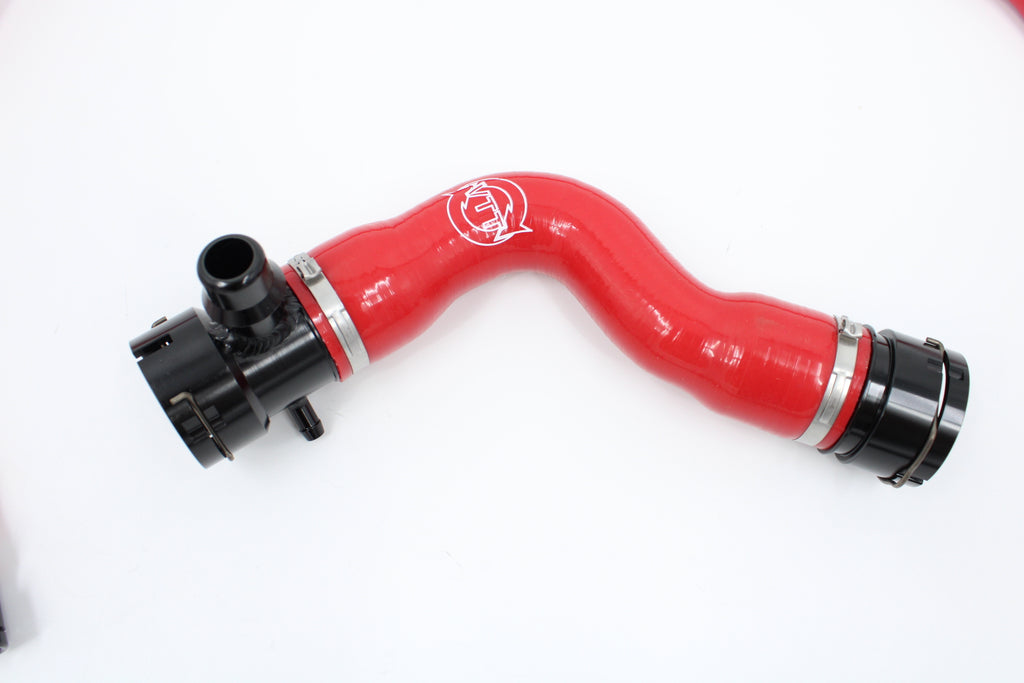

• Upper Radiator hose – OEM Part 17 12 8 616 548
• Lower Radiator hose – OEM Part 17 12 8 633 482

Individual hoses:

• Upper Radiator hose – OEM Part 17 12 8 616 548
• Lower Radiator hose – OEM Part 17 12 8 633 482
• Expansion Tank hose OEM Part 17 12 8 620 944
• Upper vent hose – OEM Part 17 12 8 616 555

Fitment Guide:

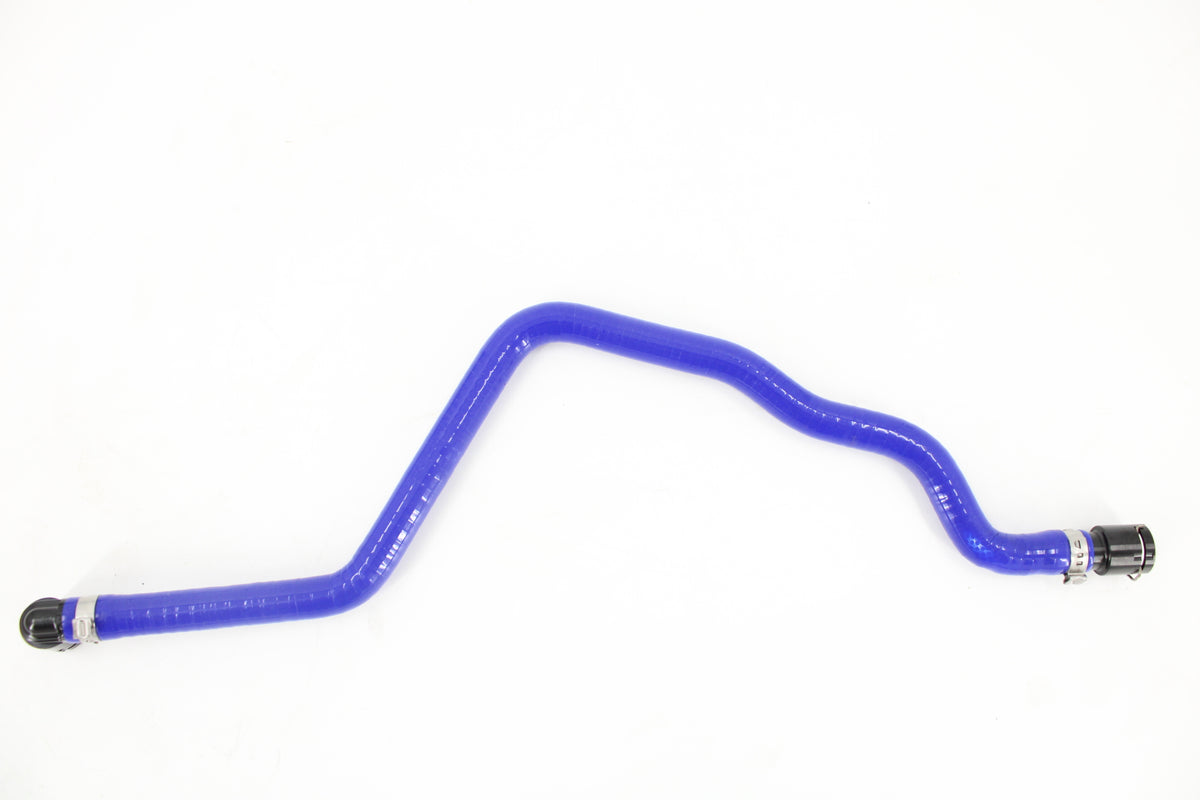

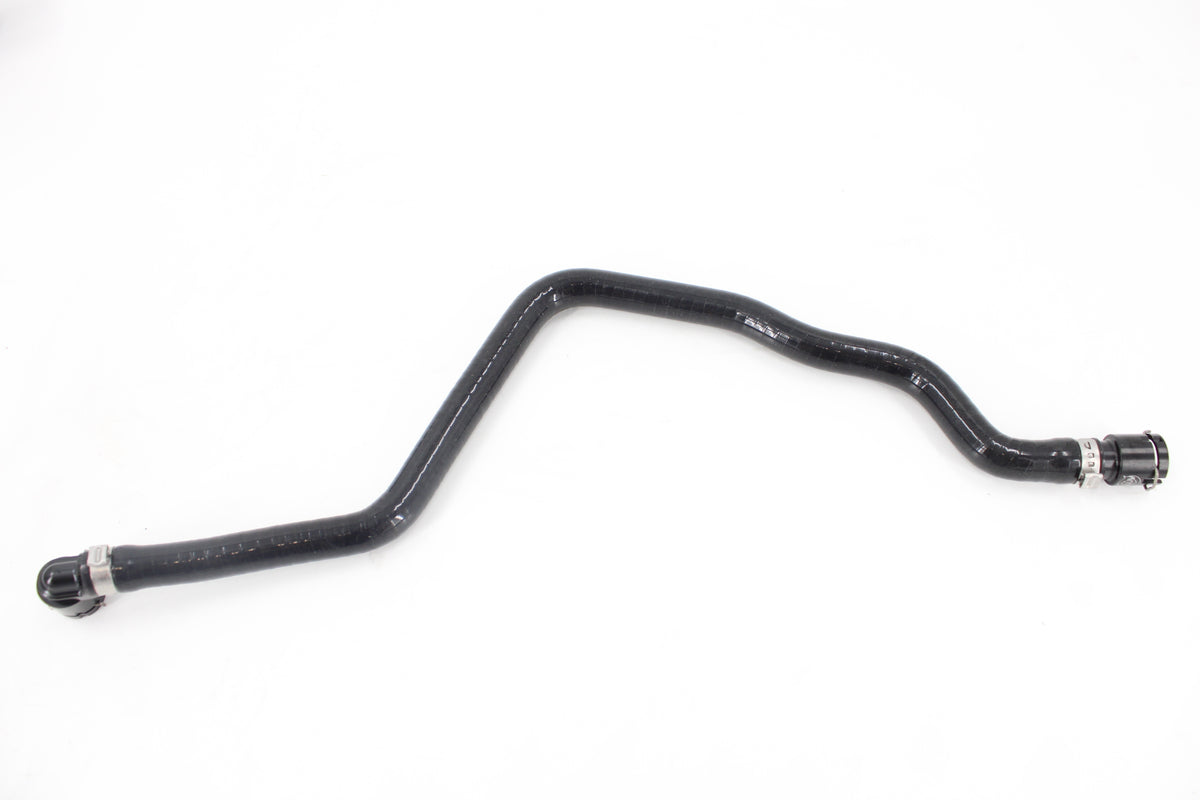

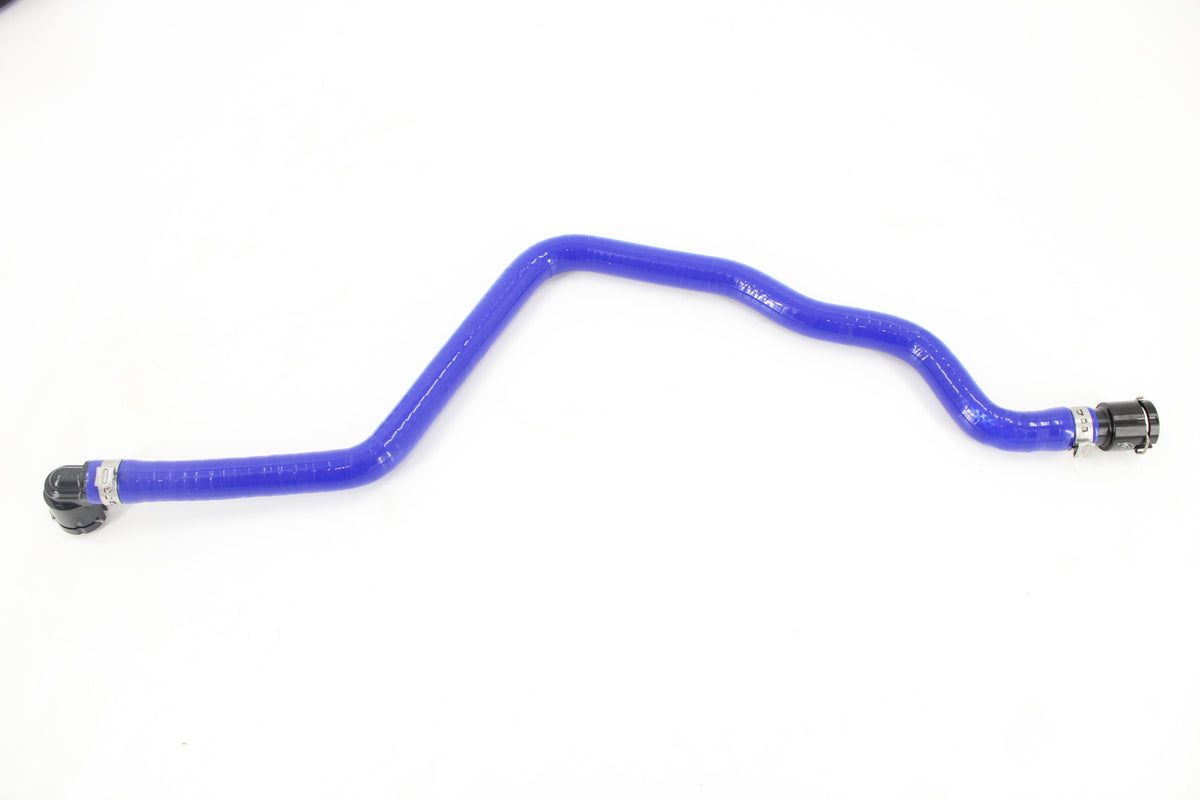

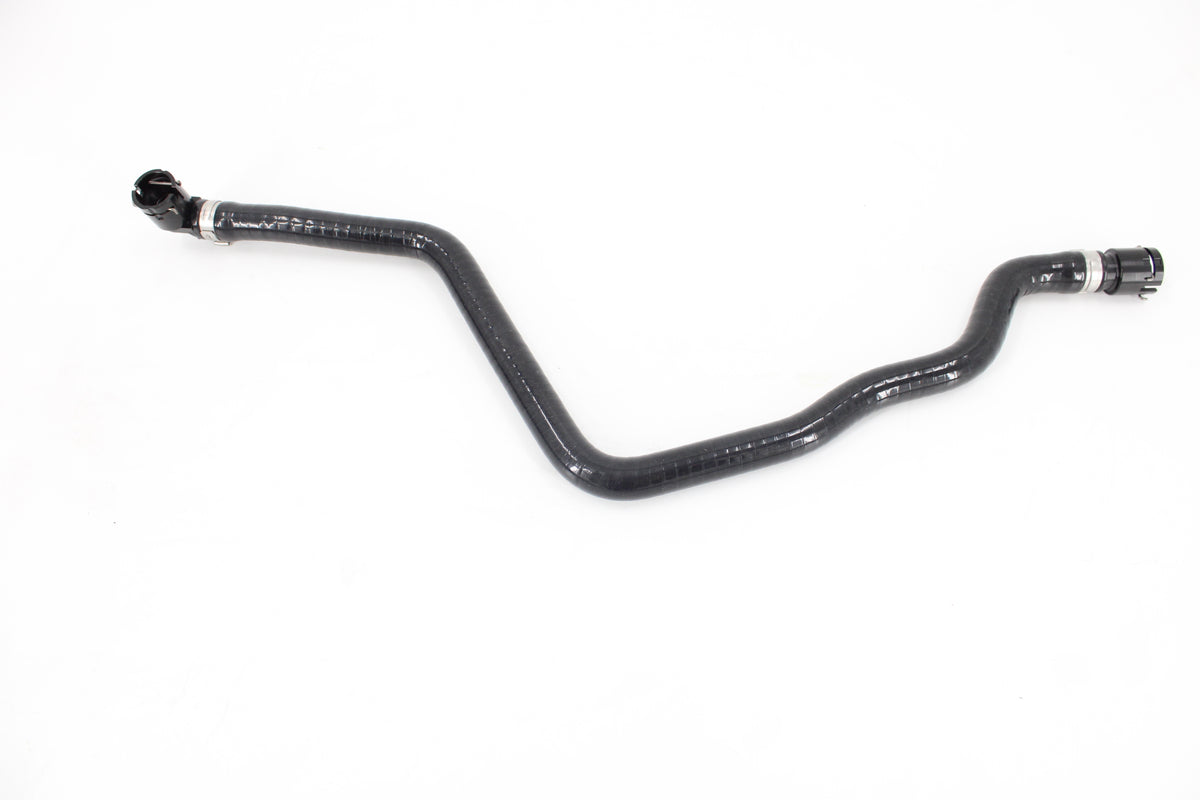

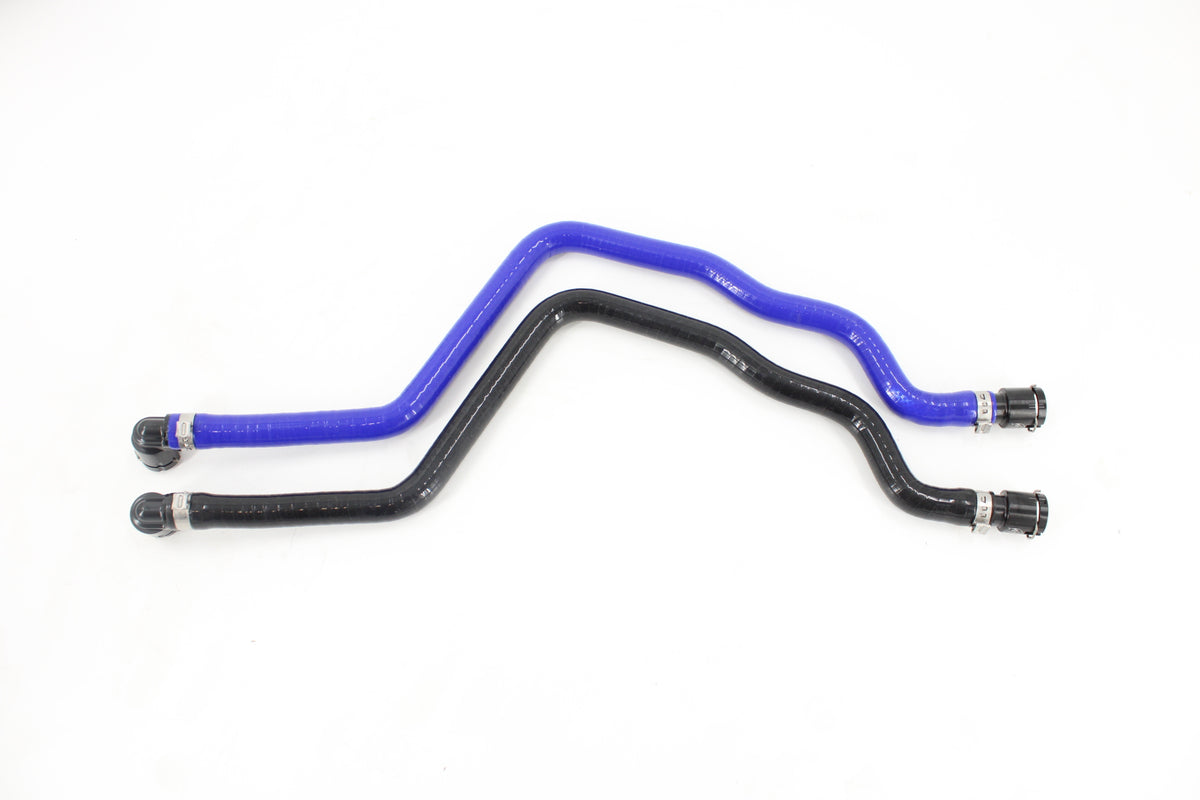

Vent Hose
Part 17128616555 was found on the following vehicles:
• 1′ F20 LCI (09/2015 — 06/2019)
• 1′ F21 LCI (09/2015 — 06/2019)
• 2′ F22 (09/2015 — 06/2017)
• 2′ F22 LCI (09/2016 — 12/2019)
• 2′ F23 (09/2015 — 06/2017)
• 2′ F23 LCI (10/2016 — 12/2019)
• 3′ F30 LCI (10/2014 — 10/2018)
• 3′ F31 LCI (10/2014 — 06/2019)
• 3′ F34 GT LCI (09/2015 — 12/2019)
• 4′ F32 (04/2015 — 02/2017)
• 4′ F32 LCI (05/2016 — 12/2019)
• 4′ F33 (03/2015 — 02/2017)
• 4′ F33 LCI (05/2016 — 12/2019)
• 4′ F36 Gran Coupé (03/2015 — 02/2017)
• 4′ F36 Gran Coupé LCI (05/2016 — 12/2019)

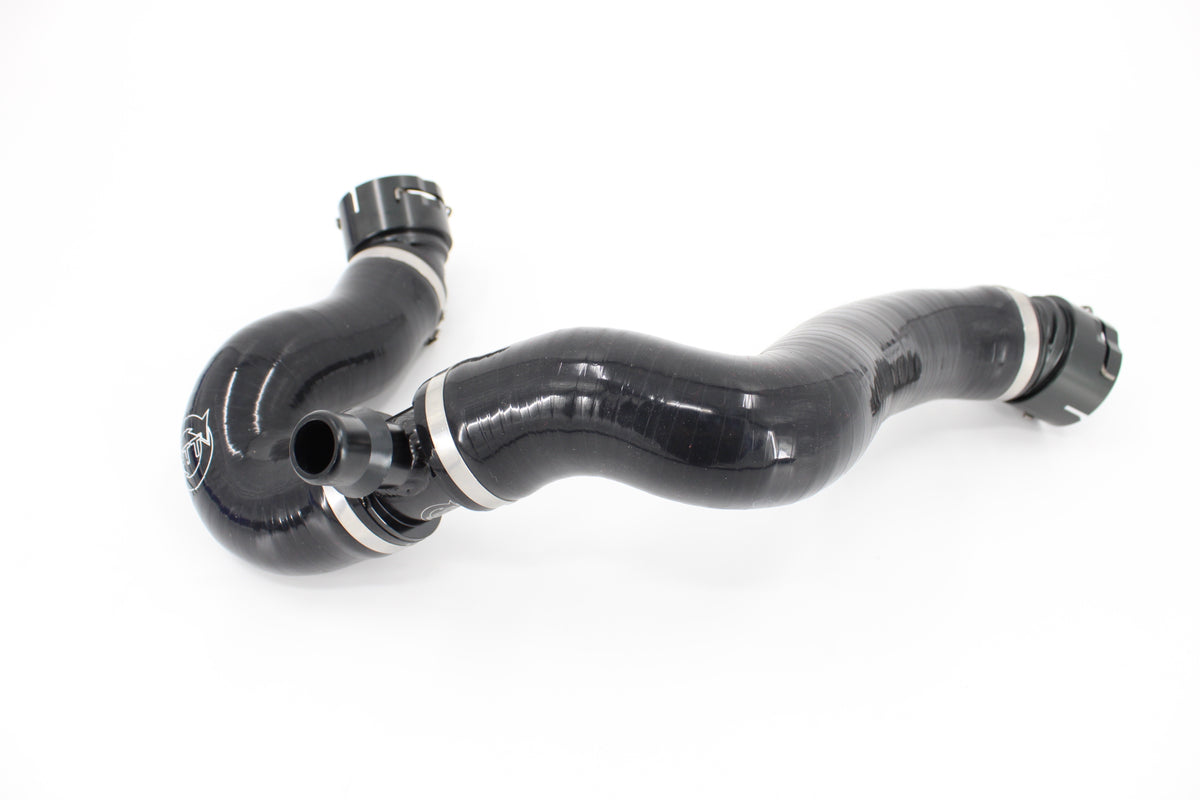

Passenger Side lower Radiator hose
Part 17128633482 was found on the following vehicles:
• 2′ F22 (09/2015 — 06/2017)
• 2′ F22 LCI (10/2016 — 12/2019)
• 3′ F30 LCI (10/2014 — 10/2018)
• 4′ F32 (09/2015 — 02/2017)
• 4′ F32 LCI (07/2016 — 12/2019)
• 4′ F33 (09/2015 — 02/2017)
• 4′ F36 Gran Coupé (10/2015 — 02/2017)
• 4′ F36 Gran Coupé LCI (07/2016 — 12/2019)

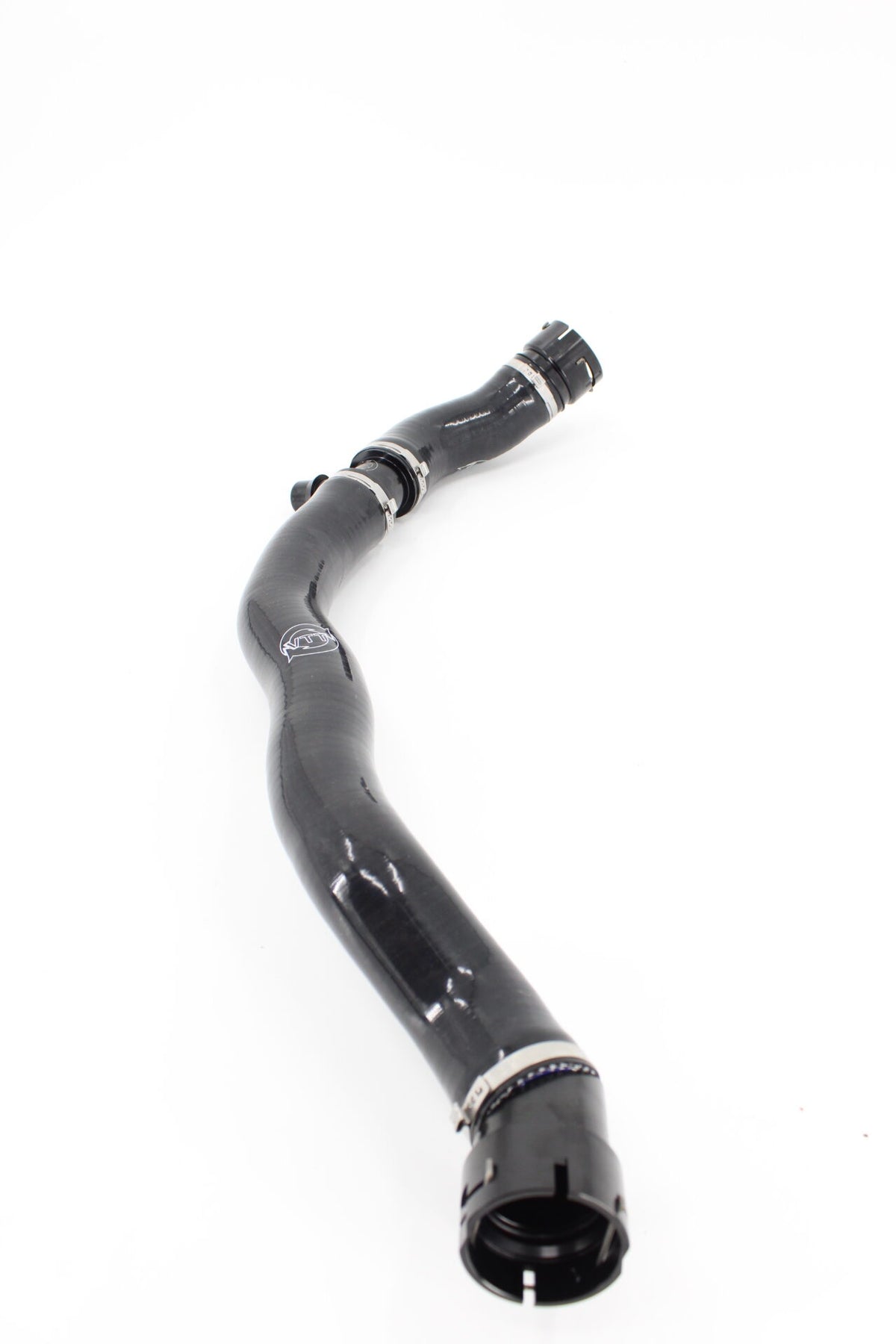

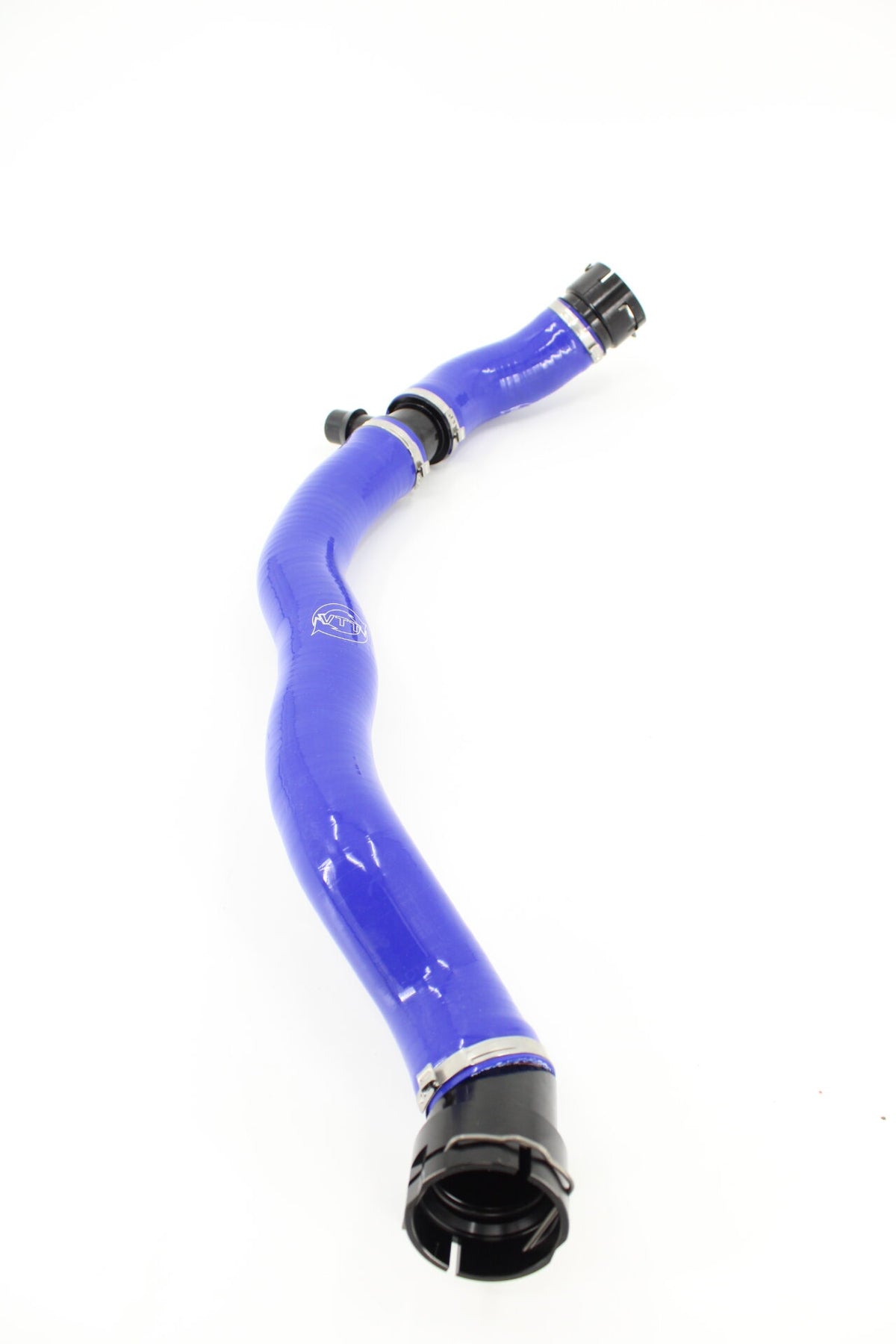

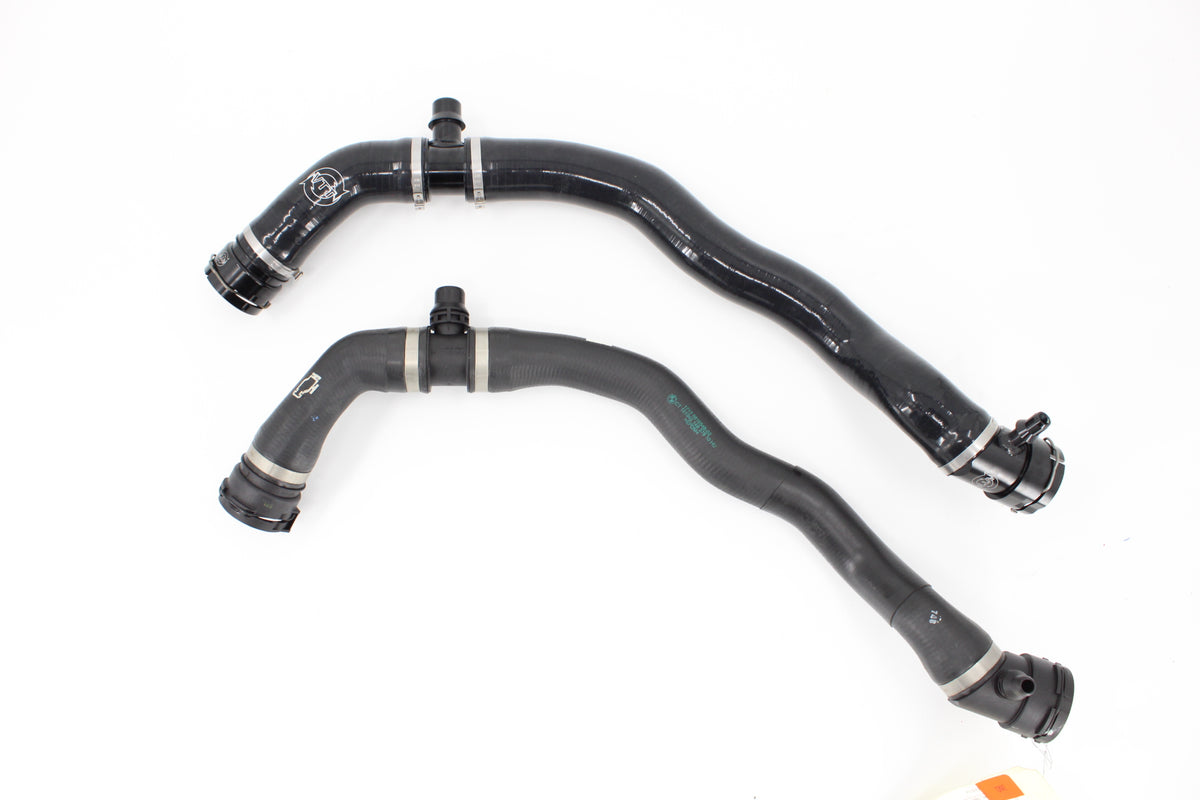

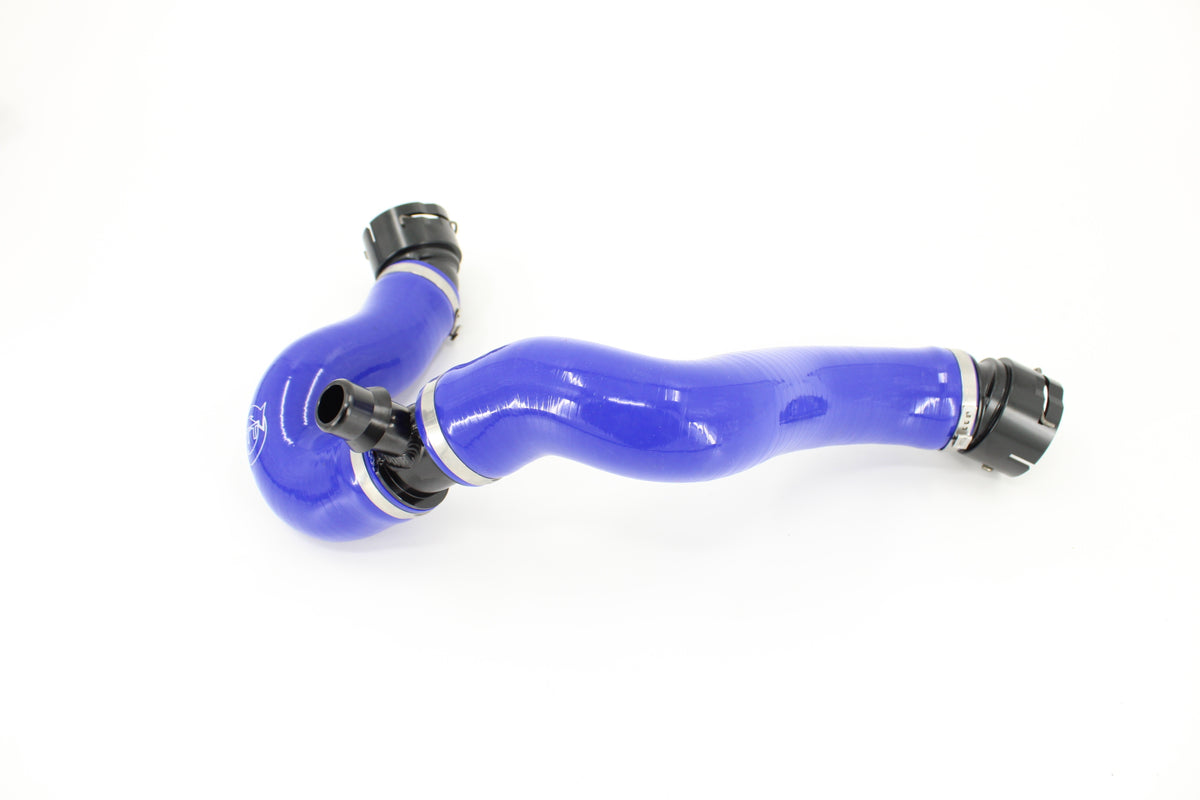

Driver Side Upper Radiator Hose
Part 17128616548 was found on the following vehicles:
• 1′ F20 LCI (09/2015 — 06/2019)
• 1′ F21 LCI (09/2015 — 06/2019)
• 2′ F22 (09/2015 — 06/2017)
• 2′ F22 LCI (09/2016 — 12/2019)
• 2′ F23 (09/2015 — 06/2017)
• 2′ F23 LCI (10/2016 — 12/2019)
• 3′ F30 LCI (10/2014 — 10/2018)
• 3′ F31 LCI (10/2014 — 06/2019)
• 3′ F34 GT LCI (09/2015 — 12/2019)
• 4′ F32 (04/2015 — 02/2017)
• 4′ F32 LCI (05/2016 — 12/2019)
• 4′ F33 (03/2015 — 02/2017)
• 4′ F33 LCI (05/2016 — 12/2019)
• 4′ F36 Gran Coupé (03/2015 — 02/2017)
• 4′ F36 Gran Coupé LCI (05/2016 — 12/2019)

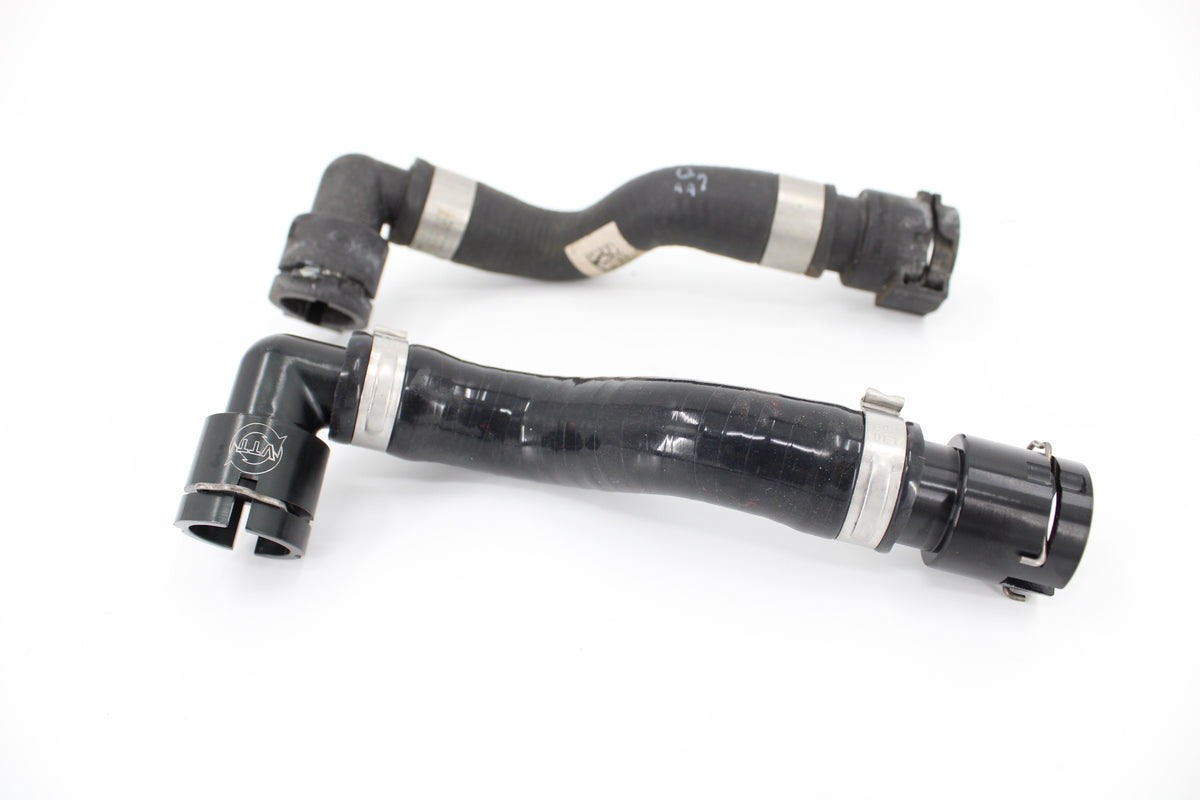

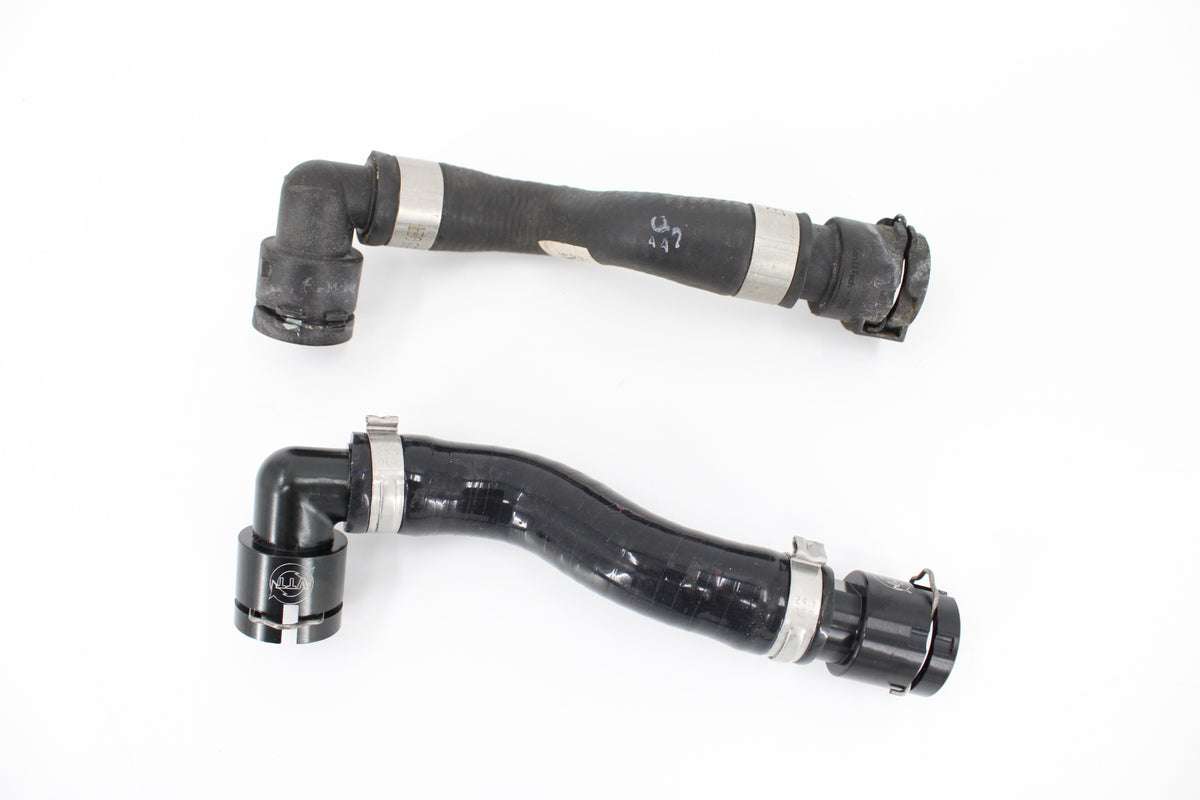

Radiator to expansion tank hose
Part 17128620944 was found on the following vehicles:
• 1′ F20 LCI (09/2015 — 06/2019)
• 1′ F21 LCI (09/2015 — 06/2019)
• 2′ F22 (09/2015 — 06/2017)
• 2′ F22 LCI (09/2016 — 12/2019)
• 2′ F23 (09/2015 — 06/2017)
• 2′ F23 LCI (09/2016 — 12/2019)
• 3′ F30 LCI (09/2014 — 03/2019)
• 3′ F31 LCI (09/2014 — 06/2019)
• 3′ F34 GT LCI (09/2015 — 12/2019)
• 3′ F35 LCI (07/2015 — 03/2019)
• 4′ F32 (04/2015 — 02/2017)
• 4′ F32 LCI (05/2016 — 12/2019)
• 4′ F33 (03/2015 — 02/2017)
• 4′ F33 LCI (05/2016 — 12/2019)
• 4′ F36 Gran Coupé (03/2015 — 03/2017)
• 4′ F36 Gran Coupé LCI (05/2016 — 12/2019)
