Modular Fuel Filter

MODULAR FUEL FILTER
Customizable Input, Output & Filtration | E85 Compatible | Track-Proven Performance

The Precision Raceworks Modular Fuel Filter offers a fully customizable, high-performance fuel filtration solution designed for maximum flexibility and reliability. This complete kit includes everything you need to build your ideal inline fuel filter - select your preferred input cap, output cap, and filter element to match your fuel system's specific layout and performance goals.

Each component is precision CNC-machined from anodized aluminum for long-term durability and is fully compatible with all blends of pump gas and E85. The internal filter element is made in the USA and available in either 6 micron or 10 micron ratings depending on your filtration requirements.

Included in the kit is a universal billet mounting bracket to make installation clean and secure in any engine bay or underbody setup.

Modular Components - Choose Your Setup:

• Input Cap Options:

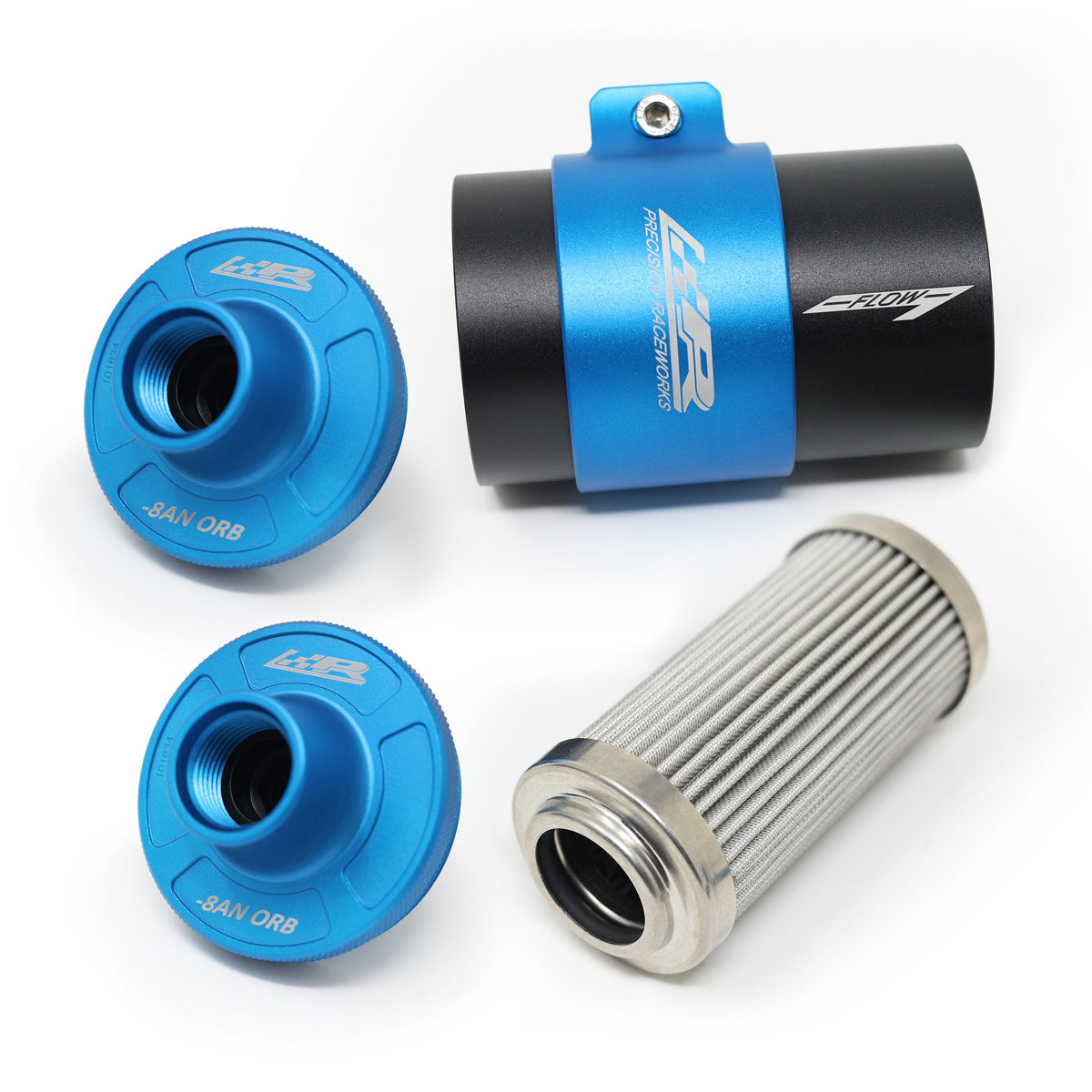

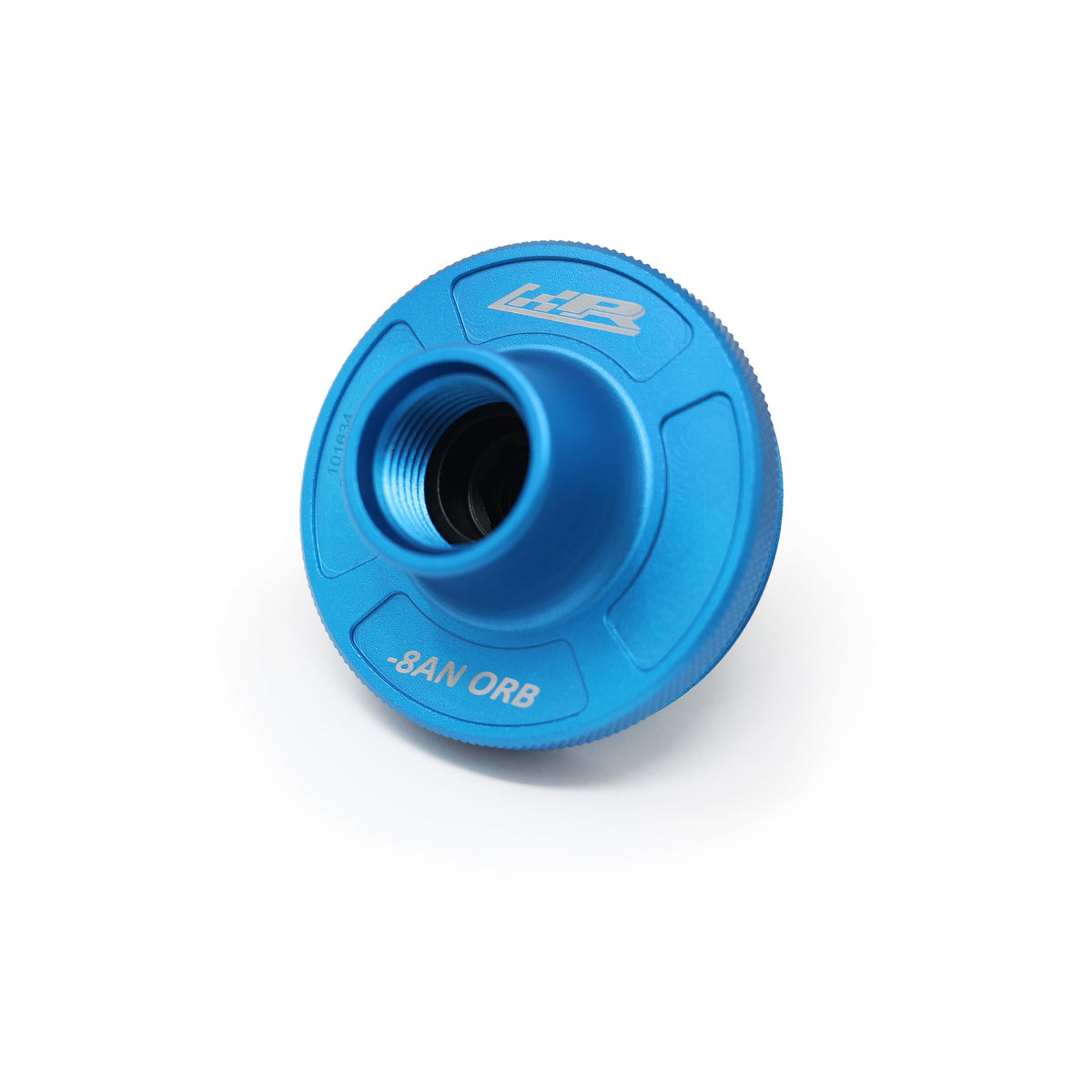

  - AN8 ORB Input

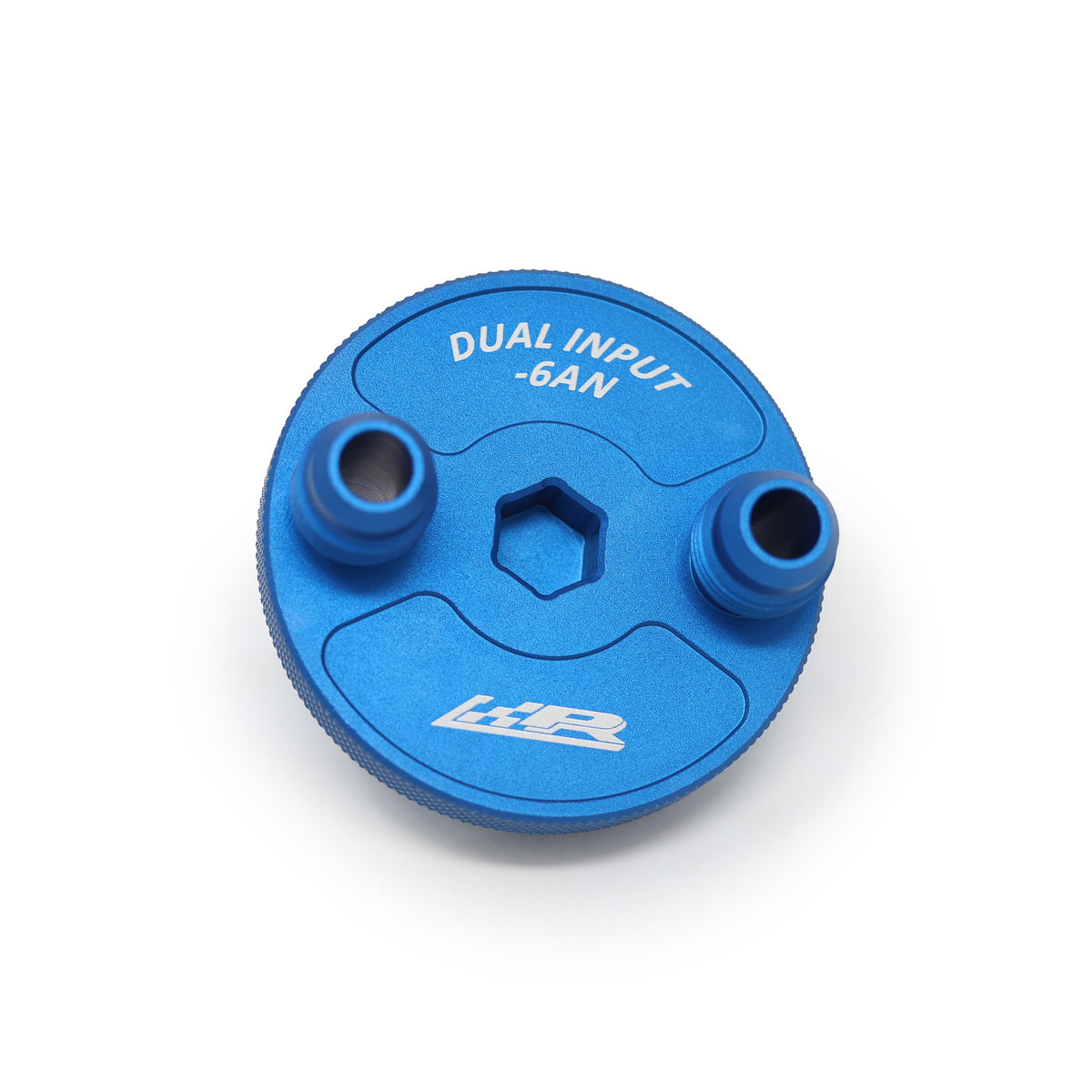

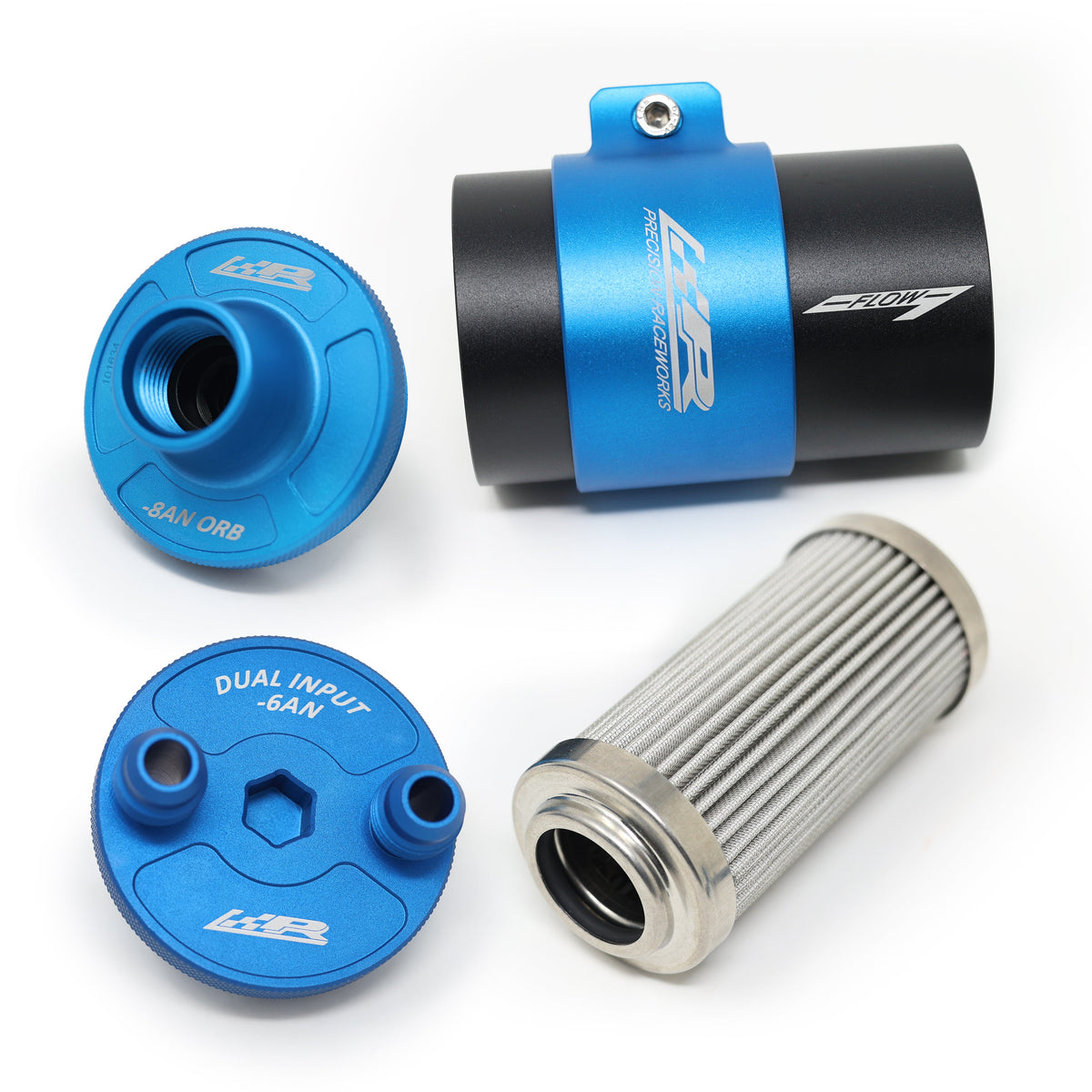

  - Dual AN6 Inputs

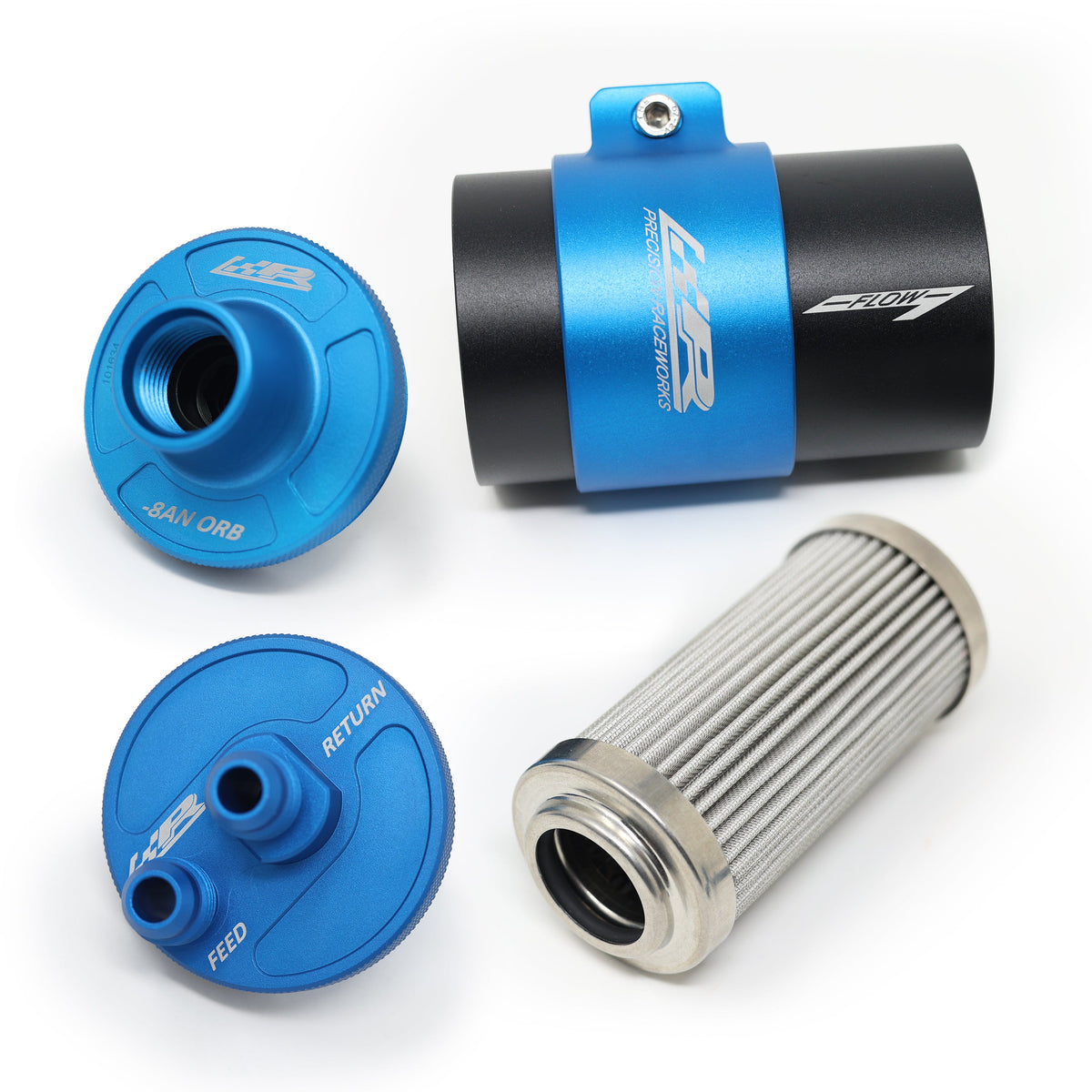

  - AN6 Input w/ Regulated AN6 Return (Includes 4, 5, or 6 BAR static regulator)
  - AN6 Input to AN6 Output (No Regulator)

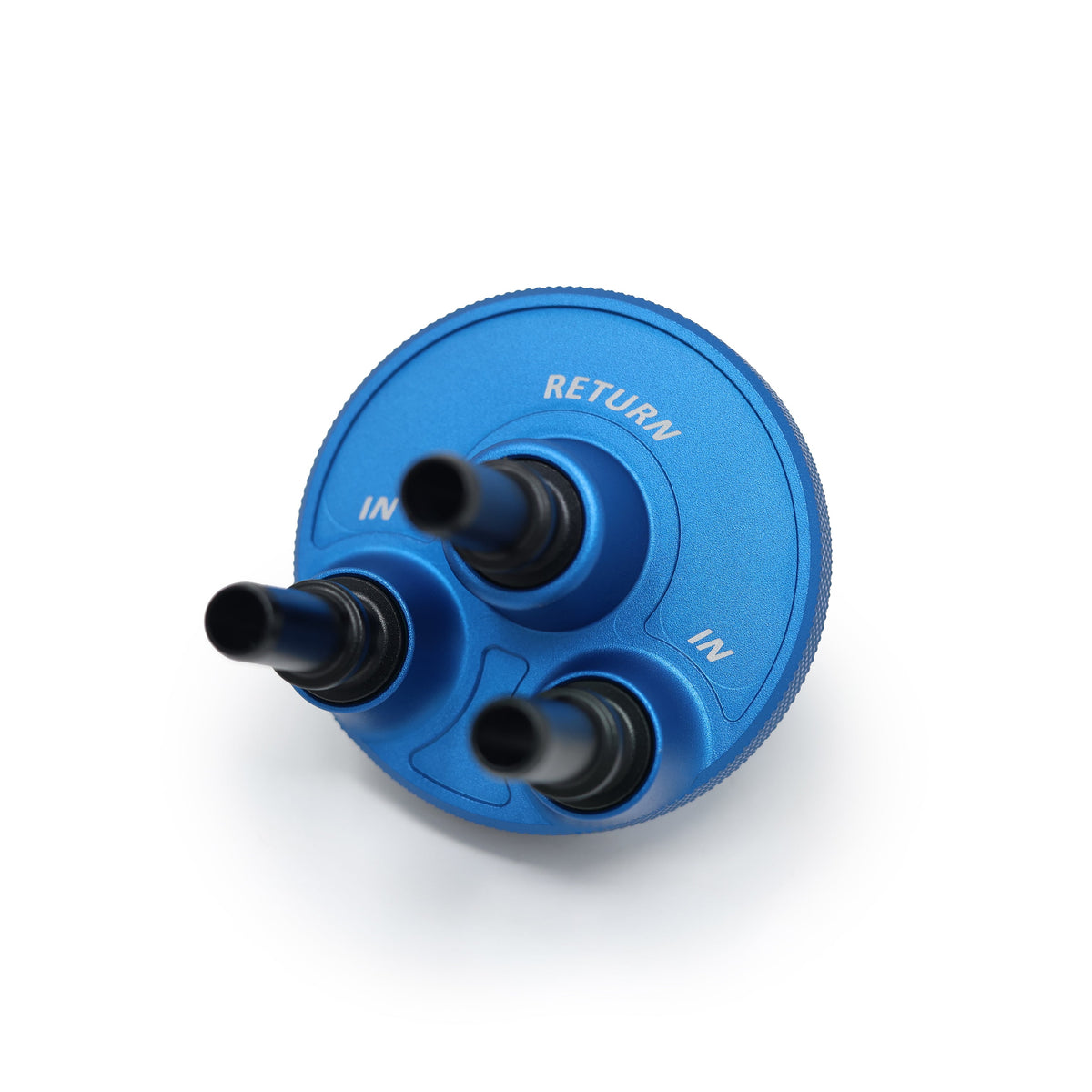

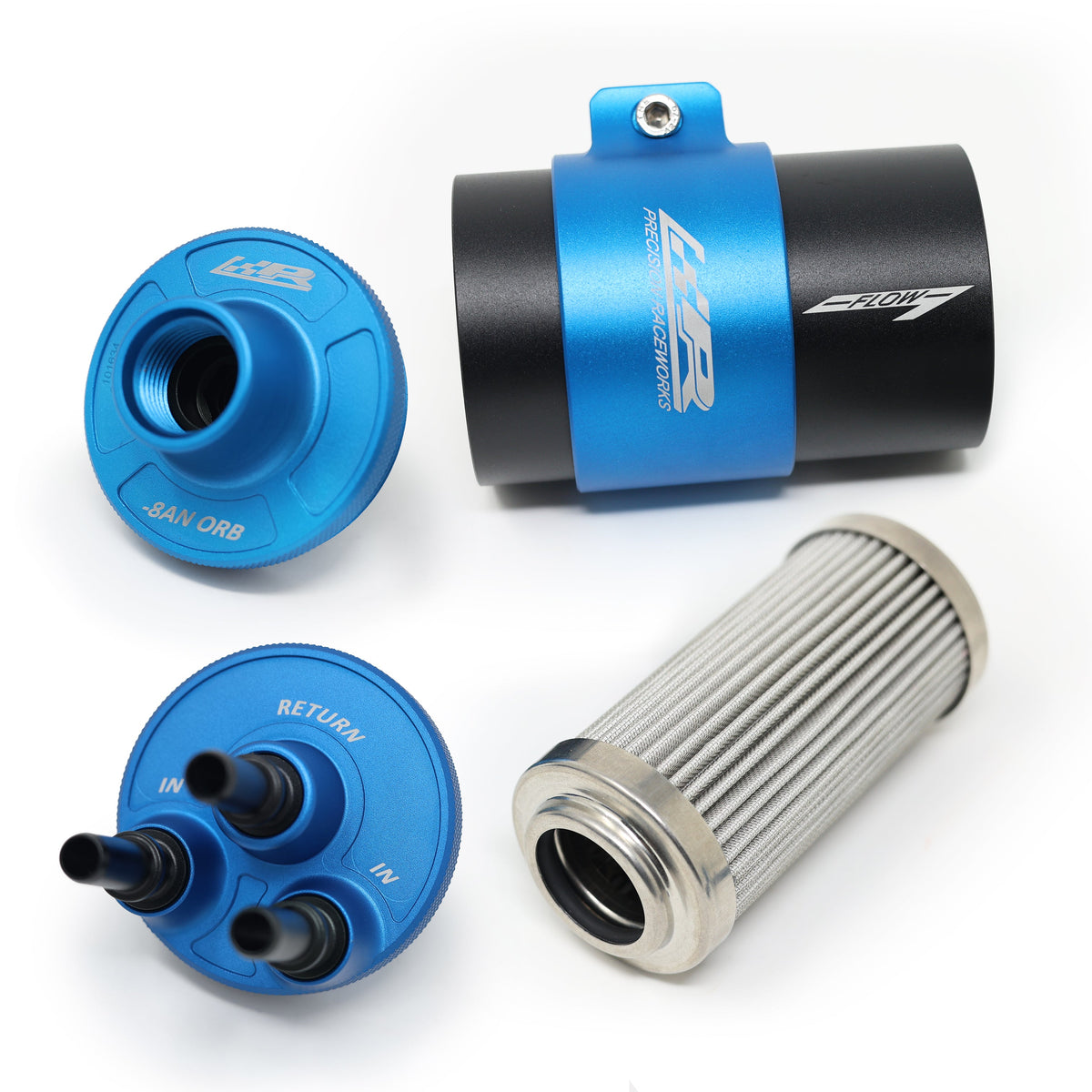

  - Dual 7.89mm Quick Connect Input w/ Regulated Return

• Output Cap Options:
  - AN8 ORB Output
  - AN8 ORB Output w/ Integrated Check Valve
  - Flat Cap (No Output, for use with regulated input cap)

• Filter Element Options:
  - 6 Micron (Recommended for post-pump or pre-rail filtration)
  - 10 Micron (Ideal for pre-pump or general system filtration)

Key Features:

• Modular design - assemble your ideal fuel filter

• All components anodized for E85 compatibility

• Made in USA internal filter element

• Includes billet aluminum mounting bracket


**To Adapt the AN8 ORB to AN6 Male Flare use this fitting.

**To Adapt the AN8 ORB to AN6 Female ORB use this fitting.

Whether you're running a boosted street car or a full track build, the Modular Fuel Filter gives you professional-grade performance with the flexibility to adapt to any fuel system.
