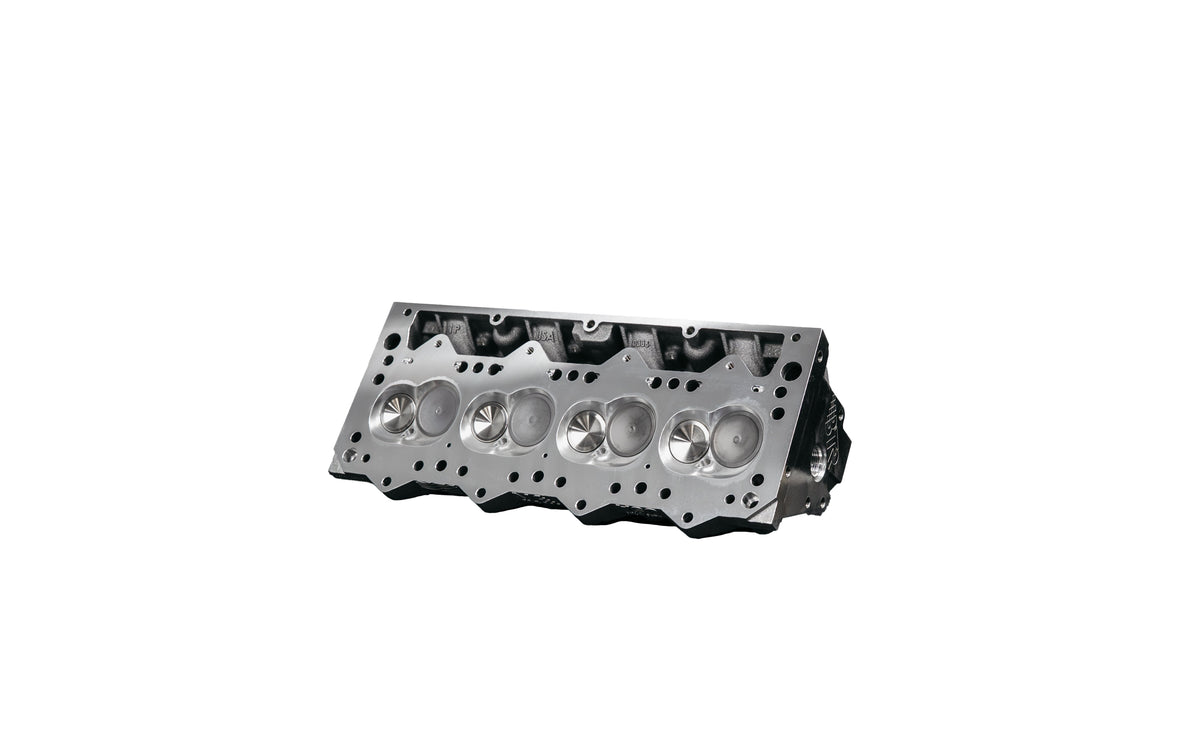

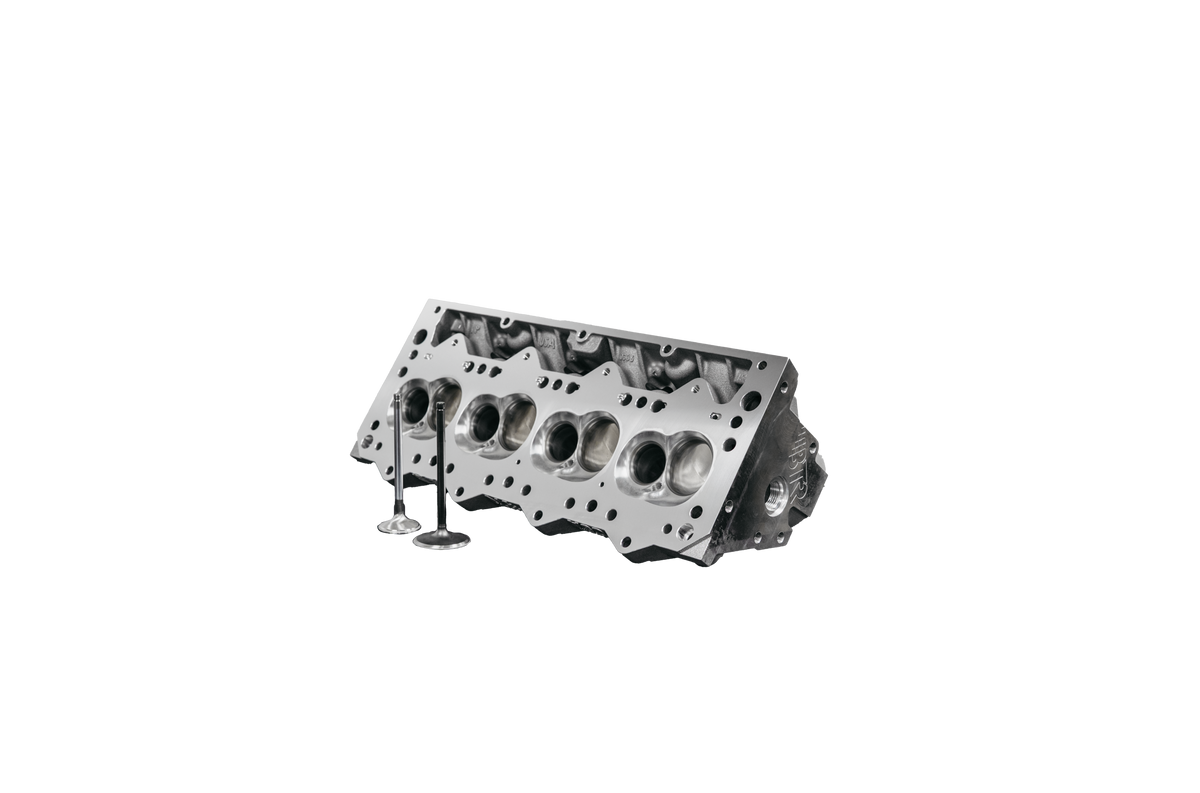

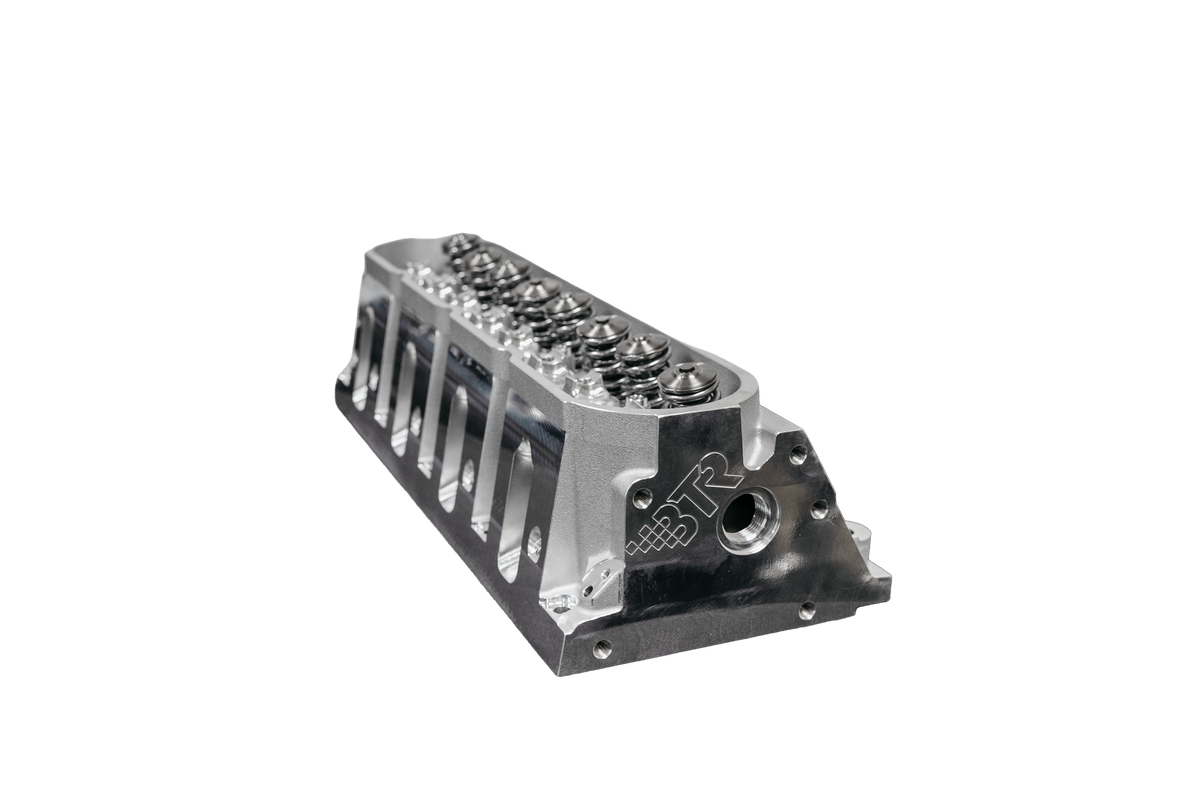

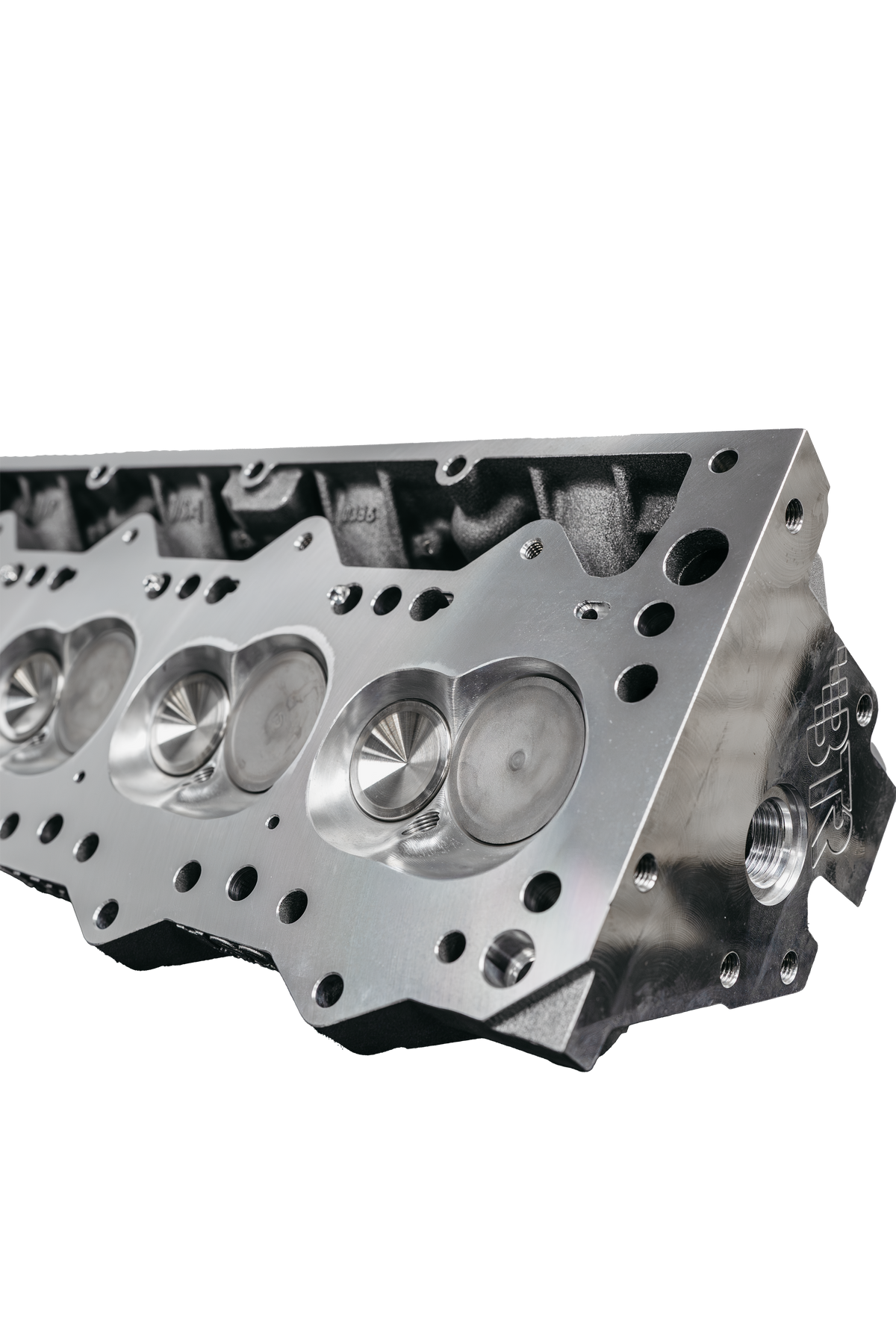

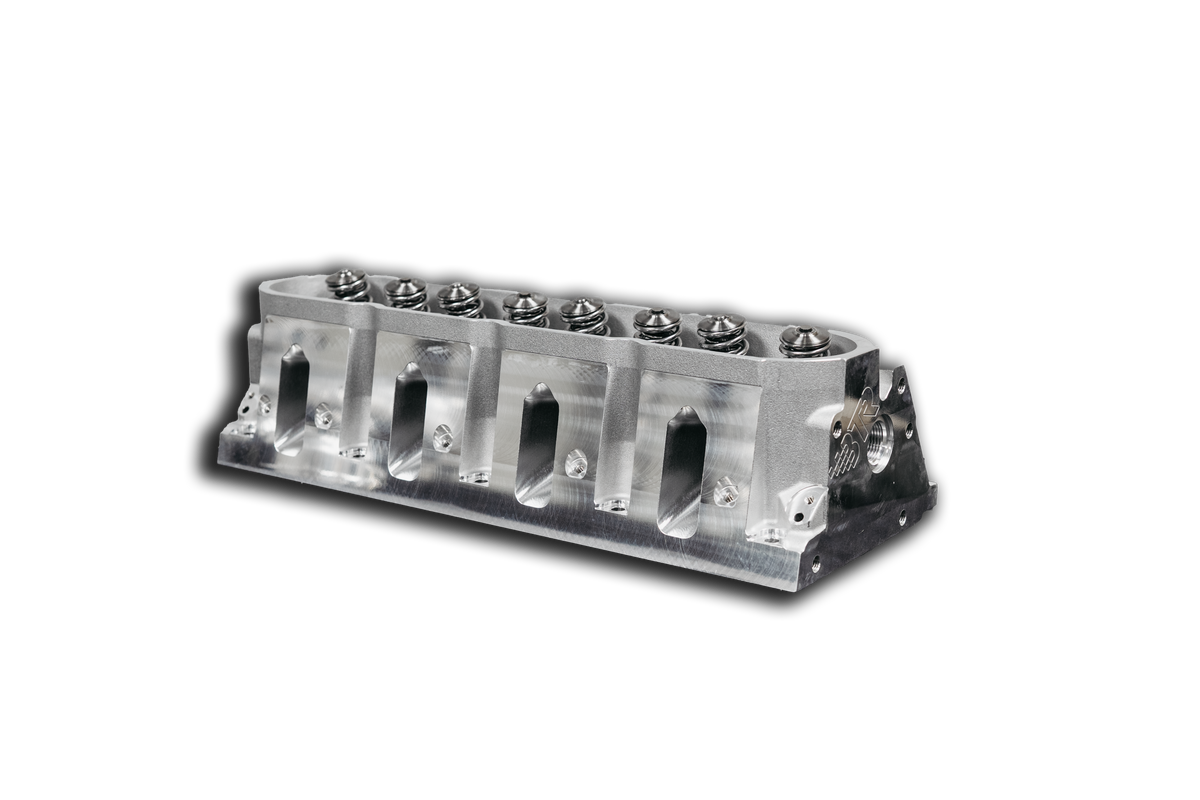

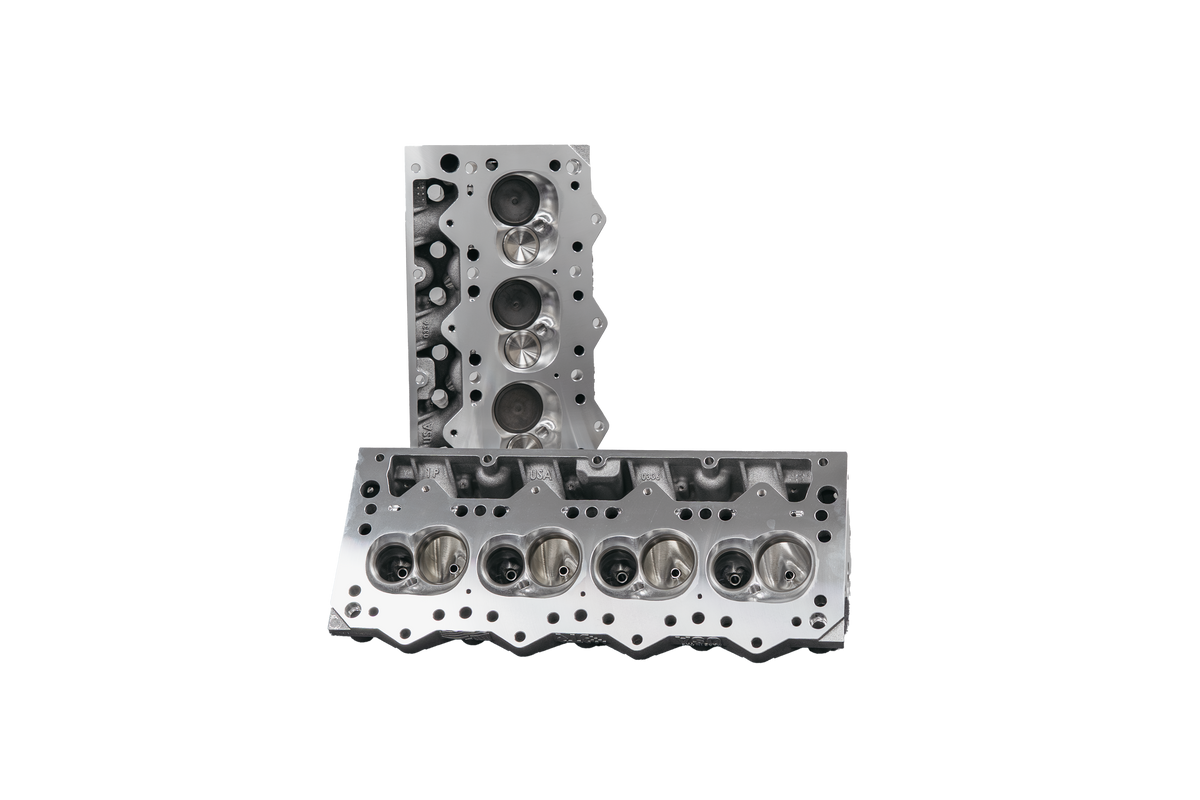

LME PORTED BTR CATHEDRAL PORT CANTED VALVE HEADS
$4,495.00

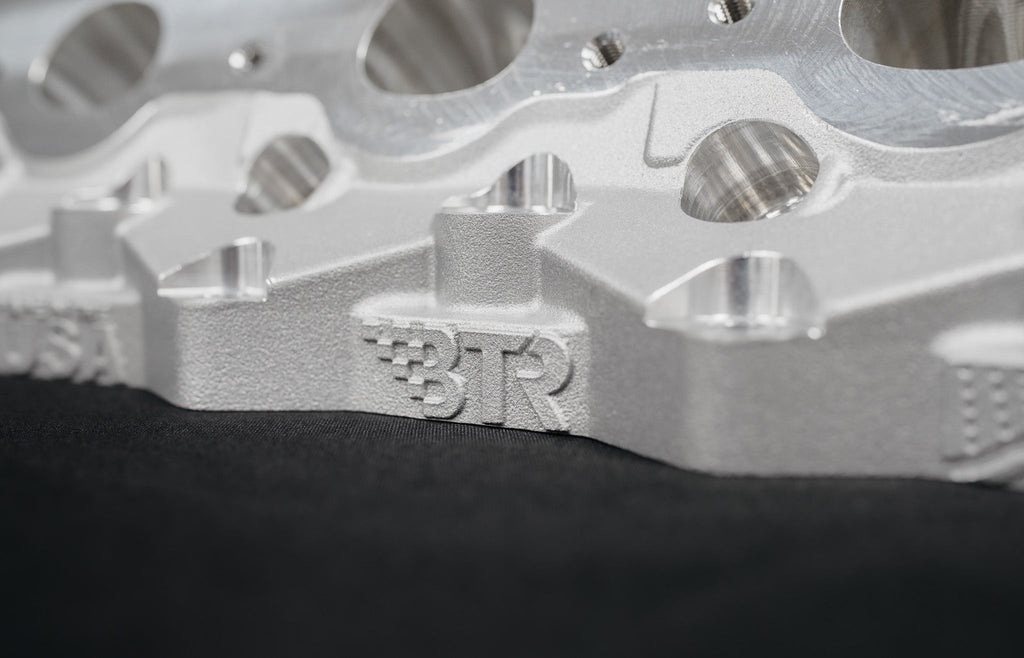

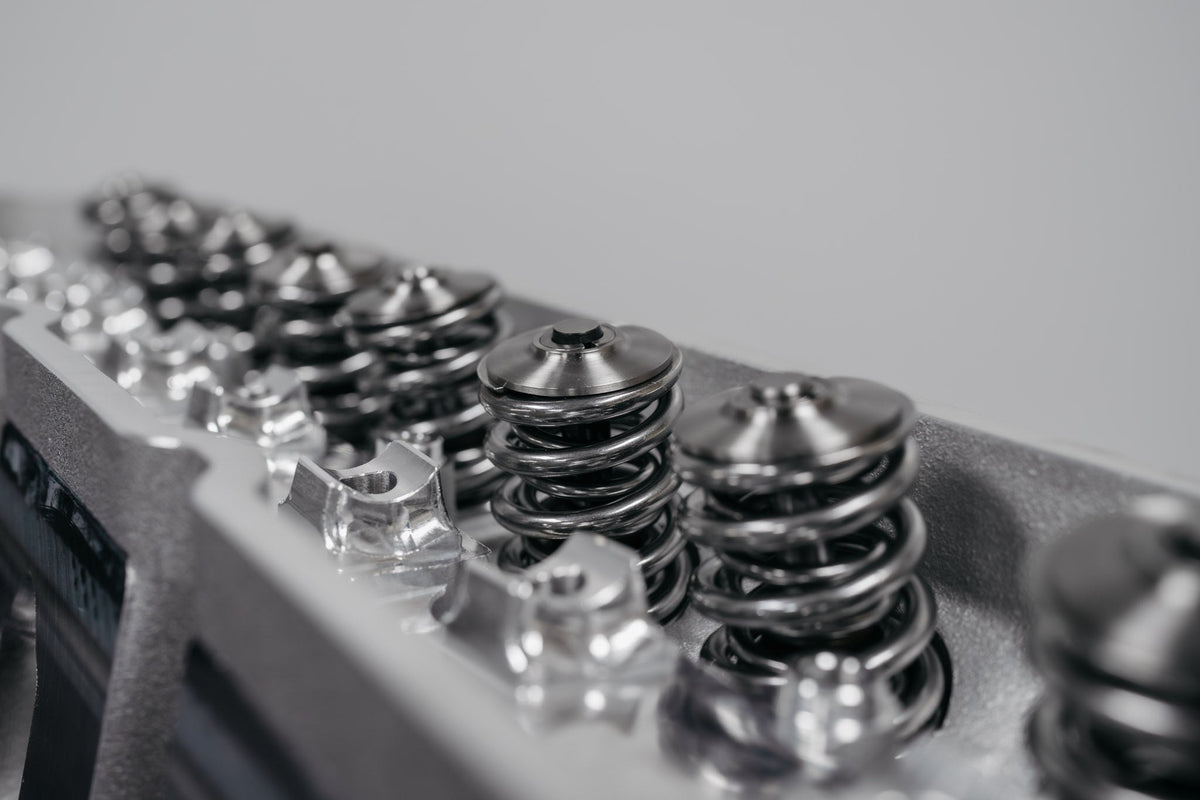

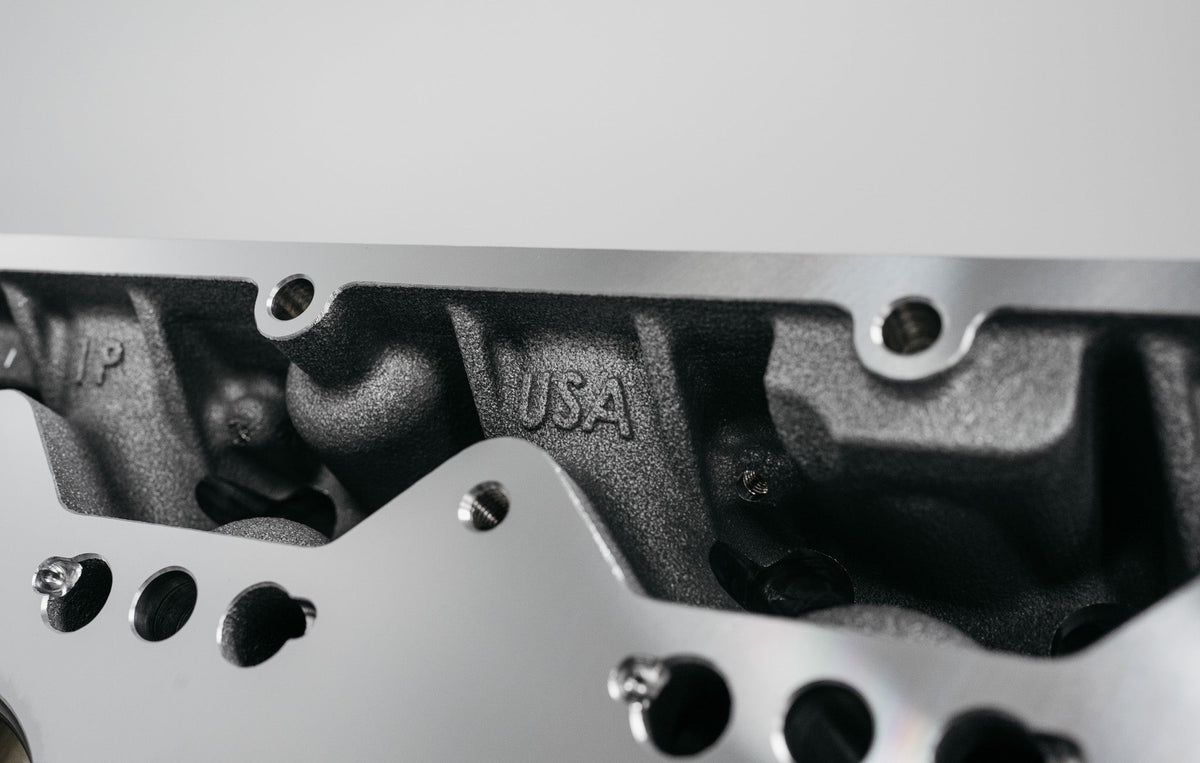

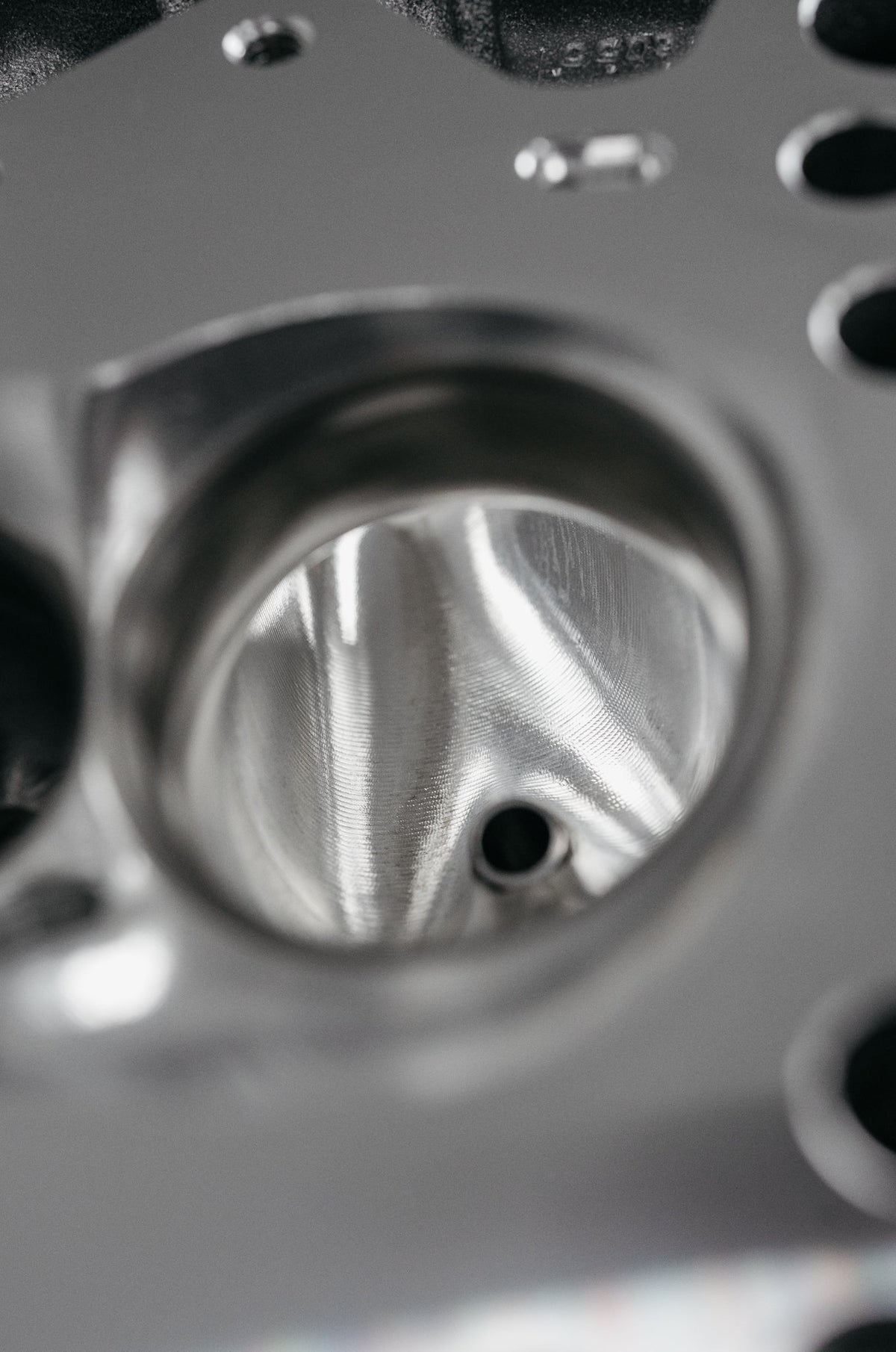

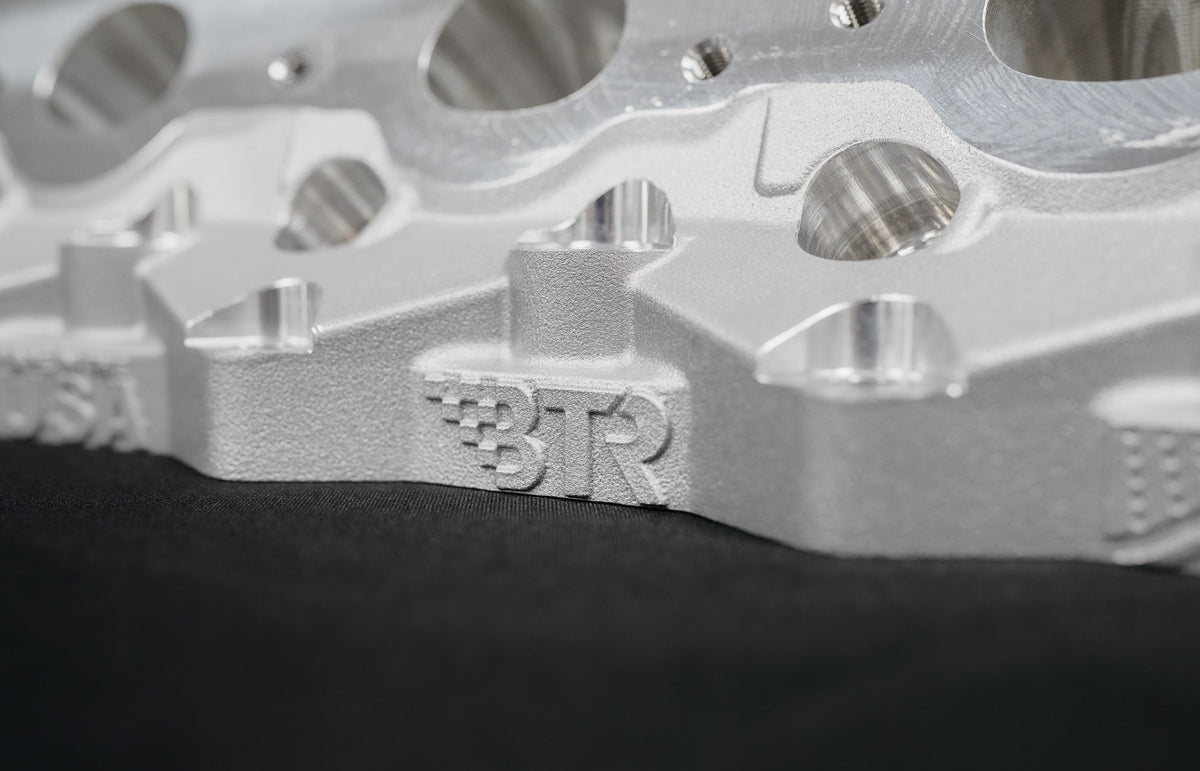

Our friends at BTR did a fantastic job getting a set of LT1/LT4 valves to fit in a cathedral port head. This head casting took years to develop. After receiving these castings our cylinder head R&D department got to work making a port that demolished any cathedral port we have done to date! We are happy to offer these heads completely done and assembled to your specifications. These are in stock and will ship in 2-3 days!
CHAMBER SIZE 61CC
INTAKE RUNNER VOLUME 250CC
EXHAUST RUNNER VOLUME 89CC
| 3.900" BORE | 4.000" BORE | 4.100" Bore |
| LIFT | INTAKE | EXHAUST | INTAKE | EXHAUST | INTAKE | EXHAUST |
| .100 | 79 | 69 | 82 | 69 | 83 | 70 |
| .200 | 151 | 129 | 155 | 128 | 154 | 129 |
| .300 | 221 | 175 | 233 | 178 | 237 | 179 |
| .400 | 278 | 212 | 295 | 218 | 301 | 222 |
| .500 | 330 | 230 | 341 | 239 | 350 | 245 |
| .600 | 356 | 241 | 369 | 248 | 375 | 257 |
| .650 | 363 | 245 | 376 | 251 | 355 | 260 |
| .700 | 370 | 250 | 351 | 255 | 352 | 262 |
| .750 | 341 | 254 | 351 | 258 | 350 | 265 |
| .800 | 342 | 257 | 350 | 260 | 352 | 266 |
