Katech LS7 Torquer 110 Camshaft
$499.99
Katech LS7 Torquer 110 Camshaft
LS7 Performance Camshaft Engineering with a 110° Lobe Separation Angle, Backed by Katech's Racing Heritage.
The Katech LS7 Torquer 110 Camshaft brings Katech's engine and valvetrain development experience to LS7 performance builds. Its profile features 220°/244° duration at .050", .615"/.648" valve lift, a 110° lobe separation angle, and +4° camshaft advance.
Camshaft selection should account for the complete engine combination, including compression ratio, cylinder heads, intake and exhaust systems, and intended use. Final power, idle quality, driveability, and operating range depend on these components and the ECU calibration.
Katech's camshaft development draws on decades of racing engine experience and Optron Spin Cell valve motion analysis. This engineering process allows Katech to evaluate valvetrain behavior and guide camshaft and supporting component selection.
Features & Benefits
- LS7 Application: A Performance Camshaft Profile for LS7 Engine Builds
- 220°/244° Duration at .050": Intake and Exhaust Duration Specifications
- .615"/.648" Valve Lift: Listed Intake and Exhaust Valve Lift Specifications
- 110° Lobe Separation Angle: Defines the Torquer 110 Profile
- +4° Camshaft Advance: Specified Advance for Camshaft Timing Verification
- Optron Spin Cell Development: Valve Motion Analysis Supports Katech's Valvetrain Engineering Process
- Racing Heritage Since 1977: Decades of Performance Engine and Valvetrain Development Experience
Technical Specifications
| Specification | Details |
|---|---|
| Intake Duration @ .050" | 220° |
| Exhaust Duration @ .050" | 244° |
| Intake Valve Lift | .615" |
| Exhaust Valve Lift | .648" |
| Lobe Separation Angle | 110° |
| Specified Camshaft Advance | +4° |
| Engine Application | LS7 |
Supporting Valvetrain
The Katech LS7 Torquer 110 Camshaft should be paired with valvetrain components selected for its profile, valve lift, and intended operating range. Contact Katech Technical Sales for valve spring, lifter, pushrod, retainer, and locator recommendations for your specific build.
Fitment
Chevrolet / General Motors: LS7 Engine Applications.
Contact Katech Technical Sales to confirm compatibility with your engine configuration and supporting valvetrain components before ordering.
Important Installation Notes
- Camshaft Timing: Verify Installed Timing Against the Cam Card
- Valvetrain Setup: Verify Valve Spring Suitability, Installed Height, Coil Bind Clearance, and Retainer-to-Seal Clearance
- Piston-to-Valve Clearance: Check Clearance for the Completed Engine Combination
- Pushrod Length & Lifter Preload: Verify During Installation
- ECU Calibration: Required
- Professional Installation: Recommended for Proper Setup and Verification
Why Choose Katech
Katech has been involved in the racing industry since 1977, with engine development experience that includes the Corvette C5-R race program. That heritage informs our approach to performance camshaft and valvetrain development.
Our Optron Spin Cell technology allows Katech engineers to analyze valve motion during operation and evaluate valvetrain control. This development process helps guide camshaft and component combinations with power and durability in mind.
Contact Katech Technical Sales to discuss the Katech LS7 Torquer 110 Camshaft and the supporting components appropriate for your LS7 engine build.

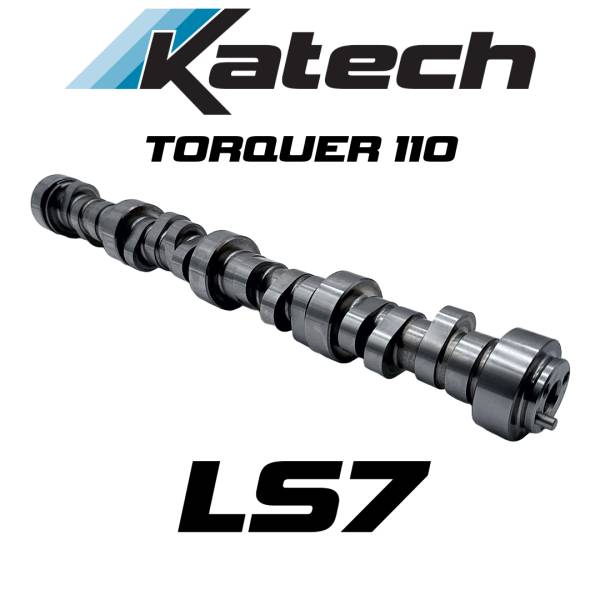

NOTE: The image shown is for illustrative purposes only and may not be an exact representation of the actual product.
