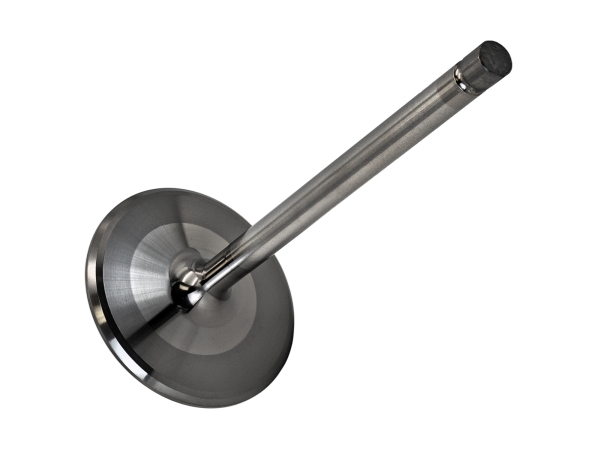

Katech LS7 2.200" Titanium Molybdenum Intake Valve Set
$1,799.92
Katech LS7 2.200" Titanium Molybdenum Intake Valve Set
Matching Titanium Intake Valves for Compatible Bronze-Guided LS7 Cylinder Head Assemblies.
The Katech LS7 2.200" Titanium Molybdenum Intake Valve Set brings matching intake valves together for assembling or updating a compatible LS7 cylinder head pair. Each valve features Chrome Nitride coating and a back-cut stem with molybdenum coating.
Application Requirements: Use with bronze valve guides only. The design updated in 2023 retains the factory lash cap configuration.
Features & Benefits
- Matching Intake Valves for Compatible LS7 Cylinder Heads
- Lightweight Titanium Construction
- Chrome Nitride Coating
- Back-Cut Stems with Molybdenum Coating
Technical Specifications
- Product Type: Intake Valve Set
- Engine Application: GM LS7 with Compatible Cylinder Heads
- Head Diameter: 2.200 Inches
- Material: Titanium
- Individual Valve Weight: 77 Grams
- Coatings: Chrome Nitride and Molybdenum Stem Coating
- Lash Cap Configuration: Retains Factory Lash Cap
What's Included
- Eight Titanium Molybdenum Intake Valves
Lash caps, exhaust valves, valve guides, seals, springs, retainers, and valve locks are not included.
Vehicle & Engine Fitment
Chevrolet:
- 2006-2013 Chevrolet C6 Corvette Z06 with LS7 Engine
- 2014-2015 Chevrolet Gen 5 Camaro Z/28 with LS7 Engine
Also suitable for custom LS7 builds using compatible cylinder heads and bronze guides. Confirm valve dimensions and the supporting component configuration before ordering.
Installation & Compatibility Notes
- Use with Bronze Valve Guides Only
- Inspect Lash Caps for Wear and Verify Correct Fit
- Verify Valve Dimensions and Valve Seat Compatibility
- Check Valve Guide Clearance for the Selected Valve Material and Coatings
- Confirm Valve Lock, Retainer, and Valve Seal Compatibility
- Check Spring Installed Height and Spring Pressures
- Verify Coil Bind and Retainer-to-Seal Clearance at Maximum Valve Lift
- Check Piston-to-Valve Clearance
Why Choose Katech
The Katech LS7 2.200" Titanium Molybdenum Intake Valve Set supports coordinated component selection across both cylinder heads. Matching the valves with the bronze guides, lash caps, and spring package helps establish the intended LS7 intake valvetrain configuration.
For intake valve, bronze guide, and lash cap compatibility questions, contact .
