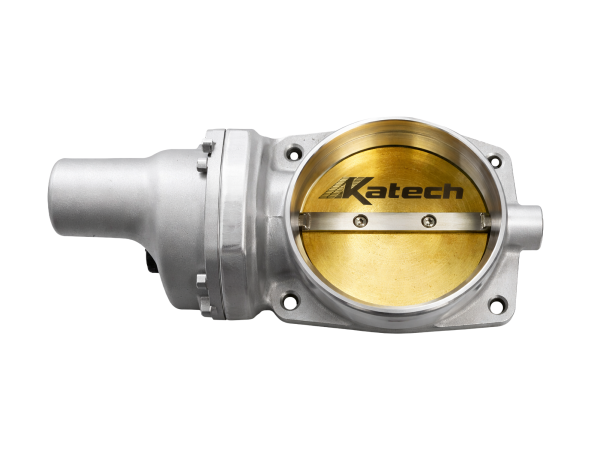

Katech LS3/LS7/L76/L99 90MM CNC Ported Throttle Body
$529.99
Katech LS3/LS7/L76/L99 90MM CNC Ported Throttle Body
GM Gold-Blade Throttle Body with CNC Porting for Compatible LS Applications.
The Katech LS3/LS7/L76/L99 90MM CNC Ported Throttle Body starts with a new GM 90mm throttle body and features CNC porting to improve airflow and throttle response compared with the stock unit. This gold-blade version uses a six-pin electrical connector.
No Core Required. Purchase includes a new ported throttle body without sending in your existing unit.
Features & Benefits
- New GM Throttle Body No Core Exchange Required
- CNC Porting for Improved Airflow and Throttle Response
- 90MM Nominal Size
- Gold Throttle Blade
- Six-Pin Electrical Connector
Technical Specifications
- Product Type: CNC Ported Electronic Throttle Body
- Base Component: New GM Throttle Body
- Nominal Size: 90MM
- Blade: Gold
- Electrical Connector: Six-Pin
- Engine Applications: Compatible LS3, LS7, L76, and L99 Configurations
What's Included
- One Katech LS3/LS7/L76/L99 90MM CNC Ported Throttle Body
Vehicle & Engine Fitment
Chevrolet:
- 2010–2015 Chevrolet Camaro SS
- 2014–2015 Chevrolet Camaro Z/28
- 2011–2017 Chevrolet Caprice PPV with a Compatible V8 Throttle Body Configuration
- 2009–2013 Chevrolet Corvette Base, Grand Sport, and Z06 with the Compatible Gold-Blade Throttle Body Configuration
- 2014–2017 Chevrolet SS
Pontiac:
- 2008–2009 Pontiac G8 GT
- 2009 Pontiac G8 GXP
2009 Corvette Fitment: Compatible with late-2009 gold-blade applications only. Inspect the existing throttle body before ordering.
Installation & Compatibility Notes
- Confirm the Existing Gold-Blade Throttle Body Configuration
- Verify Six-Pin Electrical Connector Compatibility
- Check Mounting, Sealing, and Intake Connection Compatibility
- Verify Existing Components on Engine-Swapped or Modified Vehicles
Vehicle model and engine designation alone do not establish compatibility with every throttle body configuration.
Why Choose Katech
The Katech LS3/LS7/L76/L99 90MM CNC Ported Throttle Body combines a new GM component with CNC porting, allowing you to retain your original throttle body while upgrading a compatible gold-blade application.
For gold-blade, connector, and vehicle compatibility questions, contact .
