Katech LS Billet Oil Cooler Adapter

Katech LS Billet Oil Cooler Adapter

Katech-Engineered Billet Aluminum Adapter with Included -10 AN Connections

The Katech LS Billet Oil Cooler Adapter provides a compact connection point for adding or upgrading an external oil cooler on compatible LS engine applications. Engineered and manufactured by Katech, the adapter utilizes existing oil cooler connection provisions to accommodate -10 AN oil cooler lines.

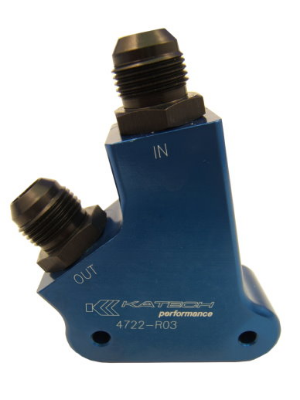

The blue billet aluminum body features clearly labeled IN and OUT ports and laser-etched Katech branding. Two adapter fittings are included to connect compatible -10 AN oil cooler lines.

The compact design takes nearby wiring, surrounding components, and full-length header clearance into consideration. Verify clearance with your specific engine and header combination during installation.

Oil Temperature Sensor Compatibility: The Katech LS Billet Oil Cooler Adapter does not include an oil temperature sensor provision. Applications requiring a sensor at this location need an appropriate alternative arrangement.

Features & Benefits

• Compact Billet Aluminum Construction
• Blue Anodized Finish
• Designed for External Oil Cooler Plumbing on Compatible LS Engines
• Includes Two Adapter Fittings for -10 AN Oil Cooler Lines
• Clearly Labeled IN and OUT Ports
• Compact Design Accommodates Nearby Wiring and Surrounding Components
• Designed with Full-Length Header Clearance in Mind
• Laser-Etched Katech Branding
• Uses M6 x 1.00 x 45mm Mounting Bolts and the Production Gasket
• No Oil Temperature Sensor Provision
• Proudly Engineered and Manufactured by Katech Engineering in Clinton Township, Michigan, USA

Technical Specifications

What's Included

• Katech LS Billet Oil Cooler Adapter
• Two Adapter Fittings for -10 AN Oil Cooler Lines

Additional Installation Components: Oil cooler lines, an appropriate cooler, M6 x 1.00 x 45mm mounting bolts, and the correct production gasket are required to complete the installation.

Oil Cooler Integration

The Katech LS Billet Oil Cooler Adapter supports external oil cooler installations using -10 AN lines. With compatible Ron Davis or DeWitts radiator-mounted oil cooler combinations, the adapter can be used as part of a plumbing arrangement intended to reduce oil circuit restriction.

Actual pressure drop and engine oil pressure depend on the cooler, fittings, hose routing, oil temperature, and complete lubrication system.

Fitment & Compatibility

GM LS Applications:

• Mounting Interface: Requires Compatible Existing Oil Cooler Connection Provisions
• Oil Cooler Plumbing: Uses Compatible -10 AN Oil Cooler Lines
• Header Clearance: Verify Clearance with Installed Headers and Surrounding Components
• Oil Temperature Sensor: No Sensor Mounting Provision Is Included

Contact Katech Technical Sales at to confirm compatibility with your engine, mounting interface, headers, and sensor requirements before ordering.

Important Installation Notes

• Mounting: Use the Specified Bolts and Correct Production Gasket
• Oil Flow: Follow the Labeled IN and OUT Markings and Confirm the Complete Flow Path
• Hose Routing: Keep Oil Lines Clear of Exhaust Heat, Moving Components, Sharp Edges, and Pinch Points
• Clearance: Verify Adapter, Fitting, and Hose Clearance After Installation
• System Verification: Follow the Appropriate Oil Filling and Priming Procedure, Check for Leaks, and Verify Oil Pressure

Why Choose Katech

The Katech LS Billet Oil Cooler Adapter combines billet construction with compact packaging and clearly identified connections. Its design considers the wiring and headers surrounding the installation area, helping builders integrate external oil cooler plumbing into compatible LS applications.

Engineered and manufactured by Katech, the adapter includes the two fittings needed to connect compatible -10 AN oil cooler lines.
