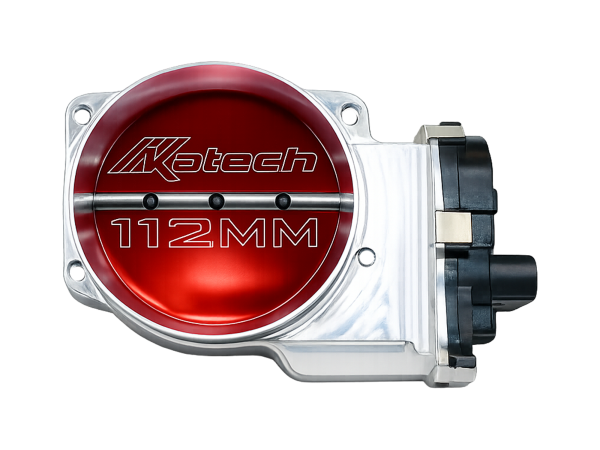

Katech LS 112MM Clear Anodized Billet Throttle Body

Katech LS 112MM Clear Anodized Billet Throttle Body

Clear Anodized Billet Construction for Compatible Kong 2650 Supercharger and Custom Intake Builds.

The Katech LS 112MM Clear Anodized Billet Throttle Body features GM electronics, a 112mm throttle blade, and a 5-axis CNC-milled inlet. Its billet aluminum housing provides additional pulley clearance in compatible supercharged configurations.

Designed for GM Gen III and Gen IV LS builds using a compatible Kong 2650 Supercharger or custom intake manifold with the specified bolt pattern. Engine calibration is required.

Features & Benefits

• Clear Anodized Finish
• Billet Aluminum Construction
• 112MM Throttle Blade
• 5-Axis CNC-Milled Inlet
• GM Electronics
• Additional Pulley Clearance in Compatible Supercharged Applications

Technical Specifications

• Product Type: Electronic Throttle Body
• Body Material: Billet Aluminum
• Finish: Clear Anodized
• Throttle Blade Diameter: 112MM
• Electronics: GM Electronics
• Bolt Pattern: 126MM x 70MM (4.961 x 2.756 Inches)
• Engine Generation: Compatible GM Gen III and Gen IV LS Builds

What's Included

• One Katech LS 112MM Clear Anodized Billet Throttle Body

Intake & Supercharger Fitment

• Compatible Kong 2650 Supercharger Configurations
• Custom Intake Manifolds with the Specified 126MM x 70MM Bolt Pattern

Confirm the inlet opening, mounting arrangement, and electrical compatibility before ordering. The correct bolt pattern alone does not establish complete fitment with a custom intake manifold.

Installation & Compatibility Notes

• Verify Mounting Pattern and Sealing Surface Compatibility
• Confirm Adequate Throttle Blade Clearance
• Check Electrical Connector and Intake Connection Compatibility
• Verify Supercharger Pulley and Belt Drive Clearance Where Applicable

Why Choose Katech

The Katech LS 112MM Clear Anodized Billet Throttle Body combines a CNC-milled inlet and GM electronics with a defined mounting pattern for specialized LS applications. Its clear anodized finish offers an aluminum appearance for builders coordinating their intake and engine components.

For Kong 2650 Supercharger and custom intake compatibility questions, contact .
