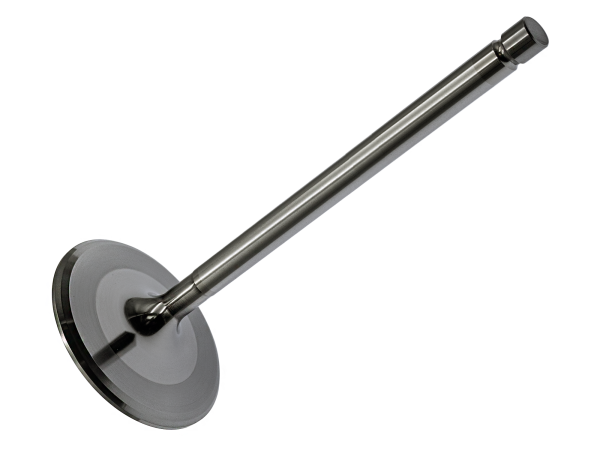

Katech Gen V LT1/LT4/LT5 2.130" Titanium Molybdenum Intake Replacement Valve

Katech Gen V LT1/LT4/LT5 2.130" Titanium Molybdenum Intake Replacement Valve

Individual Titanium Intake Valve for Compatible Gen V LT Cylinder Head Assemblies.

The Katech Gen V LT1/LT4/LT5 2.130" Titanium Molybdenum Intake Replacement Valve features titanium construction, a Chrome Nitride-coated tip, and a back-cut stem with molybdenum coating. It provides an individual service component for compatible LT1, LT4, and LT5 intake valvetrain packages.

Application Requirements: The non-steel tip design requires a compatible lash cap. Katech recommends use with bronze valve guides.

Features & Benefits

• Lightweight Titanium Construction
• Chrome Nitride-Coated Tip
• Back-Cut Stem with Molybdenum Coating
• Individual Replacement Component for Compatible LT Intake Applications

Technical Specifications

• Product Type: Replacement Intake Valve
• Engine Applications: Compatible Gen V LT1, LT4, and LT5 Cylinder Heads
• Head Diameter: 2.130 Inches
• Overall Length: 5.200 Inches
• Material: Titanium
• Valve Weight: 83.8 Grams
• Coatings: Chrome Nitride Tip Coating and Molybdenum Stem Coating
• Tip Configuration: Non-Steel

What's Included

• One Intake Replacement Valve — Sold Individually

Lash caps, valve guides, seals, springs, retainers, and valve locks are not included.

Engine Fitment

• GM Gen V LT1
• GM Gen V LT4
• GM Gen V LT5

Confirm compatibility with the cylinder head and existing intake valvetrain configuration. Verify valve dimensions and supporting components before selecting a replacement.

Installation & Compatibility Notes

• Use a Compatible Lash Cap with the Non-Steel Valve Tip
• Bronze Valve Guides Recommended
• Verify Valve Dimensions and Valve Seat Compatibility
• Check Valve Guide Clearance for the Selected Valve Material and Coatings
• Confirm Valve Lock, Retainer, and Valve Seal Compatibility
• Check Spring Installed Height and Spring Pressures
• Verify Coil Bind and Retainer-to-Seal Clearance at Maximum Valve Lift
• Check Piston-to-Valve Clearance

Why Choose Katech

The Katech Gen V LT1/LT4/LT5 2.130" Titanium Molybdenum Intake Replacement Valve supports servicing a compatible cylinder head one component at a time. Its specified diameter, length, and weight help builders match the valve to the existing intake assembly.

For intake valve, lash cap, and bronze guide compatibility questions, contact .
