Katech 2010–2015 Camaro Heater Hose Relocation Kit

Katech Gen 5 Camaro Heater Hose Relocation Kit

Parker Rubber Heater Hoses with Clamps and Protective Insulators for Revised Hose Routing

The Katech Gen 5 Camaro Heater Hose Relocation Kit provides Parker rubber heater hoses, stainless steel clamps, and protective rubber insulators for compatible 2010–2015 Chevrolet Camaro applications.

The supplied hoses route through the passenger-side strut tower framing, connecting the water pump to the firewall heater core. Protective insulators cover body seams at potential hose contact points to help prevent chafing.

Features & Benefits

• Parker Rubber Hose: High-Quality Heater Hose Construction
• Two Hose Sizes: Includes One 5/8-Inch Hose and One 3/4-Inch Hose
• Stainless Steel Clamps: Four Hose Clamps Included
• Protective Insulators: Two Slit Rubber Protectors for Body Seam Contact Areas
• Revised Hose Routing: Routes Heater Hoses Through the Passenger-Side Strut Tower Framing

Technical Specifications

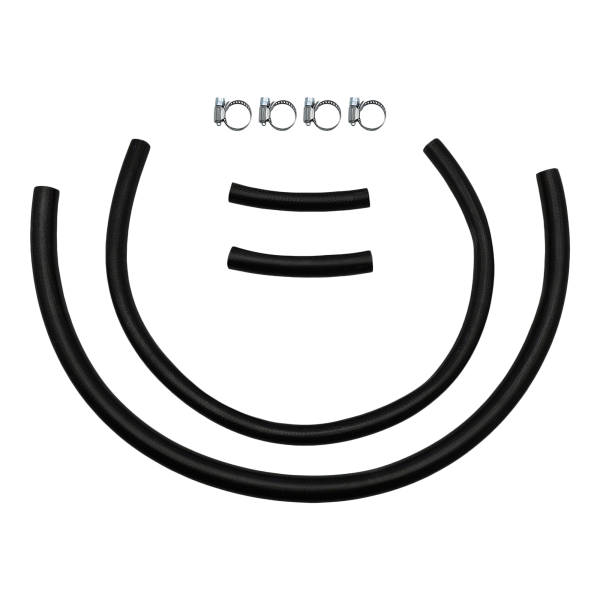

What's Included

• One 5/8-Inch Parker Rubber Heater Hose
• One 3/4-Inch Parker Rubber Heater Hose
• Four Stainless Steel Hose Clamps
• Two Slit Rubber Anti-Chafing Protectors

Vehicle Fitment

Chevrolet:

• 2010–2015 Camaro: Gen 5 Platform; Confirm Compatibility with Your Engine and Heater Hose Configuration Before Ordering

Important Installation Notes

• Preparation: Allow the Engine to Cool and Drain the Cooling System as Directed by the Installation Instructions
• Access: Remove the Plastic Intake Manifold Cover to Expose the Factory Heater Lines
• Factory Hose Removal: Avoid Applying Excessive Force to the Heater Core Connections
• Hose Routing: Route Both Hoses Through the Passenger-Side Strut Tower Framing Without Kinks
• Protective Insulators: Fit the Slit Rubber Protectors Over Body Seams Wherever the Heater Hoses Could Make Contact
• Clamp Position: Position Clamps so They Can Be Tightened Within the Limited Firewall Access Area
• Cooling System: Refill and Bleed According to the Vehicle's Service Procedure
• Final Inspection: Check Hose Clearance, Clamp Security, and Coolant Connections for Leaks

View Katech Gen 5 Camaro Heater Hose Relocation Kit Installation Instructions

Why Choose Katech

The Katech Gen 5 Camaro Heater Hose Relocation Kit combines the two required hose sizes with stainless steel clamps and protection for body seam contact points. The supplied instructions explain the revised routing and placement of the protective insulators.

Katech Technical Sales can help confirm whether the kit is appropriate for your Camaro's engine and heater hose arrangement.
