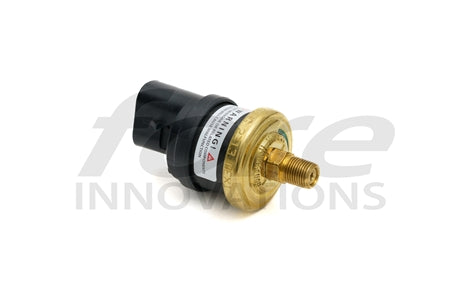

Honeywell Vacuum Switch
$81.00
In stockReady to ship.
Couldn't load pickup availability
Honeywell Vacuum Switch
Regular price
$81.00
Regular price
Sale price
$81.00
Unit price
per
Honeywell Vacuum Switch
$81.00
- Aerospace grade trigger switch for secondary pumps
- Gold plated internal contacts and Kapton diaphragm ensure reliable long term service
- Preset for 10inHg actuation (normally closed, OFF/OPEN with more than 10 inHg vacuum)
- 1/8 NPT male interface is compatible with our push on boost/vacuum hose and fittings
- Optional sealed Aptiv (Delphi) Metri-Pack 280 connector and 15 feet of 18 gauge bonded wire
- Optionally available black anodized barb fittings for 1/4" [6mm] or 3/16" [5mm] inside diameter hose
INSTALLATION AND USE
- For professional installation only
- Must be used in conjunction with a relay or load handling device (such as FC3)
- Mount to avoid engine vibration. Do not mount directly on engine, intake/tubing, supercharger, etc.
- All pumps will run during prime and during engine start. Ensure pump load/battery/starter/charging system are adequate.
- Engine must pull more than 12inHg vacuum during idle and cruise, otherwise secondary pumps will run continuously.
- Consider the Honeywell Pressure Switch if the engine pulls inadequate vacuum.
