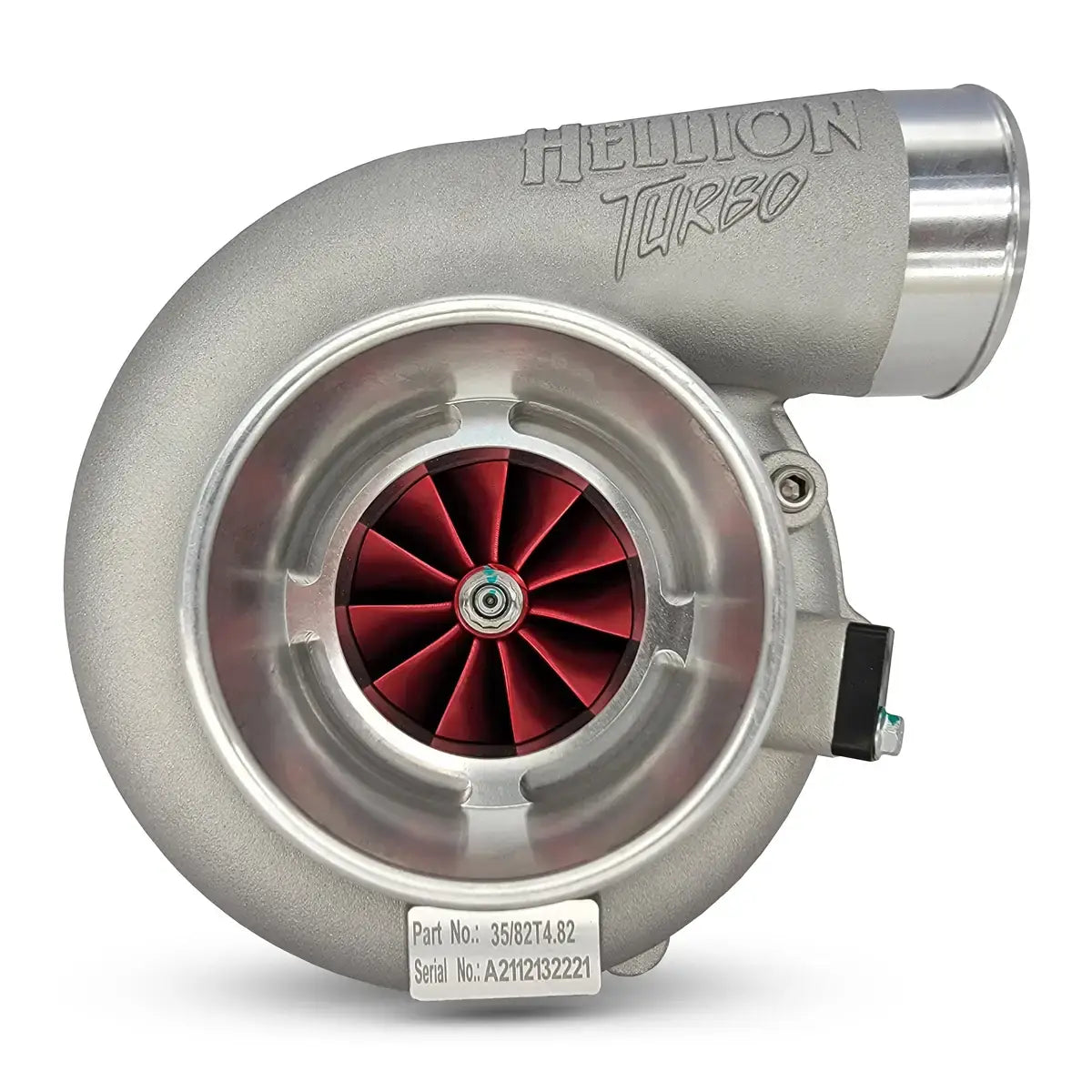

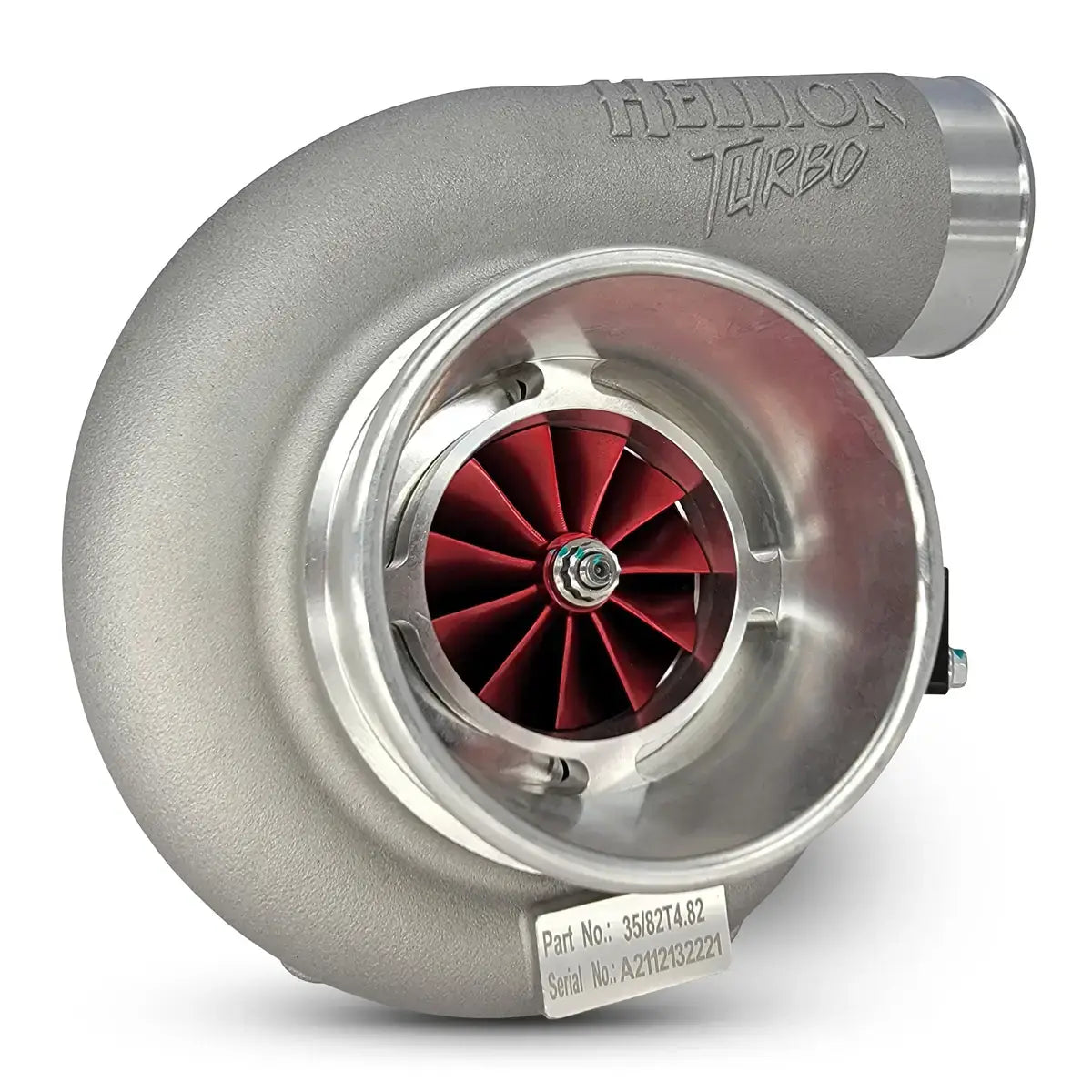

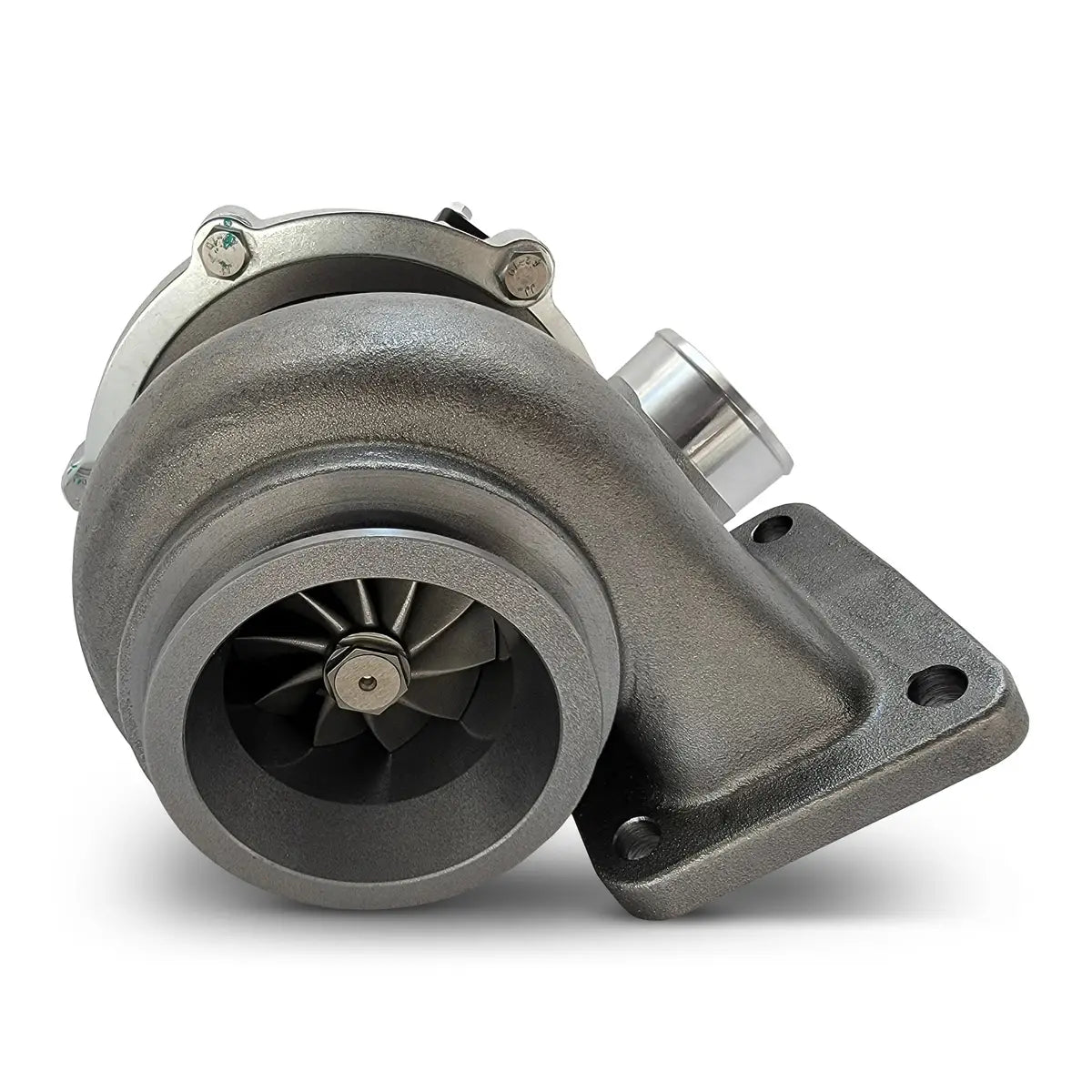

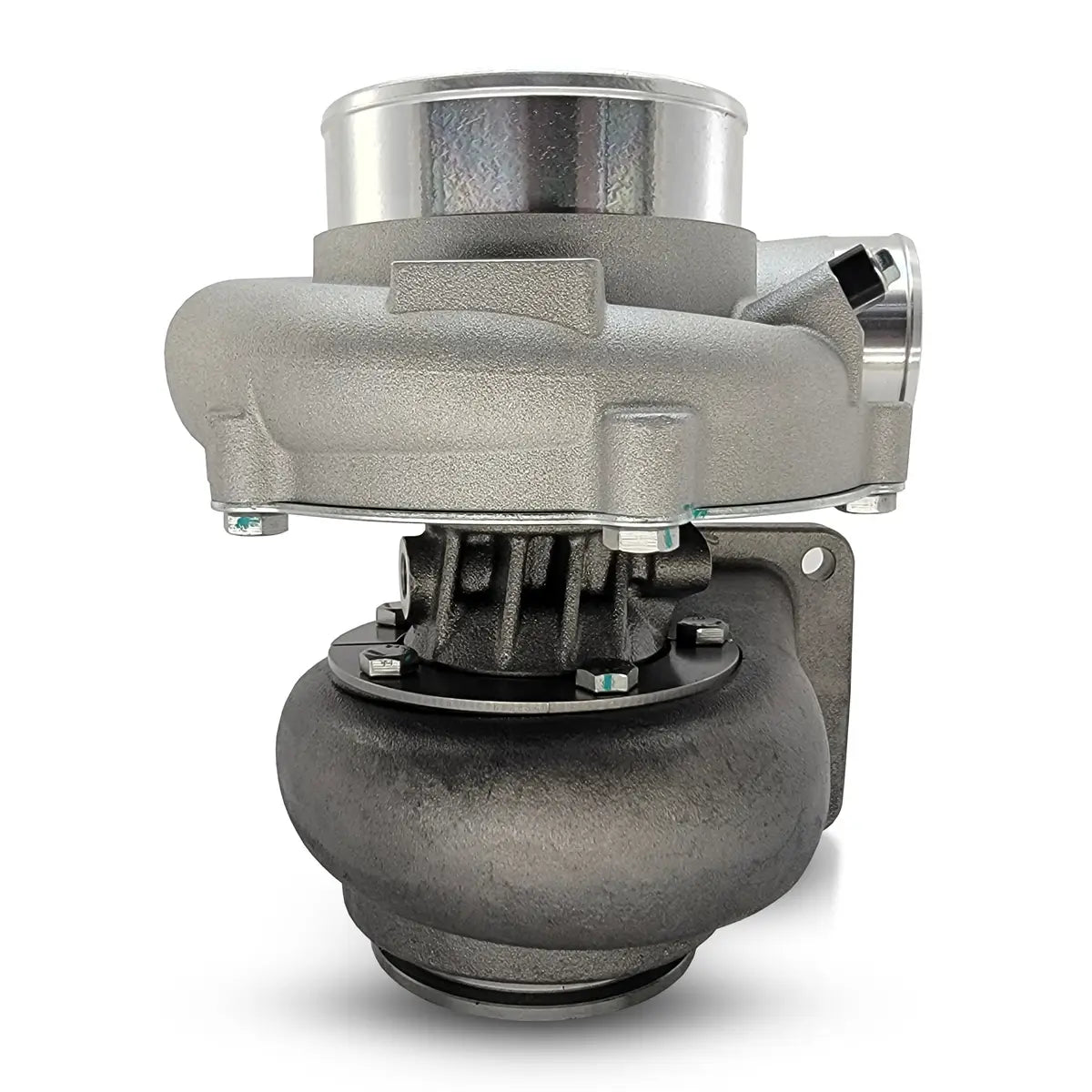

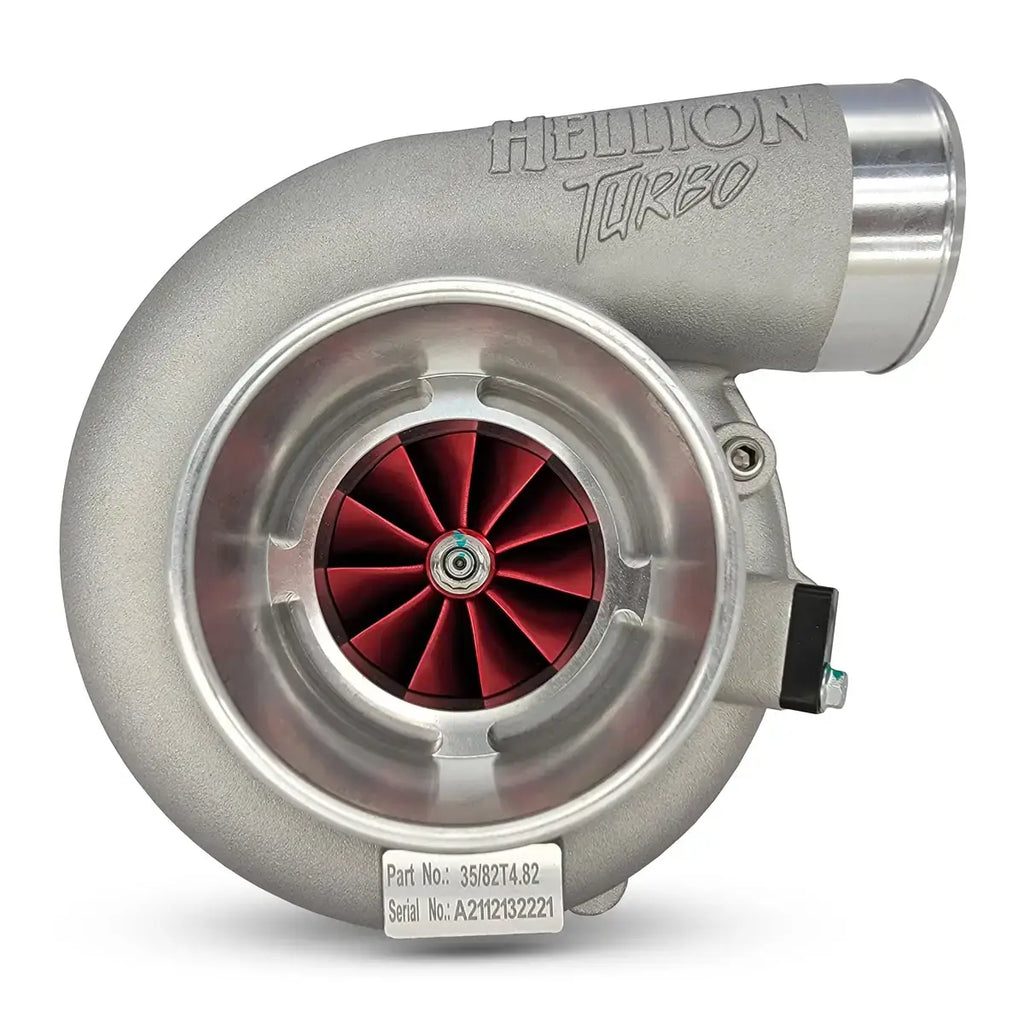

Hellion 62/62B T4 Turbocharger

Hellion has released the new series of performance turbochargers with the B series. This lightweight turbo features a dual ball bearing air cooled center section and contains the latest affordable technology available.

B Series Compressor Features

• 11-blade billet compressor wheel that offers an affordable performance upgrade from our base cast wheel units.
• 4” inlet and 2.5” outlet compressor cover is modernized, enlarged and streamlined to efficiently process the increased flow. Easily interchanged with other common turbos of this frame size – with increased performance.
• Integrated speed sensor port.
• Modernized dual ball bearing air cooled iron bearing housing with integral backplate to resist compressor back plate deflection under heavy loads.

B Series Turbine Features

• High-flow 62mm turbine wheel and industry standard high performance turbine housing to maximize the inlet and outlet exhaust flow.
• 4-bolt inlet / 3″ v-band outlet / .81 A/R single scroll cast iron T4 turbine housing.
