GT-R R35 L2 System (dual pump)

1200+ whp, comprehensive fuel system upgrade that routes fuel rails in series, and regulates after the rails with our ceramic/stainless adjustable boost referenced fuel pressure regulator. All premium high end components with minimal hose routing keep engine compartment clean while providing stable and reliable fuel delivery to your injectors. E85 compatible with appropriate fuel pumps and stainless filtration element.

• Capable of 1200+ whp
• Rails routed in series, post regulated

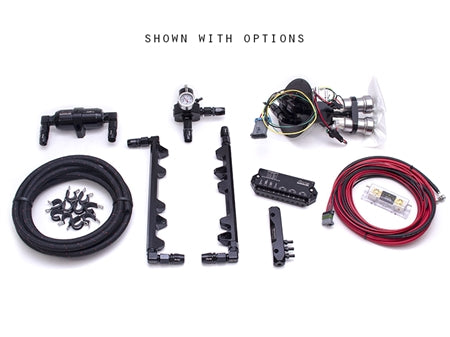

INCLUDES

• GTR-R35 Fuel Pump Module (dual pump)
• GTR-R35 Fuel Rails
• F2i fuel pressure regulator
• 88mm Inline Fuel Filter
• FCV Checkvalve
• All fittings, hose, and hardware necessary to complete a typical installation

-30 feet of fuel line (your choice of Startlite or PTFE)
-Qty 10, billet compression style hose ends
-Qty 3, billet straight AN to o-ring fittings
-Qty 7, billet low profile 90 degree AN to o-ring fittings
-Qty 1, billet o-ring plug
-Qty 2, billet fuel rail extensions
-Qty 10, 10 hose straps with self drilling stainless mounting screws

INSTALLATION NOTES:

• EGR delete is suggested for mounting filter vertically inside battery box (best known location)
• Re-calibration required
• Hose routing and filter mounting is ultimately up to installer, drilling is required to mount filter bracket and regulator
• Cutting inside engine compartment may be required to route fuel hoses
• OEM feed/return lines must be removed to route aftermarket fuel lines
• Fittings are provided for typical installations, with regulator mounted on passenger/rear of engine compartment and filter inside battery box. Depending on engine compartment customization and preference of the installer/owner, additional [angled] fittings may be required to complete installation.
