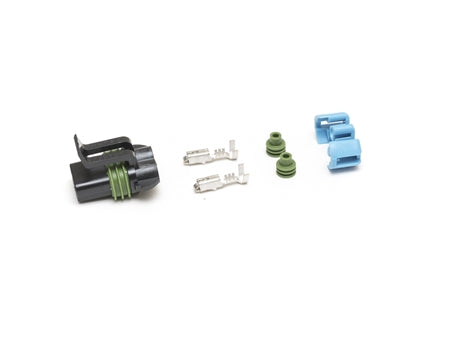

Delphi Sealed 2 Pin Female Connector

Unassembled Delphi / Aptiv Metri Pack 280 series 2 pin female connector. The installer must have appropriate tools to assemble. Use on PVC/XLPE/PTFE 12-14 AWG wire or PVC/XLPE insulated 18-20 AWG wire by choosing the appropriate seal/terminal option. Best practice is to use this connector (female terminals) on the power supply (non-load) side. Use outside fuel tank only.


Two different seal sizes are available, depending on insulation thickness. Choose as indicated below:

Blue: 3.45-4.30mm, use with the 12-14 AWG PVC or XLPE insulated wire we offer
Gray: 2.03-2.85mm, use with the 12 AWG PTFE insulated wire, or 18-20 AWG PVC or XLPE insulated wire



The following tools are acceptable for assembly:

• Delphi-Packard 12155975
• Waytek #533
• Sargent 3187CT

Maximum order quantity THREE per order. If you need larger quantities, please contact an electrical parts distributor.
