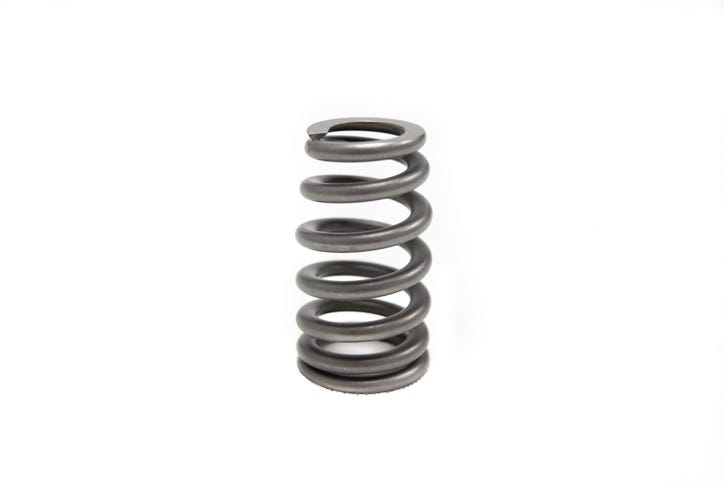

BTR LS6 BEEHIVE SPRING - .560 LIFT - SOLD INDIVIDUALLY - SP011-1

BTR LS6 BEEHIVE VALVE SPRING - .560" LIFT - SOLD INDIVIDUALLY - SP011-1

BTR's .560" lift LS6-style valve springs gives you all of the performance of the venerable OEM LS6 valve spring (GM part # 12499224 or 12586484) at a fraction of the cost. These springs pair perfectly with our truck series camshafts and are also a great option for replacing worn out or broken springs in stock applications.

 • 100 lbs @ 1.800”
 • 285 lbs @ 1.240”
 • Coil bind @ 1.150”

NOTE - BTR does not recommend single wire conical or beehive springs with roller rockers due to the extra mass causing loss of valve train stability, or the use of a higher ratio rocker as it could possibly cause a coil bind issue.
