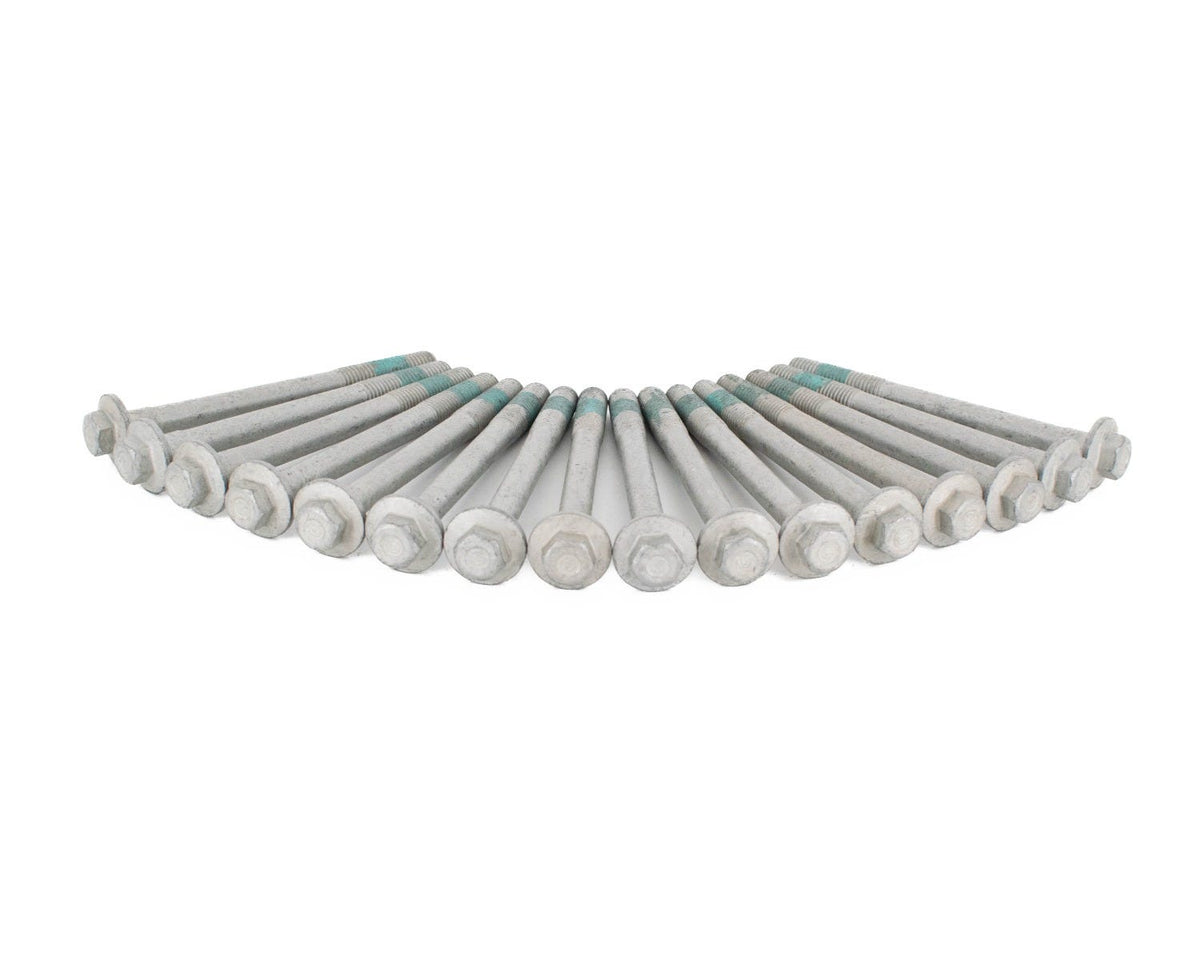

BTR GEN V LVX V6 HEAD BOLT KIT

BTR GEN V LVX V6 HEAD BOLT KIT

The Brian Tooley Racing Gen V LVX V6 Head Bolt Kit provides OEM-grade, reliable clamping force for GM Gen V LT-based V6 engines (such as the 4.3L LV3).

Product Overview
Application: GM Gen V LT V6 engines (LV3 / LVX applications)
Design: Torque-To-Yield (TTY) factory-style replacement bolts
Quality: OEM Tier-1 supplier grade fasteners
Coverage: Complete set to service the entire engine

Key Features
Factory Clamp Load: Engineered to meet strict GM factory torque specifications for proper head gasket sealing.
Tier-1 Quality: Manufactured by the same primary suppliers trusted by automakers.
Single-Use Reliability: Designed as torque-to-yield fasteners that ensure exact stretch and tension upon initial installation.

M12 Main Head Bolts (Tightened inside-out in a cross-pattern)
Pass 1: Torque all M12 bolts to 22 lb-ft (30 Nm) in sequence.
Pass 2: Rotate all M12 bolts 90 degrees in sequence.
Pass 3: Rotate the center primary bolts an additional 90 degrees, and the outer M12 end bolts an additional 70 degrees (refer to your specific GM manual sequence to distinguish internal end-bolts 9 and 10 from the main center cluster).

M8 Secondary Outer Bolts
Final Pass: Tighten all M8 corner bolts to 22 lb-ft (30 Nm)
