PWR Universal Drift Radiator

Overview

The PWR Universal Drift Radiator/Module delivers professional-grade cooling for high-power drift cars. Designed with a dual-pass core and AN-20 ports, it ensures maximum coolant flow, superior heat rejection, and reliable performance under extreme driving conditions. Built and TIG-welded in the USA, this radiator is engineered to handle the rigors of aggressive drifting, repeated slides, and track-level abuse.

Available in multiple configurations, this radiator can be tailored to your build:

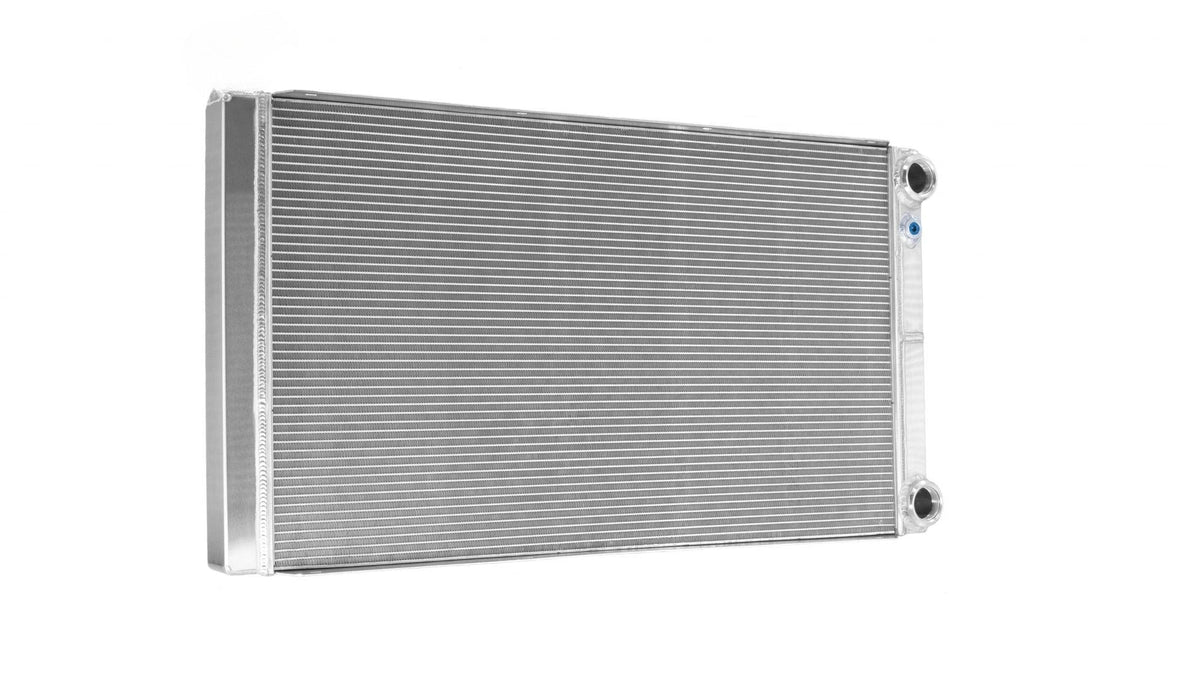

• 31.5in x 18.5in Radiator Only — bare core for custom fan or mounting setups

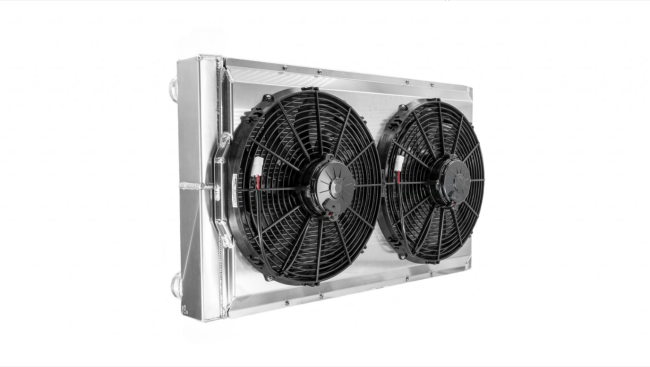

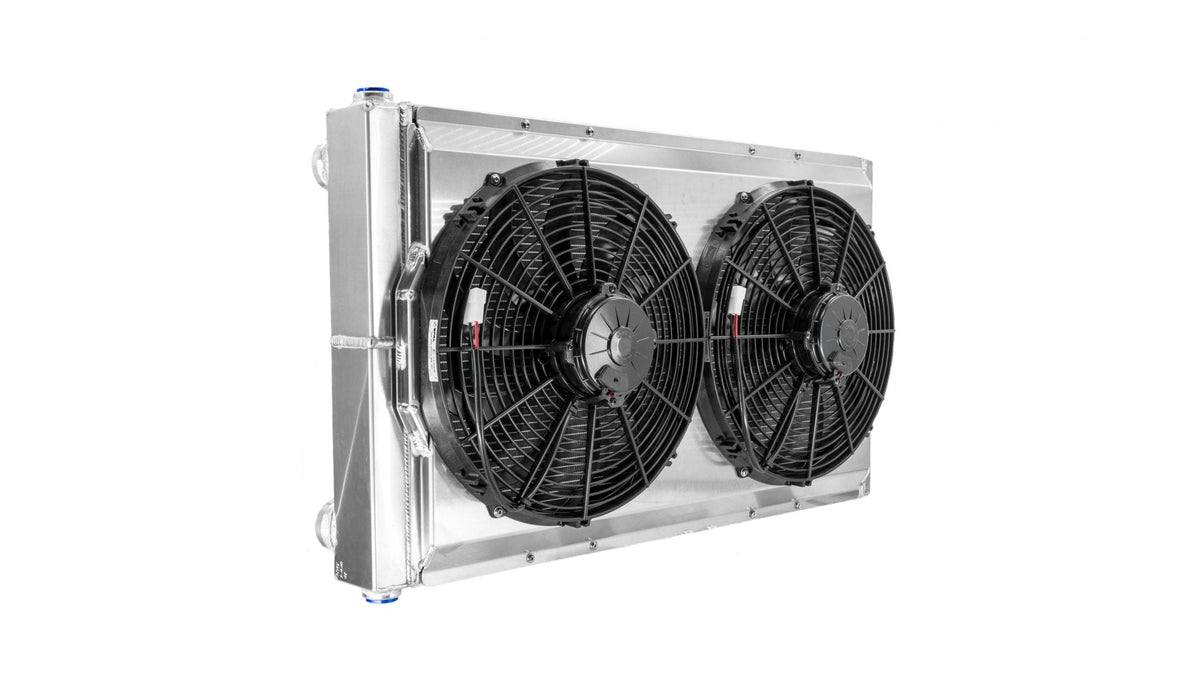

• 31.5in x 18.5in Radiator + Brushed Fans — dual 14” SPAL brushed fans for a combined 3728 CFM of airflow

• "Small Dog" 27.5in x 18.5in Radiator + Brushless fans — dual 12” SPAL brushless fans for higher efficiency, lower draw, and extended motor life

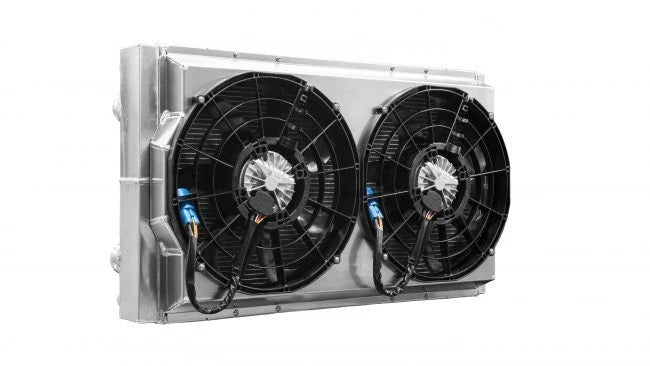

• "Big Dog" 31.5in x 18.5in Radiator + Brushless Fans — dual 14” SPAL brushless fans for higher efficiency, lower draw, and extended motor life

Key Features

High-Efficiency Cooling Core

• Dual-pass design for maximized heat transfer

• AN-20 female inlet/outlet ports for unrestricted flow

• AN-12 drain ports with included plugs for easy draining in any mounting position

• Rolled dimple tube and louvered R-fin technology for superior heat rejection

Premium Construction

• Handcrafted and professionally TIG-welded in the USA

• Built to withstand vibration, heat, and abuse common in drift and track environments

• Universal fitment compatible with a wide variety of chassis

Fan Options

• Brushed Fans: High-performance SPAL 14” brushed fans, robust and reliable for continuous use

• Brushless Fans: SPAL 14” brushless fans for reduced electrical load, longer life, quieter operation, and higher CFM

• Fans can be installed or run independently depending on configuration

Why Choose PWR

Designed with decades of motorsport experience, the PWR Universal Drift Radiator Module provides the cooling advantage your build deserves. It maintains lower coolant temperatures, reduces heat soak, and ensures consistent performance under extreme conditions. Whether you are running a bare core for custom setups or the full package with brushed or brushless fans, PWR cooling technology delivers unmatched reliability and efficiency.

Important Notes

• We do not recommend coolant lines below AN-20. Smaller lines restrict flow and reduce cooling performance.
