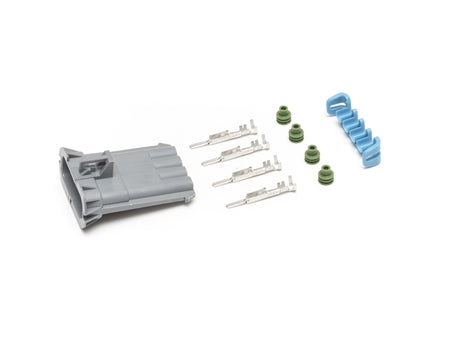

Delphi Sealed 4 Pin Male Connector

Unassembled Delphi / Aptiv Metri Pack 280 series 4 pin male connector. Installer must have appropriate tools to assemble. Use on 12-14 AWG wire. Best practice is to use this connector (male terminals) on the load (non-power supply) side. Use outside fuel tank only.

Two different seal sizes available, depending on insulation thickness. Choose as indicated below:

Blue: 3.45-4.30mm, use with the 12 AWG PVC insulated wire we offer
Green: 2.03-2.85mm, use with the 12 AWG PTFE insulated wire we offer

The following tools are acceptable for assembly:

• Delphi-Packard 12155975
• Waytek #533
• Sargent 3187CT

Maximum order quantity ONE per order. If you need larger quantities, please contact an electrical parts distributor.
