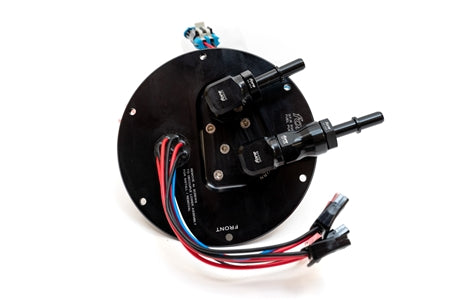

GT-R R35 Triple Pump Module

FITMENT:
Nissan GT-R R35
SPECIFICATIONS:
Feed Port: -10 o-ring
Return Port: -8 o-ring
Pump Types: 36mm, 39mm, and 39/50mm pump bodies, call for details

• Supports over 1600 all wheel horsepower

• E85 and race fuel compatible (see pump manufacturer recommendations on fuel compatibility)

• Requires aftermarket fuel feed and return lines

• Retains OEM level sender, temperature sensor, and transfer function

• O-ring pump seal eliminates in-tank fuel hose to completely eliminate failures in E85 and race gas applications

• High current hermetic wire seal completely eliminates the possibility of fuel smells and leaks

• 12 gauge power wires ensure maximum pump performance

• Polymer pump support minimizes pump noise and eliminates electrolysis

• Transfers without restrictor orifice on return discharge, ensuring accurate fuel pressure under any output or consumption conditions

• Must use upgraded feed/return fuel lines.

• External 10 micron filtration must be added (this is included in all our complete fuel systems for the GT-R)

• Choose FC3 to stage pumps using OEM triggers (run one pump full time)

• OEM transfer function is retained (which continuously transfers fuel to the pump side) but our module eliminates the restrictive "basket" in the OEM fuel pump assembly. We recommend 1/2 tank minimum for track use.
