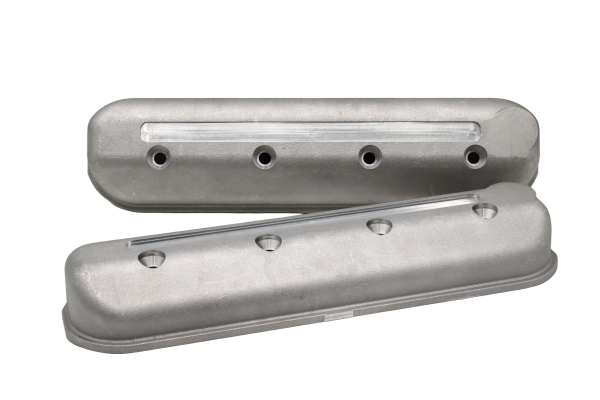

Katech Gen III & IV LS Dry Sump Slotted Raw Cast Aluminum Valve Covers

Katech Gen III & IV LS Dry Sump Slotted Raw Cast Aluminum Valve Covers

Raised Cast Aluminum Covers with Machined Insert Grooves for a Personalized LS Engine Appearance.

The Katech Gen III & IV LS Dry Sump Slotted Raw Cast Aluminum Valve Covers feature machined grooves that accept compatible Katech Engraved Logo Valve Cover Inserts, sold separately. Their raw finish provides an uncoated aluminum appearance, while the raised profile adds clearance for many aftermarket valve springs and rocker arms.

Katech designed the cover system to allow removal of the assembly without first removing the ignition coils. This dry sump configuration has no oil fill cap provision.

Features & Benefits

• Cast Aluminum Construction
• Raw, Uncoated Finish
• Machined Grooves Accept Compatible Valve Cover Inserts
• Raised Design Provides Clearance for Many Aftermarket Valvetrain Components
• Designed to Allow Cover Assembly Removal Without Removing the Coils
• Dry Sump Configuration Without an Oil Fill Cap Provision
• Compatible Coil Relocation Kit Available Separately

Technical Specifications

• Product Type: Valve Cover Set
• Engine Application: Compatible GM Gen III and Gen IV LS Engines
• Material: Cast Aluminum
• Finish: Raw, Uncoated
• Exterior Configuration: Slotted with Machined Insert Grooves
• Sump Configuration: Dry Sump
• Oil Fill Provision: None

What's Included

• Pair of Katech Gen III & IV LS Dry Sump Slotted Raw Cast Aluminum Valve Covers
• Valve Cover Bolts
• Valve Cover Gaskets
• Fittings

Valve cover inserts and coil relocation components are sold separately.

Engine Fitment

Designed for compatible GM Gen III and Gen IV LS engine configurations using a dry sump oil system.

Verify clearance with the installed valve springs, rocker arms, ignition components, and surrounding engine accessories before assembly.

Personalization & Coil Relocation

Compatible engraved inserts allow you to personalize the slotted covers. Katech's in-house CNC machining capabilities support custom insert engraving. Confirm insert selection and engraving options before ordering.

A compatible Katech Coil Relocation Kit positions the coils above the valve covers to make the covers and inserts more visible. Select the kit that matches your engine and coil configuration.

Explore the available powder-coated valve cover options if you prefer a coated finish. This listing is for the raw cast aluminum version.

Installation & Compatibility Notes

• Confirm Cylinder Head and Dry Sump Application Compatibility
• Verify Valve Spring and Rocker Arm Clearance
• Check Coil, Wiring, Intake, and Surrounding Component Clearance
• Use Inserts Designed for the Slotted Katech Valve Cover Configuration
• Configure the Supplied Fittings to Match the Engine's Ventilation System
• Follow the Applicable Valve Cover Tightening Specifications
• Verify Gasket Seating and Check for Oil Leaks After Installation

Why Choose Katech

The Katech Gen III & IV LS Dry Sump Slotted Raw Cast Aluminum Valve Covers provide a foundation for a personalized engine bay. The insert grooves offer customization options, while the raised profile and coil-access design address practical fitment and service needs.

For valve cover, insert, and coil relocation compatibility questions, contact .
