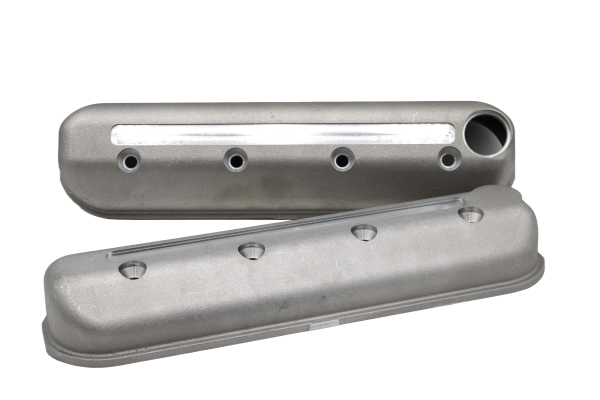

Katech Gen III & IV LS Wet Sump Slotted Raw Cast Aluminum Valve Covers

Katech Gen III & IV LS Wet Sump Slotted Raw Cast Aluminum Valve Covers

Raw Cast Aluminum Covers with Oil Fill Access and Grooves for Personalized Inserts.

The Katech Gen III & IV LS Wet Sump Slotted Raw Cast Aluminum Valve Covers combine a raised profile with machined grooves for compatible logo inserts. Their uncoated finish offers a raw aluminum appearance, while the wet sump configuration provides oil fill access.

The raised design provides additional clearance for many aftermarket valve springs and rocker arms. Katech designed the cover system to allow removal of the assembly without first removing the ignition coils.

Features & Benefits

• Cast Aluminum Construction
• Raw, Uncoated Finish
• Machined Grooves Accept Compatible Valve Cover Inserts
• Raised Profile Provides Clearance for Many Aftermarket Valvetrain Components
• Designed to Allow Cover Assembly Removal Without Removing the Coils
• Wet Sump Configuration with Oil Fill Access
• Compatible Coil Relocation Kit Available Separately

Technical Specifications

• Product Type: Valve Cover Set
• Engine Application: Compatible GM Gen III and Gen IV LS Engines
• Material: Cast Aluminum
• Finish: Raw, Uncoated
• Exterior Configuration: Slotted with Machined Insert Grooves
• Sump Configuration: Wet Sump
• Oil Fill Provision: Included

What's Included

• Pair of Katech Gen III & IV LS Wet Sump Slotted Raw Cast Aluminum Valve Covers
• Valve Cover Bolts
• Valve Cover Gaskets
• Fittings
• Katech Engraved Billet Valve Cover Oil Fill Cap

Valve cover inserts and coil relocation components are sold separately.

Engine Fitment

Designed for compatible GM Gen III and Gen IV LS engine configurations using a wet sump oil system.

Confirm clearance with the installed valve springs, rocker arms, ignition components, and surrounding engine accessories before assembly.

Personalization & Finish Options

Personalize the slotted covers with Katech Engraved Logo Valve Cover Inserts, sold separately. Katech's in-house CNC machining capabilities support custom insert engraving; confirm the available options before ordering.

A compatible Katech Coil Relocation Kit positions the ignition coils above the valve covers, making the covers and inserts more visible. Select the kit that matches your engine and coil configuration.

Explore the available powder-coated valve cover options if you prefer a coated finish. This listing is for the raw cast aluminum version.

Installation & Compatibility Notes

• Confirm Cylinder Head and Wet Sump Application Compatibility
• Verify Valve Spring and Rocker Arm Clearance
• Check Coil, Wiring, Intake, and Surrounding Component Clearance
• Use Inserts Designed for the Slotted Katech Valve Cover Configuration
• Configure the Supplied Fittings to Match the Engine's Ventilation System
• Follow the Applicable Valve Cover Tightening Specifications
• Verify Gasket Seating and Check for Oil Leaks After Installation

Why Choose Katech

The Katech Gen III & IV LS Wet Sump Slotted Raw Cast Aluminum Valve Covers bring oil fill access, valvetrain clearance, and insert customization together in one package. Their design supports a personalized engine appearance while maintaining practical access for service.

For valve cover, insert, and coil relocation compatibility questions, contact .
