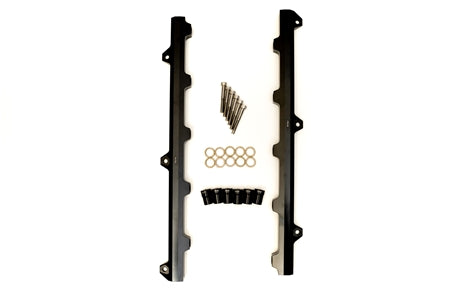

Fuel Rails - Gallardo

FITMENT: 2008-2013 Gallardo

SPECIFICATIONS

• 16mm through bore
• Port size: #8 o-ring (female)

Our Gallardo fuel rails are the finest available. We make them in house from solid billet on our Mazak 5 axis machining center. 16mm main bores ensure adequate fuel flow on the highest performing alcohol and gasoline engines. Integrated and gusseted mounting tabs ensure no deflection under high boost pressures, and #8 o-ring ports ensure easy and leak free installations. Additionally, we made these rails as short as possible to maximize clearance for hoses and fittings. Stainless steel hex key screws are included for a finishing touch and ease of installation. Available in black anodized.
INSTALLATION NOTES

• ID injectors require 14mm spacer.
• Connections to aftermarket or OEM fuel lines are required Aftermarket fuel lines (or OEM line adapter)
• Engine cover mounts are deleted.
• Spacer (i.e. washers) are required between intake and mounting tabs when running large body injectors (such as Injector Dynamics)
